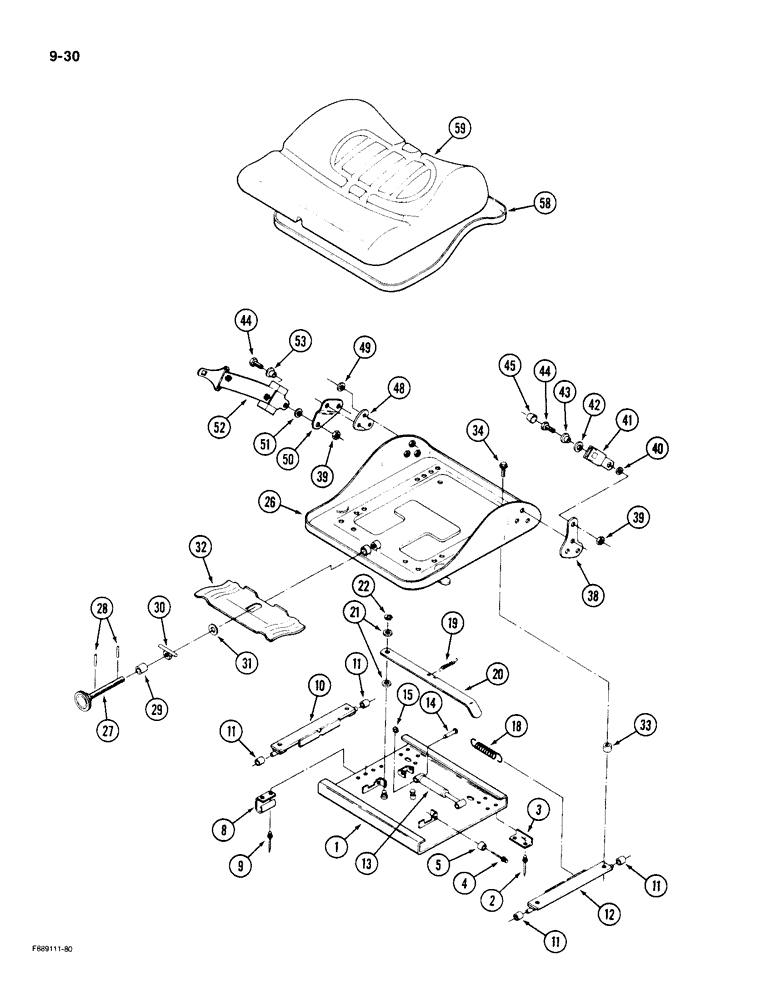

Запчасти Case IH KP-525 (9-30) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

60-1876T92

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension

1шт.

Includes: Ref. 1 - 31 on Figure 9-24, 1 - 25 on Figure 9-26, 1 - 34 on Figure 9-28, 1 - 59 on Figure 9-30 and 1 - 37 on Figure 9-32.

1шт.

60-3254T91

ISOLATOR

ASSEMBLY - lateral adjustment, Includes: Ref. 1 - 22

1шт.

1

60-3226T91

BASE

ASSEMBLY - lateral isolator, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

RIVET - pop, 3.2 x 6.2 mm

8шт.

3

NSS

NOT SOLD SEPARAT

ANGLE - bracket

4шт.

4

151-527

RIVET - pop, 4 x 12 mm Pop, 5/32" x .517"

2шт.

5

60-3231T1

BUMPER

- rubber

2шт.

8

60-3366T1

SPRING

- leaf

1шт.

9

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

2шт.

10

60-3227T1

BRACKET

- isolator, right

1шт.

11

60-3228T1

NEEDLE BEARING

- needle roller

4шт.

12

60-3229T1

BRACKET

- isolator left

1шт.

13

60-3230T91

SHOCK ABSORBER

ASSEMBLY - seat, Includes: Ref. 14 & 15

1шт.

14

60-3233T1

PIN

- hex grooved

2шт.

15

40-1182

CIRCLIP,M6

WASHER - retaining

2шт.

18

60-3232T1

SPRING

- lateral isolator return

2шт.

19

60-3234T1

SPRING

- lever return

1шт.

20

60-3235T91

LEVER ASSY.

LEVER ASSEMBLY - lateral isolator locking, Includes: Ref. 21 & 22

1шт.

21

40-1183

WASHER

- flat, 10 mm

2шт.

22

40-1155

CIRCLIP,M10

RING - snap, 9 mm

1шт.

26

60-3236T1

PAN

- seat bottom

1шт.

27

60-1692T1

KNOB

SPINDLE - seat inclination

1шт.

28

40-1175

PIN

- spring, 3 x 18 mm

2шт.

29

60-3203T1

BUSHING

- spacer

1шт.

30

60-1687T1

NUT

- retaining

1шт.

31

40-1153

WASHER

- flat, 13 mm

1шт.

32

60-1694T1

PLATE

- support

1шт.

33

60-3237T1

BUSHING

SPACER - seat pan mounting

4шт.

34

60-1628T1

BOLT

- hex, 8 x 20 mm

4шт.

60-1657T91

SAFETY BELT

SAFETY BELT, Includes Ref. 38-53

1шт.

38

60-1668T1

BRACKET

- safety belt

1шт.

39

60-1661T1

NUT

- hex, 7/16 inch NF

2шт.

40

60-1667T1

WASHER

- flat, 11 mm

1шт.

41

60-1658T1

BUCKLE

- safety belt

1шт.

42

60-1662T1

WASHER

- spring, 15 mm

1шт.

43

60-1666T1

BUSHING

- buckle swivel

1шт.

44

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

BOLT - hex, 7/16 NF x 1 inch

2шт.

45

60-1656T1

COVER

- protective

1шт.

48

60-1638T1

LARGE PLATE

SPACER - safety belt mount

1шт.

49

60-1679T1

WASHER

- flat, 10 mm

1шт.

50

60-3367T1

ANCHOR

BRACKET - safety belt

1шт.

51

40-1159

WASHER

- flat, 13 mm

1шт.

52

60-1659T1

SAFETY BELT

SAFETY BELT, Strap

1шт.

53

60-3197T1

BUSHING

- strap swivel

1шт.

58

60-1640T1

SUPPORT

EXTRUSION - plastic

1шт.

59

60-3241T1

CUSHION

- seat bottom

1шт.
