(8-36) - REMOTE HYDRAULIC MOTOR CIRCUIT, FLOW DIVIDER ASSEMBLY, WITH 1/3 AND 2/3 FLOW

Запчасти Case IH KP-525 (8-36) - REMOTE HYDRAULIC MOTOR CIRCUIT, FLOW DIVIDER ASSEMBLY, WITH 1/3 AND 2/3 FLOW (08) - HYDRAULICS

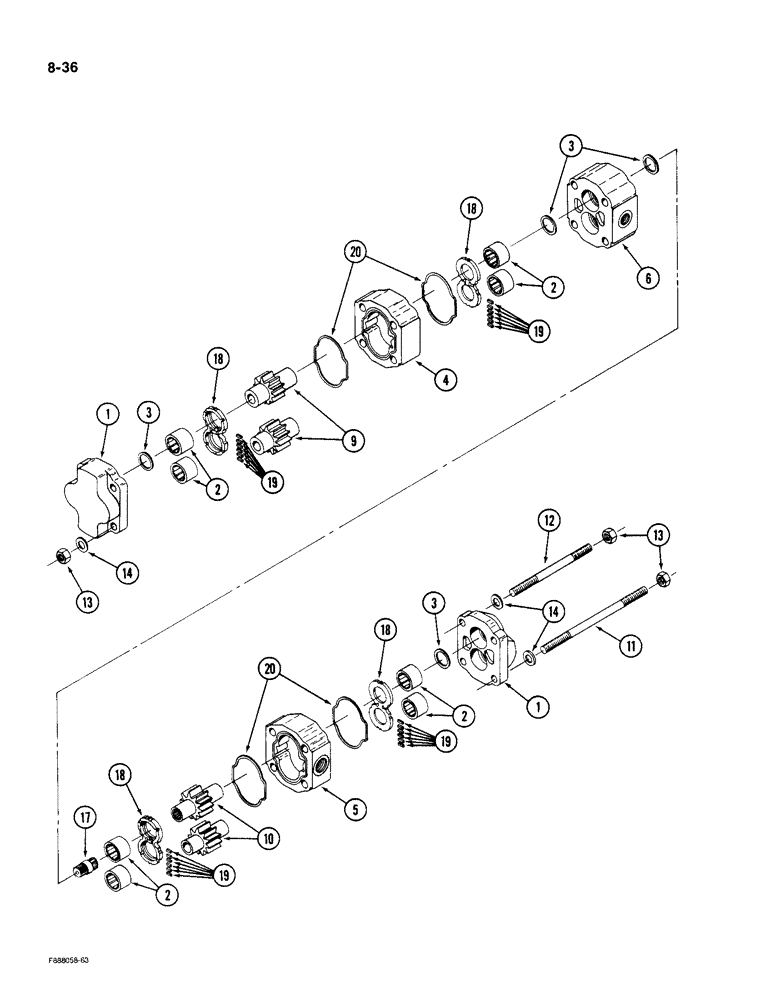

Схема запчастей Case IH KP-525 - (8-36) - REMOTE HYDRAULIC MOTOR CIRCUIT, FLOW DIVIDER ASSEMBLY, WITH 1/3 AND 2/3 FLOW (08) - HYDRAULICS
3
19
19
19
12
18
3
2
9
14
10
3
2
14
6
18
1
5
18
2
4
18
19
20
13
11
17
13
2
1
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-1190T91

DIVIDER

VALVE ASSEMBLY - flow divider (1/3 and 2/3 flow), Includes: Ref. 1 - 20

1шт.

1

18-779

PORT

COVER - end

2шт.

2

18-773

ROLLER BEARING

BEARING - roller

8шт.

3

18-771

SEALING RING

- ring

4шт.

4

18-977

HOUSING

- gear

1шт.

5

2-4170T1

HOUSING

- gear

1шт.

6

2-4169T1

CARRIER

HOUSING - bearing carrier, center

1шт.

9

18-976

GEAR-SET

GEAR SET - matched

1шт.

10

2-4168T1

GEAR SET - matched

1шт.

11

2-4165T1

STUD

- valve body, long

2шт.

12

2-4167T1

STUD

- valve body, short

2шт.

13

18-803

NUT

- hex

8шт.

14

2-4166T1

WASHER

- flat

8шт.

17

18-975

SHAFT

- connecting, gear set

1шт.

18

18-774

LARGE PLATE

PLATE - thrust

4шт.

19

18-775

SEAL

- pocket

24шт.

20

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- seal

4шт.
