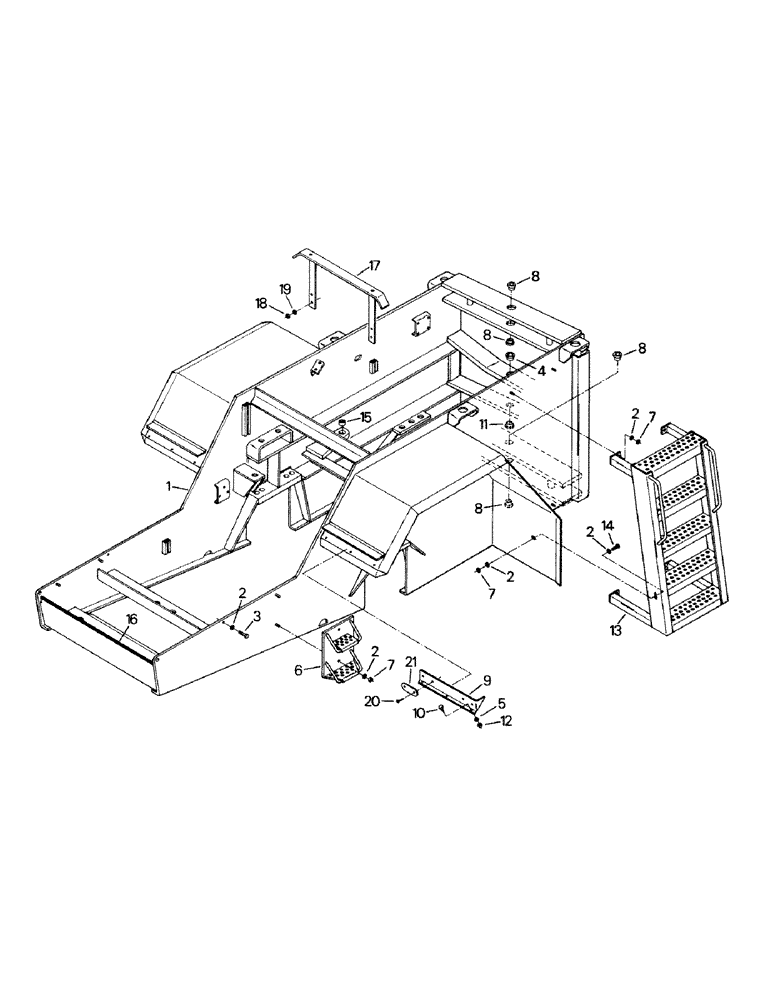

Запчасти Case IH KP-525 (06-01) - FRONT FRAME (12) - FRAME

1

Front Frame (special order item)

1шт.

2

19-109

WASHER,1/2"

16шт.

3

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew

2шт.

4

1-3884

BUSHING

1шт.

5

19-223

WASHER,1/4"

6шт.

6

51-449

STEP

1шт.

7

19-81

NUT,1/2"-13, G5

12шт.

8

47-3015

BUSHING

4шт.

9

47-3627

MOUNTING PARTS

Light Mount (Left)

1шт.

47-3626

MOUNTING PARTS

Light Mount (Right)

1шт.

10

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

6шт.

11

70-1029T1

BUSHING

1шт.

12

19-76

NUT,1/4"-20, G5

6шт.

13

47-3623

STEP

Ladder

2шт.

14

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew

2шт.

15

15-44

SPHERICAL BEARING

2шт.

16

70-2923T1

Foam

1шт.

17

47-4430

Hood Rest

1шт.

18

19-78

SPECIAL NUT,3/8"-16, G5

4шт.

19

19-107

WASHER

4шт.

20

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

8шт.

21

22-832

REFLECTOR

4шт.
