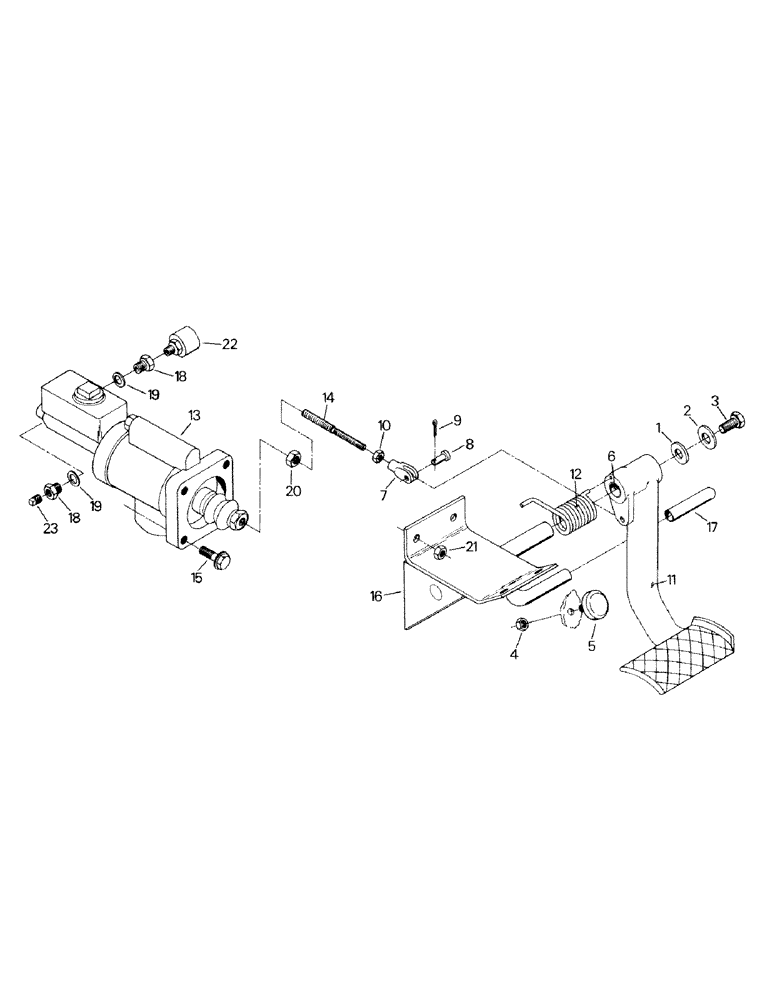

Запчасти Case IH KP-525 (01-28) - BRAKE CONTROLS (10) - CAB

1

54-294

THRUST WASHER

Thrust Washer

1шт.

2

19-109

WASHER,1/2"

1шт.

3

19-43

BOLT,1/2" - 13 x 1", Gr 5

Capscrew

1шт.

4

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

5

4-1019

STOP

1шт.

6

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

Bearing

2шт.

7

19-139

YOKE

Clevis

1шт.

8

19-145

CLEVIS PIN,3/8" x 1.06"

1шт.

9

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

10

19-91

NUT,3/8"-24, G5

1шт.

11

54-273

PEDAL

Brake Pedal

1шт.

12

11-19

SPRING

1шт.

13

Brake Master Cylinder (see fig. 5-4)

1шт.

14

47-3492

ROD

Push Rod

1шт.

15

19-5851

BOLT,Hex, 1/2" - 13 x 1", Gr 8

Flanged Capscrew

4шт.

16

47-4583

BRACKET

1шт.

17

1-3520

BUMPER

Molding

1шт.

18

31-653

PLUG

Pipe Plug

2шт.

19

1-1800

GASKET

2шт.

20

19-237

NUT,Jam, 1/2" - 20, Gr 5

Jam Nut

1шт.

21

19-653

LOCK NUT

Lock Nut

4шт.

22

22-729

SWITCH

Hydraulic Switch

1шт.

23

31-38

PLUG

1шт.
