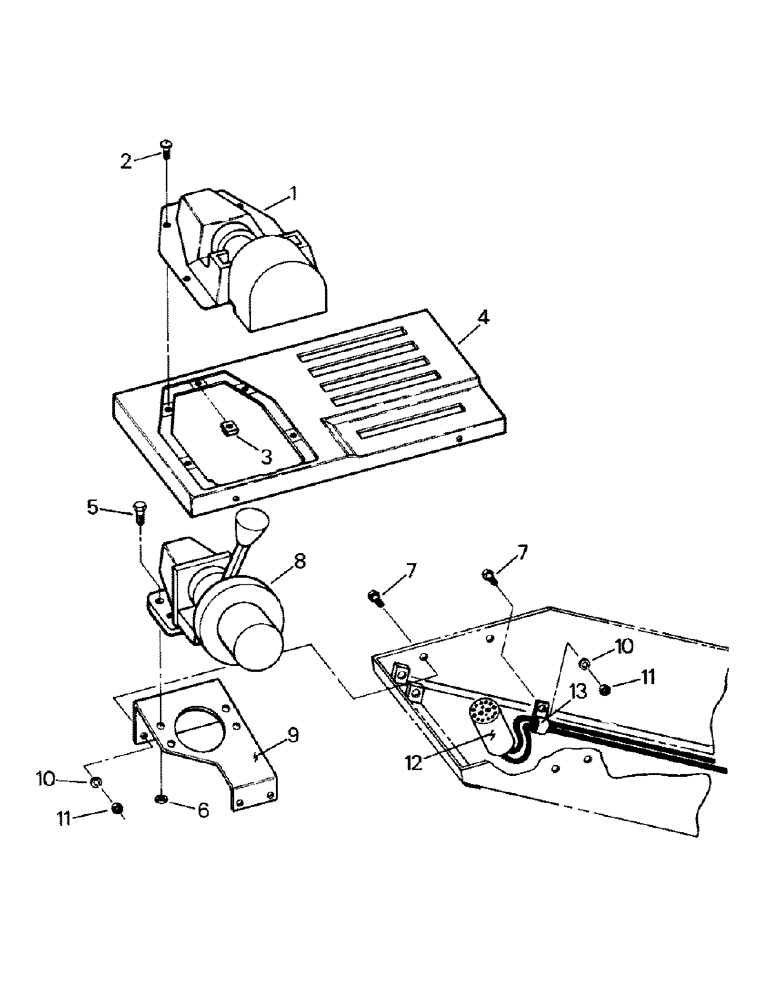

Запчасти Case IH KP-525 (01-27) - TRANSMISSION CONTROLS (10) - CAB

1

2-1148T2

COVER

Shift Control Cover

1шт.

2

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

Machine Screw

5шт.

3

19-5406

RETAINER

Nut

5шт.

4

1-9987T1

COVER

Top Console Cover

1шт.

5

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

4шт.

6

232-4136

LOCK NUT,3/8"-16, GC

4шт.

7

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

6шт.

8

90-3583T1

CASING

Shift Control

1шт.

9

1-9982

BRACKET

1шт.

10

19-115

LOCK WASHER,1/4"

1/4"

6шт.

11

19-76

NUT,1/4"-20, G5

6шт.

12

2-1031T1

HARNESS

Shift Control Wire Harness

1шт.

13

1-1292

CLIP

Clamp

2шт.

14

20-1062T2

HARNESS

Shift Control Extension Wire Harness (not shown)

1шт.
