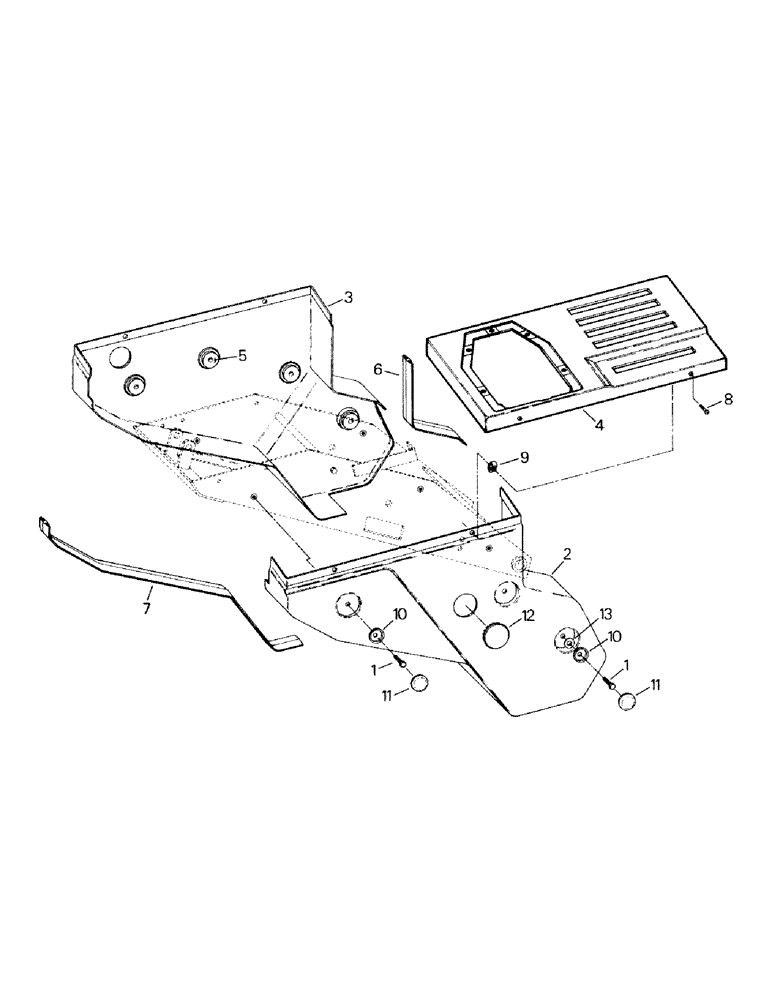

Запчасти Case IH KP-525 (01-26) - TILT CONSOLE COVER (10) - CAB

1

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew

7шт.

2

1-3745T1

COVER

Side Console Cover (Left)

1шт.

3

1-3746T1

COVER

Side Console Cover (Right)

1шт.

4

1-9987T1

COVER

Top Console Cover

1шт.

5

1-3503

WASHER

Rubber Washer

7шт.

6

1-3522

MOLDING

Rubber Seal (14")

1шт.

7

1-3521

MOLDING

Ruber Seal (28")

1шт.

8

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

Machine Screw

4шт.

9

19-5406

RETAINER

Nut

4шт.

10

1-3991

WASHER

Caplug Washer

7шт.

11

1-3990

PLUG

Caplug

7шт.

12

19-5432

PLUG

Button Plug

2шт.

13

19-700

WASHER,5/16"

3шт.
