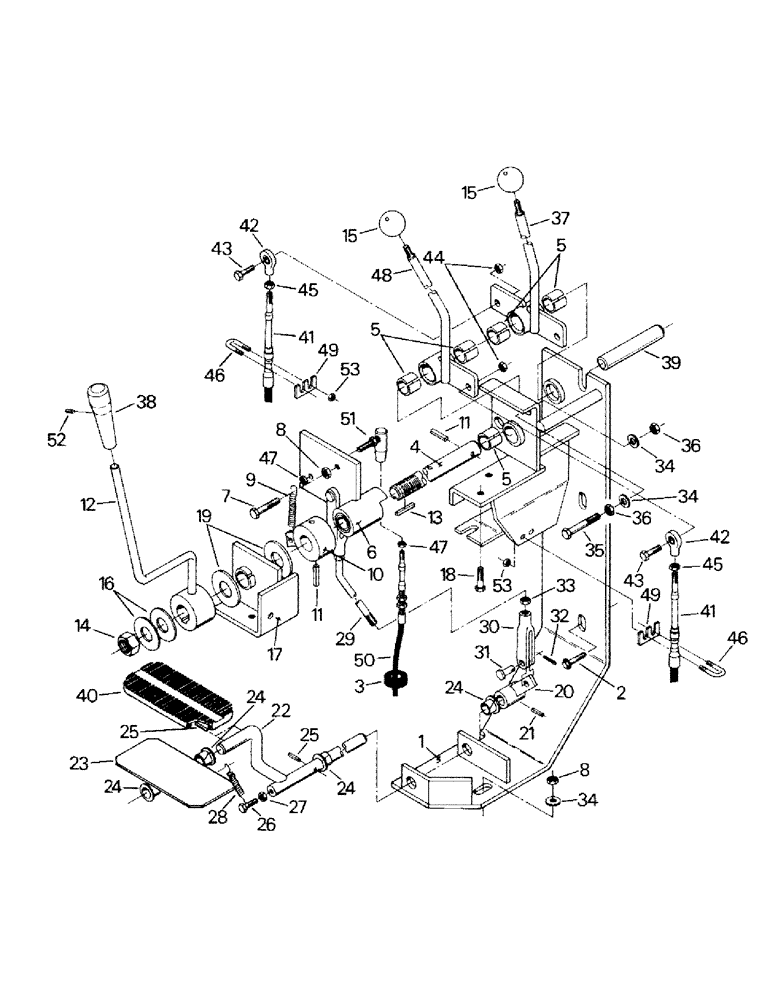

Запчасти Case IH KP-525 (01-22) - THROTTLE & TRANSFER CASE CONTROLS (10) - CAB

1

60-3265T1

MOUNTING PARTS

Mount

1шт.

2

19-957

SCREW

Tapping Screw

3шт.

3

1-1051

GROMMET

3шт.

4

4-551

SHAFT

1шт.

5

24-209

BUSHING,0.75" ID x 0.875" OD x 0.375"

Bearing

8шт.

6

4-568

LEVER

1шт.

7

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

1шт.

8

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

9

11-15

SPRING

1шт.

10

4-570

LEVER

1шт.

11

19-950

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

12

60-3288T1

LEVER

Throttle Lever

1шт.

13

19-951

KEY

1шт.

14

231-46112

LOCK NUT,3/4"-16, GB

1шт.

15

24-210

KNOB

2шт.

16

4-577

WASHER

Spring Washer

2шт.

17

4-574T3

SUPPORT

1шт.

18

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Capscrew

2шт.

19

4-566

DISC

2шт.

20

4-556

LEVER

1шт.

21

19-505

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

22

60-1476T1

SHAFT

1шт.

23

60-1475T1

PEDAL

1шт.

24

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

Bearing

4шт.

25

19-952

LOCK PIN,3/32" x 3/4", Slotted

Pin, 3/32" x 3/4", Slotted

3шт.

26

19-3061

SCREW,Hex Flg, #10 - 24 x 7/8", Gr 2

Machine Screw

1шт.

27

19-567

NUT,#10-24

1шт.

28

11-21

SPRING

1шт.

29

4-552T1

ROD

Decelerator Rod

1шт.

30

19-140

CLEVIS

2шт.

31

19-143

CLEVIS PIN,5/16" x 0.94"

2шт.

32

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

33

19-88

NUT,5/16"-24, G5

2шт.

34

19-224

WASHER,3/8", SAE

3шт.

35

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Capscrew

1шт.

36

19-295

NUT,Jam, 3/8" - 16, Gr 5

2шт.

37

60-3262T1

LEVER

Control Lever

1шт.

38

60-2050T2

KNOB

1шт.

39

24-216

SHAFT

1шт.

40

24-13

PROTECTION STRIP

Decelerator Pedal Pad

1шт.

41

2-5310T1

CABLE

Control Cable (125")

1шт.

2-6864T1

CABLE

Control Cable (98-1/2")

1шт.

42

1-3332

BALL JOINT

Rod End

2шт.

43

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

2шт.

44

19-5777

LOCK NUT

Lock Nut

2шт.

45

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

2шт.

46

19-5402

BOLT

U-Bolt

2шт.

47

19-308

NUT,#10 - 32

2шт.

48

60-3261T1

LEVER

Control Lever

1шт.

49

2-3008T1

SHIM

2шт.

50

47-3768

CABLE

Throttle Cable

1шт.

51

6-1431

BALL JOINT

1шт.

52

19-5798

SET SCREW

1шт.

53

19-509

LOCK NUT,5/16"-24, GB

4шт.

54

1-1055

SEALANT

RTV Sealant (not shown)

1шт.
