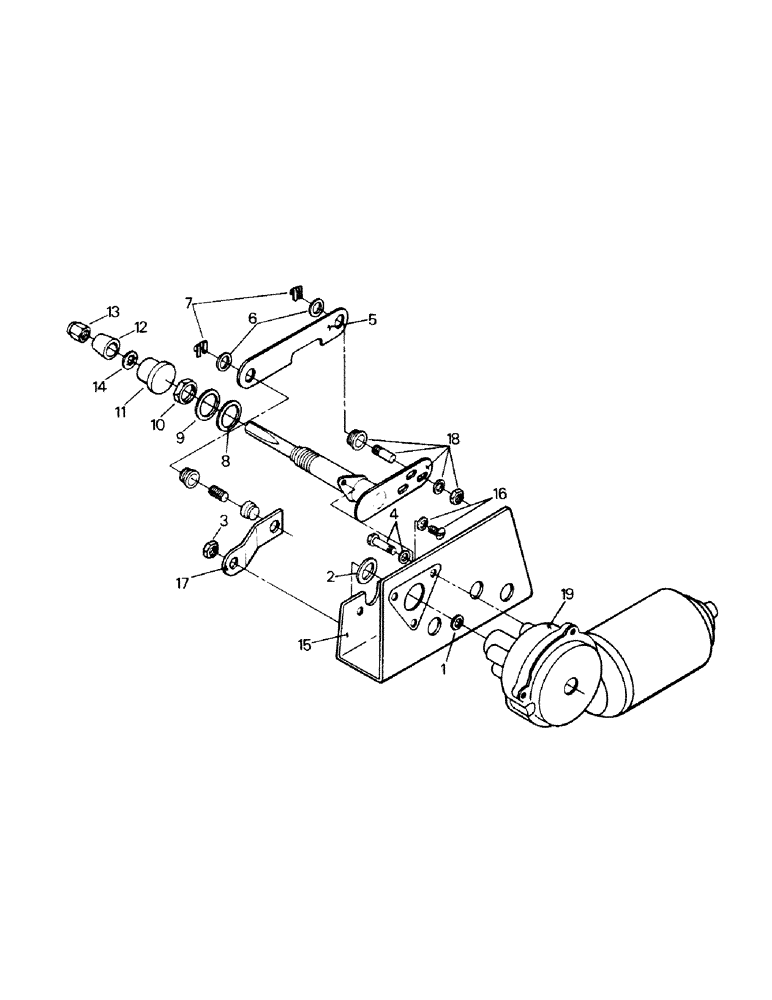

Запчасти Case IH KP-525 (01-21) - WIPER DRIVE ASSEMBLY (10) - CAB

20-1204T91

MOTOR

Wiper Drive Assy (Front), Includes: Ref. 1 - 19

1шт.

20-1212T91

MOTOR

Wiper Drive Assy (Rear), Includes: Ref. 1 - 19

1шт.

1

1-9415

SPACER

3шт.

2

1-2678

WASHER

1шт.

3

1-2680

NUT

Nut

1шт.

4

1-2682

BOLT

Machine Screw & Washer

3шт.

5

1-2683

LINK

Connecting Link

1шт.

6

1-2684

WASHER

Spacing Washer

2шт.

7

1-2685

CLIP

Spring Clip

2шт.

8

1-9416

WASHER

1шт.

9

1-9417

WASHER

1шт.

10

1-9418

NUT

1шт.

11

1-9419

CAP

1шт.

12

1-9420

NUT

Knurled Driver

1шт.

13

1-9421

NUT

1шт.

14

1-9422

WASHER

1шт.

15

1-2681

SUPPORT

Bracket

1шт.

16

1-2686

SCREW,no

Machine Screw & Washer

2шт.

17

1-2679

ARM

Drive Arm

1шт.

18

1-2668

SHAFT

Pivot Shaft Assy

1шт.

19

20-1205T1

ADAPTER

Motor Assy

1шт.
