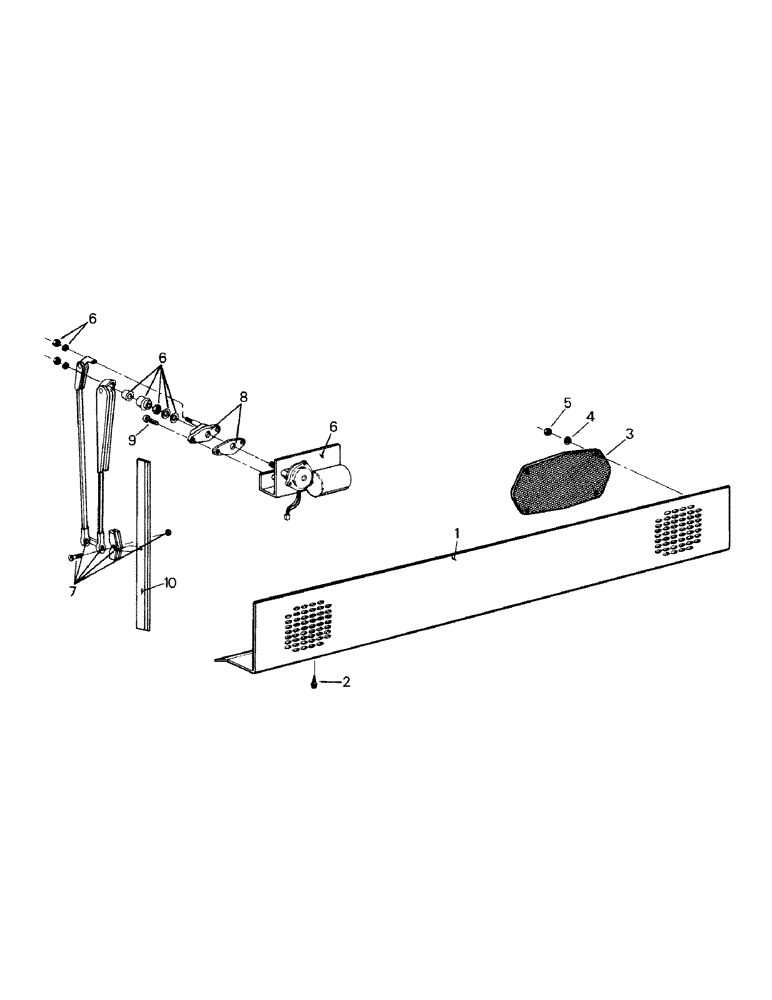

Запчасти Case IH KP-525 (01-20) - REAR CONSOLE (10) - CAB

1

60-1836T1

PANEL

Console

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

3

60-2077T1

SPEAKER

2шт.

4

19-699

WASHER,3/16"

8шт.

5

19-5563

LOCK NUT

Lock Nut

8шт.

6

Wiper Drive Assy (Rear) (see fig. 1-20)

1шт.

7

54-313

ARM

Wiper Arm

1шт.

8

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

9

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew (w/o Window Washer option)

2шт.

19-1048

Capscrew (with Window Washer option) Hex, 1/4"-28 x 1 1/2", G5

1шт.

10

60-1145T91

WIPER BLADE

Assy

1шт.

2-4194T1

WIPER BLADE

1шт.
