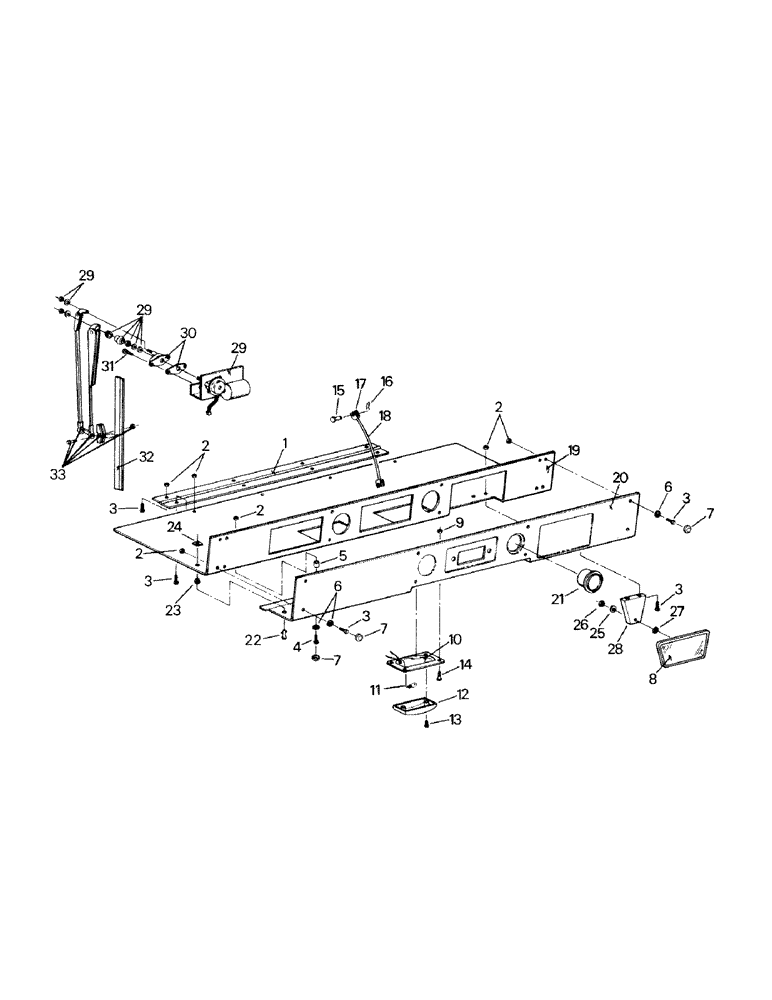

Запчасти Case IH KP-525 (01-17) - FRONT CONSOLE (10) - CAB

1

1-4291

Hinge

1шт.

2

19-5563

LOCK NUT

Lock Nut

23шт.

3

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

Machine Screw

19шт.

4

454774

SCREW

Machine Screw

4шт.

5

31-1354

FASTENER

Spacer

4шт.

6

1-8674

CAP WASHER

Cap Washer

13шт.

7

1-8673

CAP

13шт.

8

1-8617

MIRROR

1шт.

9

19-5564

LOCK NUT,#6-32, GB

8шт.

1-9063T91

LIGHT

Dome Light Assy, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

20-2007T1

BULB

1шт.

12

1-9064

LENS

1шт.

13

155830

ANGLE BAR

Machine Screw

2шт.

14

155857

BOLT (MACHINE),Cross Flat Hd, #6 - 32 x 0.75", Gr 2

Machine Screw

8шт.

15

19-143

CLEVIS PIN,5/16" x 0.94"

2шт.

16

19-5380

PIN

Hair Pin

2шт.

17

1-4657

CLEVIS

2шт.

18

1-4656

CABLE

Lanyard Cable

1шт.

19

60-1838T1

CONSOLE

1шт.

20

60-1841T2

PANEL

Trim Panel

1шт.

21

20-2018T1

HOURMETER

(20-1404T1-Code B)

1шт.

22

19-5568

STUD

Quarter Turn Stud

2шт.

23

19-5569

RETAINER

Quarter Turn Retainer

2шт.

24

19-5570

CONTAINER

Quarter Turn Receptacle

2шт.

25

19-223

WASHER,1/4"

1шт.

26

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

27

19-467

LOCK WASHER,Ext Tooth, 1/4"

1шт.

28

64-86

BRACKET

Mirror Bracket

1шт.

29

Wiper Drive Assy (Front) (see fig. 1-20)

1шт.

30

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

31

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew (w/o Window Washer option)

2шт.

19-1048

Capscrew (with Window Washer option) Hex, 1/4"-28 x 1 1/2", G5

1шт.

32

60-1145T91

WIPER BLADE

Assy

1шт.

2-4194T1

WIPER BLADE

1шт.

33

54-313

ARM

Wiper Arm

1шт.
