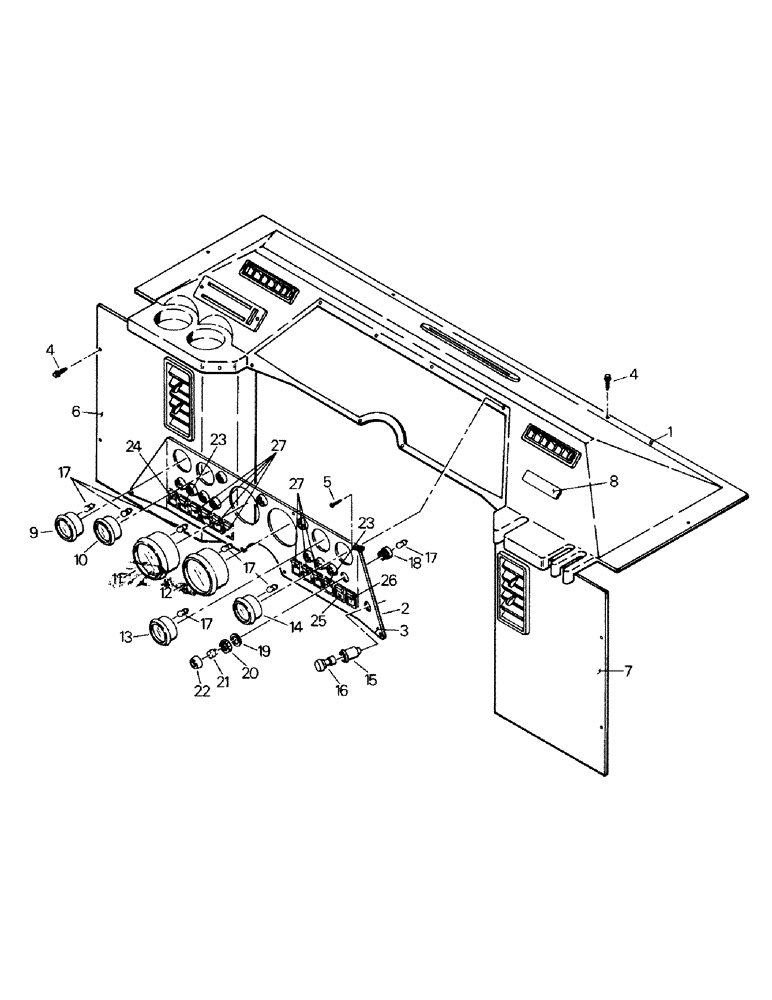

Запчасти Case IH KP-525 (01-16) - DASH & INSTRUMENTS (10) - CAB

1

1-8658T1

PANEL

Dash

1шт.

2

1-8660

PANEL

Dash

1шт.

3

60-3476T2

DECAL

Woodgrain Decal

1шт.

4

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

10шт.

5

19-1003

SELF-TAP SCREW,Flg Hd, #8 x 1/2"

Self-Tapping Screw

8шт.

6

1-5076

SKIRT

(Left)

1шт.

7

1-5078

SKIRT

(Right)

1шт.

8

60-3475T1

SYMBOLS

Emblem

1шт.

9

22-743T1

GAUGE

Voltmeter

1шт.

10

1-8609

GAUGE

Fuel Gauge

1шт.

11

20-1412T2

SPEEDOMETER

1шт.

12

20-1511T1

KIT

Tach

1шт.

13

20-1306T1

GAUGE

Engine Temp Gauge

1шт.

14

22-744T1

GAUGE

Engine Oil Press. Gauge

1шт.

15

22-728

COUNTER

Lighter Receptacle

1шт.

16

22-727

KNOB

Lighter Plug

1шт.

17

22-717

LAMP

Light Bulb

17шт.

18

22-716

HOUSING

11шт.

19

22-725

LOCK WASHER

Washer

11шт.

20

22-715

NUT

11шт.

21

22-721

LENS

-Trans Oil Press.

1шт.

22-720

LENS

-Trans Oil Temp

1шт.

22-718

LENS

-Engine Oil Temp

1шт.

22-722

LENS

-Park Brake

1шт.

22-719

LENS

-Engine Oil Press.

1шт.

22-723

LENS

-Headlamp Indicator

1шт.

22-724

LENS

-Turn Signal Indicator

2шт.

47-4341

LENS

-Amber

2шт.

47-4342

LENS

-Red

1шт.

22

22-714

SHROUD

Lens Shroud

11шт.

23

1-6153

SWITCH

-Dash & Rear Wiper

2шт.

24

1-6154

SWITCH

-Ether Start Aid

1шт.

25

1-6152

SWITCH

-Field/Road Lights

1шт.

26

1-8582

SWITCH

-Master

1шт.

27

1-6150

SWITCH

-Dome Light, Park Brake, Implement & Extra (4)

7шт.
