Запчасти Case IH KP-525 (01-13) - SEAT ASSEMBLY, SEAT CUSHION & LATERAL ISOLATOR (10) - CAB

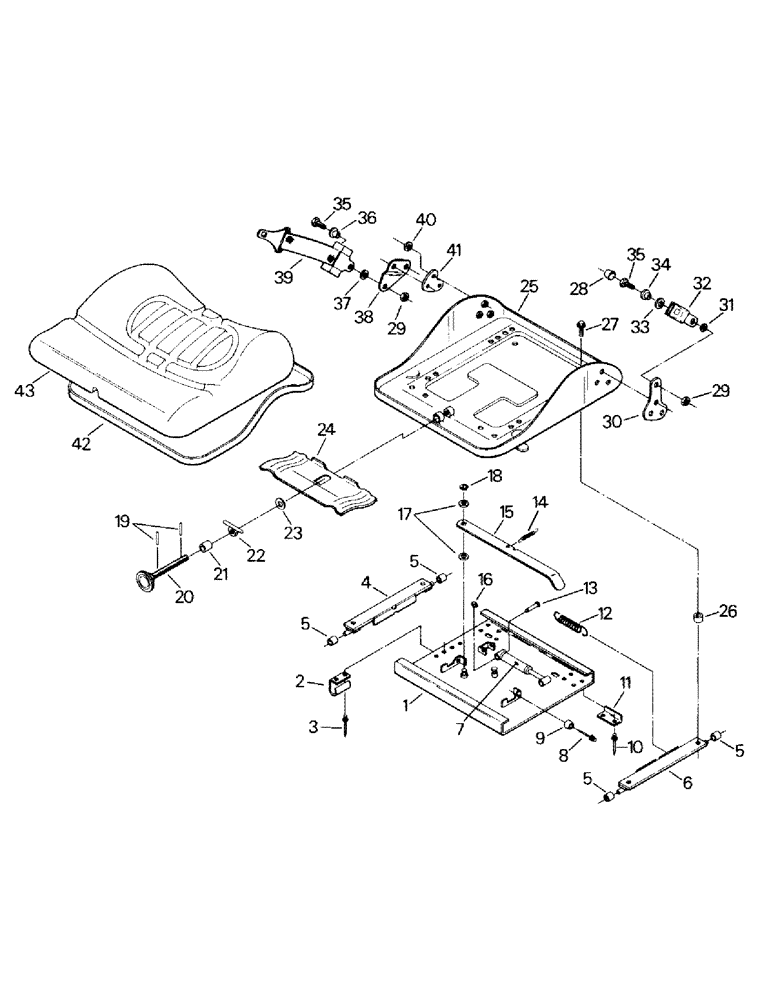

Схема запчастей Case IH KP-525 - (01-13) - SEAT ASSEMBLY, SEAT CUSHION & LATERAL ISOLATOR (10) - CAB
21
42
26
32
5
29
25
7
3
36
5
29
12
39
19
5
10
35
40
18
28
17
9
38
13
16
6
34
5
15
31
4
37
14
30
41
23
43
1
24
35
22
11
33
20
2
27
8

Артикул

Название

Примечание

Количество

60-3254T91

ISOLATOR

Lateral Isolator Assy, Includes: Ref. 1 - 18

1шт.

1

60-3226T91

BASE

Isolator Base Assy (incl Refs. 8-11)

1шт.

2

60-3366T1

SPRING

Leaf Spring

1шт.

3

NSS

NOT SOLD SEPARAT

Pop Rivet

2шт.

4

60-3227T1

BRACKET

(Right)

1шт.

5

60-3228T1

NEEDLE BEARING

Needle Roller Bearing

4шт.

6

60-3229T1

BRACKET

(Left)

1шт.

7

60-3230T91

SHOCK ABSORBER

Assy (incl Refs.13 & 16)

1шт.

8

NSS

NOT SOLD SEPARAT

Pop Rivet

2шт.

9

60-3231T1

BUMPER

Rubber Bumper

2шт.

10

NSS

NOT SOLD SEPARAT

Pop Rivet

8шт.

11

NSS

NOT SOLD SEPARAT

Angle

4шт.

12

60-3232T1

SPRING

2шт.

13

60-3233T1

PIN

2шт.

14

60-3234T1

SPRING

1шт.

15

60-3235T91

LEVER ASSY.

Lever Assy (incl Refs. 17 & 18)

1шт.

16

40-1182

CIRCLIP,M6

Snap Ring

2шт.

17

40-1183

WASHER

2шт.

18

40-1155

CIRCLIP,M10

Snap Ring

1шт.

19

40-1175

PIN

Spring Pin

1шт.

20

60-1692T1

KNOB

Assy

1шт.

21

60-3203T1

BUSHING

1шт.

22

60-1687T1

NUT

Retaining Nut

1шт.

23

40-1153

WASHER

1шт.

24

60-1694T1

PLATE

Support Plate

1шт.

25

60-3236T1

PAN

Seat Pan

1шт.

26

60-3237T1

BUSHING

4шт.

27

60-1628T1

BOLT

Flanged Capscrew

4шт.

60-1657T91

SAFETY BELT

SAFETY BELT, Includes Ref. 28-39

1шт.

28

60-1656T1

COVER

1шт.

29

60-1661T1

NUT

2шт.

30

60-1668T1

BRACKET

Seat Belt Bracket

1шт.

31

60-1667T1

WASHER

1шт.

32

60-1658T1

BUCKLE

Seat Belt Buckle

1шт.

33

60-1662T1

WASHER

Spring Washer

1шт.

34

60-1666T1

BUSHING

1шт.

35

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

2шт.

36

60-3197T1

BUSHING

1шт.

37

40-1159

WASHER

Plastic Washer

1шт.

38

60-3367T1

ANCHOR

Bearing Plate

1шт.

39

60-1659T1

SAFETY BELT

SAFETY BELT, Strap

1шт.

40

60-1679T1

WASHER

1шт.

41

60-1638T1

LARGE PLATE

Spacer

1шт.

42

60-1640T1

SUPPORT

Plastic Extrusion

1шт.

43

60-3241T1

CUSHION

Seat Cushion

1шт.

Выбрано товаров: 45
