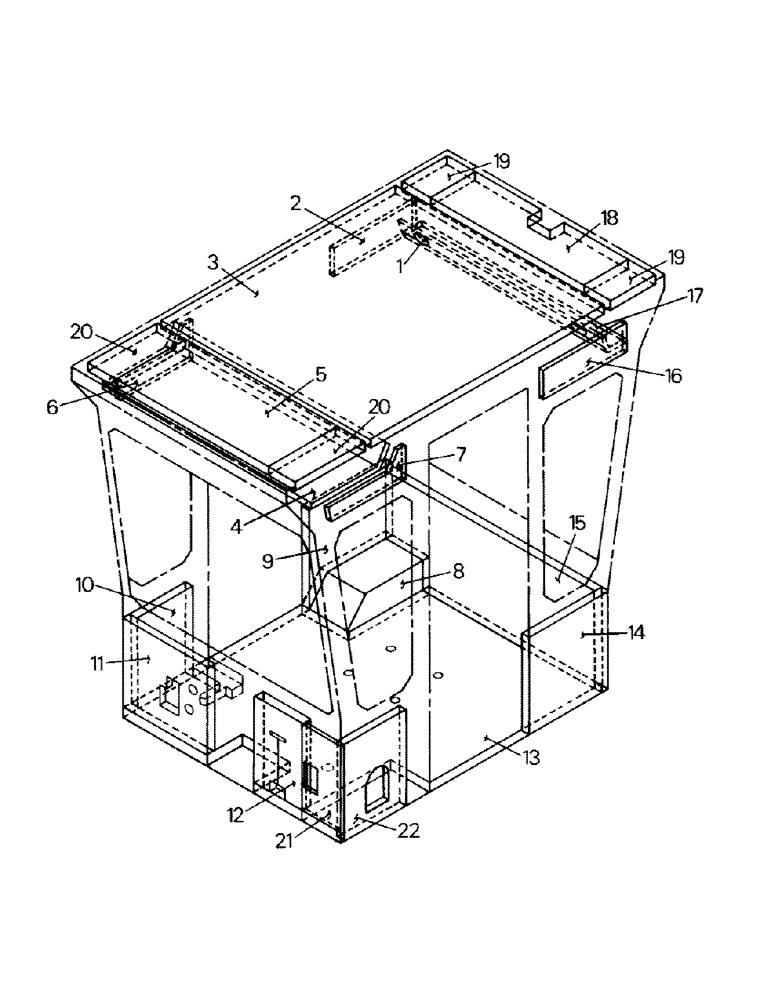

Запчасти Case IH KP-525 (01-04) - CAB INSULATION & VINYL (10) - CAB

1

60-1852T1

INSULATOR

Speaker Insulation

2шт.

2

1-8103

ROOF LINING

Right Upper Rear Insulation

1шт.

3

60-1853T1

INSULATOR

Headliner Insulation

1шт.

4

60-1854T1

ISOLATOR

Front Console Insulation

1шт.

5

1-8108

INSULATOR

Top Front Insulation

1шт.

6

1-8718

INSULATOR

Right Upper Front Insulation

1шт.

7

1-8719

ISOLATOR

Left Upper Front Insulation

1шт.

8

47-4699

CARPET

Assembly

1шт.

9

1-5424

PANEL

Right Lower Rear Insulation

1шт.

10

54-348

ISOLATOR

Right Side Front Insulation

1шт.

11

60-3290T1

Wrap-A-Round Insulation

1шт.

12

60-3276T1

Wrap-A-Round Insulation

1шт.

13

60-3274T2

FLOOR MAT

Floormat

1шт.

14

1-5425

PANEL

Left Lower Rear Insulation

1шт.

15

1-5423

PANEL

Bottom Rear Insulation

1шт.

16

1-8092

ISOLATOR

Left Upper Rear Insulation

1шт.

17

60-1855T1

ISOLATOR

Rear Cover Insulation

1шт.

18

1-8112

ISOLATOR

Top Rear Insulation

1шт.

19

60-1856T1

FOAM

Top Rear Insulation

2шт.

20

60-1857T1

FOAM

Top Front Insulation

2шт.

21

25-1005

ISOLATOR

Module Front Insulation

1шт.

22

1-8653

INSULATOR

Module Side Insulation

1шт.

27-1

ADHESIVE

(1 qt) (not shown)

1шт.
