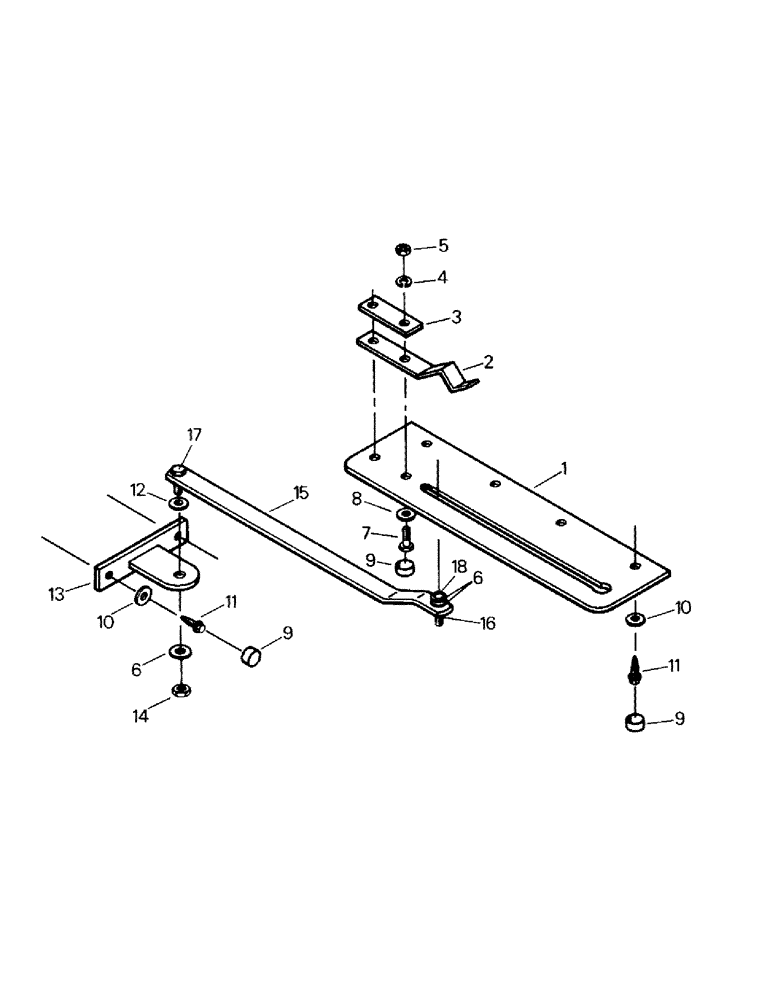

Запчасти Case IH KP-525 (01-03) - DOOR STOP (10) - CAB

1

1-1649

LARGE PLATE

Mounting Plate

1шт.

2

1-1658

SPRING

Door Latch Spring

1шт.

3

1-1657

LARGE PLATE

Plate

1шт.

4

19-115

LOCK WASHER,1/4"

1/4"

2шт.

5

19-76

NUT,1/4"-20, G5

2шт.

6

19-5434

WASHER

3шт.

7

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

2шт.

8

1-4456

CAP WASHER

Caplug Washer

2шт.

9

1-3990

PLUG

Caplug

8шт.

10

1-3991

WASHER

Caplug Washer

6шт.

11

19-5707

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1"

Tapping Screw

6шт.

12

19-5370

WAVE WASHER

Wave Washer

1шт.

13

1-1653

BRACKET

1шт.

14

19-90

NUT

Lock Nut

1шт.

60-1165T91

CONNECTING LINK

Assy (also contains Ref. 6), Includes: Ref. 15 - 18

1шт.

15

60-1138T1

LINK

Connecting Link

1шт.

16

19-823

NUT,3/8"-16, G5

2шт.

17

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

Capscrew

1шт.

18

114705

SCREW

Machine Screw

1шт.
