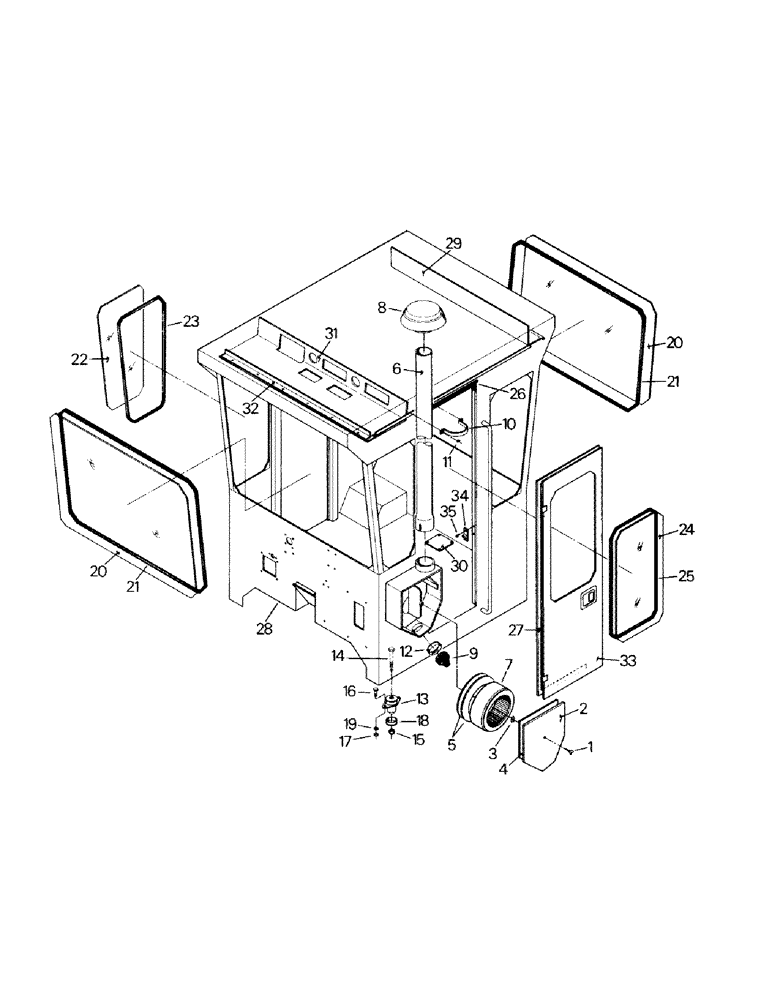

Запчасти Case IH KP-525 (01-01) - CAB (10) - CAB

54-307

RETAINER

Cover Assy, consists of ref. nos 1-4

1шт.

1

19-937

BOLT

Wing Bolt

1шт.

2

54-303

COVER

1шт.

3

61-104

RETAINER

1шт.

4

54-412

SEAL

1шт.

5

54-302T1

SEAL

2шт.

6

54-306

MUFFLER

Air Intake Stack

1шт.

7

54-304T1

ELEMENT

Air Filter

1шт.

P/N 54-304T1; IF DEALER IS LOOKING FOR THE CAB FILTER FOR HIS KP1325 TRACTOR, LOOK AT P/N 60-1981T1

1шт.

8

54-305

CAP

1шт.

9

66-177

VALVE

Evaculator Valve

1шт.

10

54-308

BRACKET

1шт.

11

19-76

NUT,1/4"-20, G5

2шт.

12

32-60

CLAMP,#48, 2.56/3.50 Type F Worm

1шт.

13

31-1198

ANCHOR

Isolation Mount

4шт.

14

19-5404

BOLT,Hex, 1" - 8 x 5.50", Gr 8

Capscrew

4шт.

15

19-5405

LOCK NUT

Lock Nut

4шт.

16

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew

8шт.

17

19-653

LOCK NUT

8шт.

18

47-4334

FITTING

Snubber

4шт.

19

19-109

WASHER,1/2"

8шт.

20

47-2443

GLASS

Front & Rear Glass

2шт.

21

47-4087

MOLDING

2шт.

22

54-262

GLASS

Side Glass

4шт.

23

4-547

MOLDING

4шт.

24

54-261

GLASS

Door Glass

2шт.

25

4-548

MOLDING

2шт.

26

1-3044

FOAM

Pad

2шт.

27

4-465

SEALING STRIP

Weather Stripping

2шт.

1-7077

PASTE

Caulk (.08g)

1шт.

24-181

SEAL

Glue (.08g)

1шт.

28

Cab Structure (special order item)

1шт.

29

Rear Console (see fig. 1-20)

1шт.

30

47-2715

Floor Cover

1шт.

31

Front Console (see fig. 1-16)

1шт.

32

1-6839

BRACE

1шт.

33

Door Assy (see fig. 1-2)

2шт.

34

1-3180

HAMMER

Striker Pin

2шт.

1-4167

SHIM

(not shown)

4шт.

35

19-5707

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1"

Tapping Screw

4шт.
