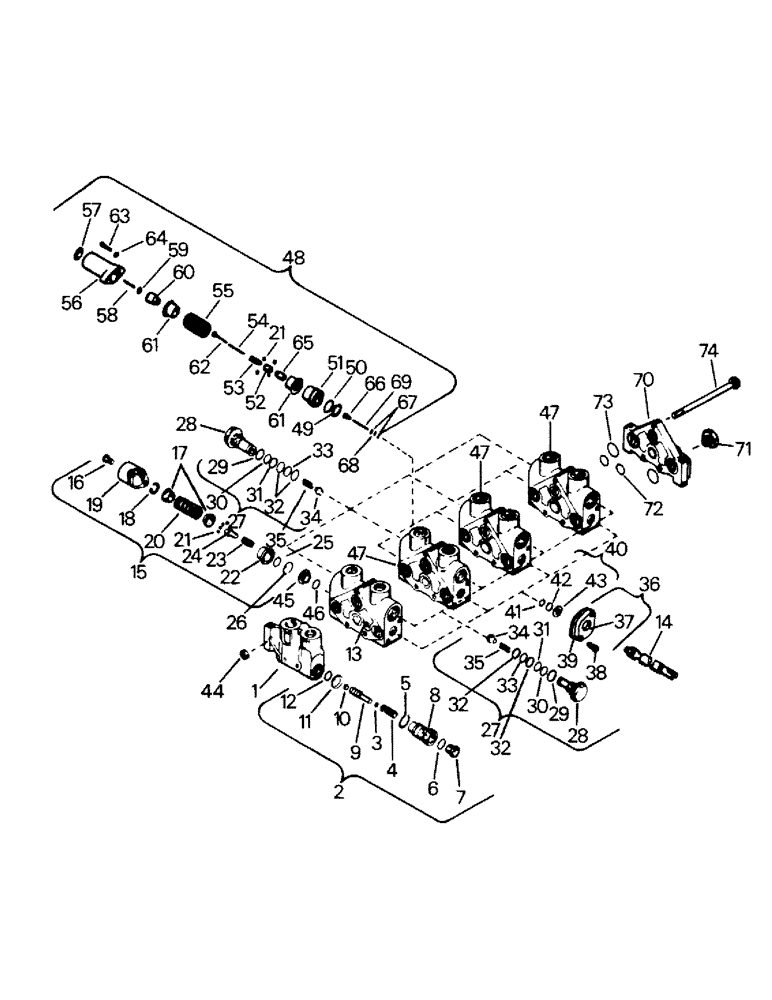

Запчасти Case IH KP-525 (08-12) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-1396T91

VALVE

Control Valve Assy (4-Spool)

1шт.

50-1397T91

VALVE

Control Valve Assy (5-Spool)

1шт.

1

50-1977T91

PLATE

Cover Plate (Left) (incl Ref. 2)

1шт.

2

50-1978T91

ASSEMBLY

Relief Assy (incl Refs. 3-12)

1шт.

3

18-1509

SHIM

(.010)

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 78)

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 78)

1шт.

7

NSS

NOT SOLD SEPARAT

Relief Spring Cap

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve Body

1шт.

9

NSS

NOT SOLD SEPARAT

Poppet (incl in Ref. 77)

1шт.

10

NSS

NOT SOLD SEPARAT

Seal (incl in Ref. 77)

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Ref. 78)

2шт.

12

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 78)

1шт.

13

50-1979T91

HYD VALVE SECTION

Float Section (incl Refs. 14, 15, 27, 36 & 40)

1шт.

14

NSS

NOT SOLD SEPARAT

Spool (see Refs. 13 & 47)

4шт.

15

50-1980T91

CAP ASSY.

Float Positioner Assy (incl Refs. 16-26)

1шт.

16

18-712

SCREW

2шт.

17

18-826

COLLAR ASSY.

Collar

2шт.

18

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Bonnet

1шт.

20

NSS

NOT SOLD SEPARAT

Centering Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Detent Ball

4шт.

22

NSS

NOT SOLD SEPARAT

Detent Sleeve

1шт.

23

NSS

NOT SOLD SEPARAT

Detent Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Detent Ball Follower

1шт.

25

NSS

NOT SOLD SEPARAT

Quad Ring Seal (incl in Ref. 76)

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 76)

1шт.

27

18-876

PLUG

Load Check Plug Assy (incl Refs. 28-35)

8шт.

All quantities shown are for the 4-Spool Control Valve only. 3-Pt Relief Cartridge P/N 01-5974 replaces the lift check plug (Ref. 28) in the control Valve and is used to limit the down force on the lift cylinders to 500 psi. The power beyond adapter is P/N 18-1134 and is used in place of Ref. 71.

1шт.

28

NSS

NOT SOLD SEPARAT

Lift Check Plug

8шт.

29

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75, 76 & 79)

8шт.

30

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 75, 76 & 79)

8шт.

31

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75, 76 & 79)

8шт.

32

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 75, 76 & 79)

16шт.

33

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75, 76 & 79)

8шт.

34

NSS

NOT SOLD SEPARAT

Lift Check Poppet

8шт.

35

NSS

NOT SOLD SEPARAT

Lift Check Spring

8шт.

36

18-1704

RETAINER

Spool Seal Retainer (incl Refs. 37-39)

4шт.

37

NSS

NOT SOLD SEPARAT

Plate

4шт.

38

18-1702

SCREW

& Lock Washer

8шт.

39

NSS

NOT SOLD SEPARAT

Plate

4шт.

40

18-878

SEAL

Assy (incl 1 each of Refs. 41-43)

1шт.

41

NSS

NOT SOLD SEPARAT

Seal (incl in Refs. 40, 76, 79 & 81)

7шт.

42

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 40, 76, 79 & 81)

7шт.

43

NSS

NOT SOLD SEPARAT

Seal Retainer (incl in Ref. 40)

4шт.

44

18-909

LOCK NUT

Nut

3шт.

45

18-895

LARGE PLATE

Plate

1шт.

46

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 76)

1шт.

47

50-1981T91

HYD VALVE SECTION

Knockout Section (incl Refs. 14, 27, 36, 40 & 48) (see Ref. 79)

3шт.

48

50-2038T91

LEVER

Knockout Positioner Assy (see Ref. 81)

3шт.

49

NSS

NOT SOLD SEPARAT

Seal (incl in Refs. 40, 76, 79 & 81)

3шт.

50

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 40, 76, 79 & 81)

3шт.

51

NSS

NOT SOLD SEPARAT

Detent Sleeve

3шт.

52

NSS

NOT SOLD SEPARAT

Ball Follower

3шт.

53

NSS

NOT SOLD SEPARAT

Spring

3шт.

54

NSS

NOT SOLD SEPARAT

Spring

3шт.

55

NSS

NOT SOLD SEPARAT

Spring

3шт.

56

NSS

NOT SOLD SEPARAT

Bonnet

3шт.

57

2-3815T1

PLUG

Button Plug (incl in Ref. 79)

3шт.

58

NSS

NOT SOLD SEPARAT

Set Screw

3шт.

59

NSS

NOT SOLD SEPARAT

Lock Nut

3шт.

60

NSS

NOT SOLD SEPARAT

Spool Collar

3шт.

61

NSS

NOT SOLD SEPARAT

Spring Collar

6шт.

62

NSS

NOT SOLD SEPARAT

Spring Guide

3шт.

63

NSS

NOT SOLD SEPARAT

Screw

6шт.

64

NSS

NOT SOLD SEPARAT

Bearing Plate

6шт.

65

NSS

NOT SOLD SEPARAT

Knockout Plunger

3шт.

66

NSS

NOT SOLD SEPARAT

Piston Guide

3шт.

67

NSS

NOT SOLD SEPARAT

Backup Ring (incl in Refs. 79 & 81)

6шт.

68

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 79 & 81)

3шт.

69

NSS

NOT SOLD SEPARAT

Needle Roller

3шт.

70

50-1188T1

LARGE PLATE

Cover Plate (Right) (incl Ref. 71)

1шт.

71

31-1594

PLUG,Hex Hd, 1 3/16"-12 ORB

(14)

1шт.

All quantities shown are for the 4-Spool Control Valve only. 3-Pt Relief Cartridge P/N 01-5974 replaces the lift check plug (Ref. 28) in the control Valve and is used to limit the down force on the lift cylinders to 500 psi. The power beyond adapter is P/N 18-1134 and is used in place of Ref. 71.

1шт.

72

2-2861

O-RING

(incl in Refs. 76 & 80)

10шт.

73

2-2862

O-RING

(incl in Refs. 76 & 80)

10шт.

74

18-1037

STUD,Flg, 3/8" x 9 1/2"

Capscrew (4-Spool Valve)

3шт.

18-1038

STUD,3/8" - 24 x 11.50"

Capscrew (5-Spool Valve)

1шт.

75

2-4786T1

SEAL KIT

Kit (Load Check Assy) (incl Refs. 29-33)

1шт.

76

18-962

SEAL KIT

Kit (Complete for Float Bank) (incl Refs. 25, 26, 29-33, 41-43, 46, 72 & 73)

1шт.

77

18-1417

SEAL

Relief Poppet & Seal Assy (incl Refs. 9 & 10)

1шт.

78

50-2039T1

SEAL KIT

Kit (Relief Body) (incl Refs. 5, 6, 11 & 12)

1шт.

79

35-1059

SEAL KIT

Kit (Complete for Knockout Section) (incl 1 each Refs. 57 & 68, 2 each Refs. 29-31, 33, 41, 42, 67, 72, 73 & 4 each Ref. 32)

1шт.

80

1-8344

SEAL KIT

O-Ring Kit (incl 2 each of Refs. 72 & 73)

1шт.

All quantities shown are for the 4-Spool Control Valve only. 3-Pt Relief Cartridge P/N 01-5974 replaces the lift check plug (Ref. 28) in the control Valve and is used to limit the down force on the lift cylinders to 500 psi. The power beyond adapter is P/N 18-1134 and is used in place of Ref. 71.

1шт.

81

50-2050T1

SEAL KIT

Kit (Knockout Positioner Assy (incl 1 each Refs. 41, 42, 68 & 2 of Ref. 67)

1шт.

35-1408T91

KIT

4 to 5 Spool Valve Kit (Kits contain Knockout Section, Coupler, Cables, Control Lever, Hoses & necessary seals)

1шт.
