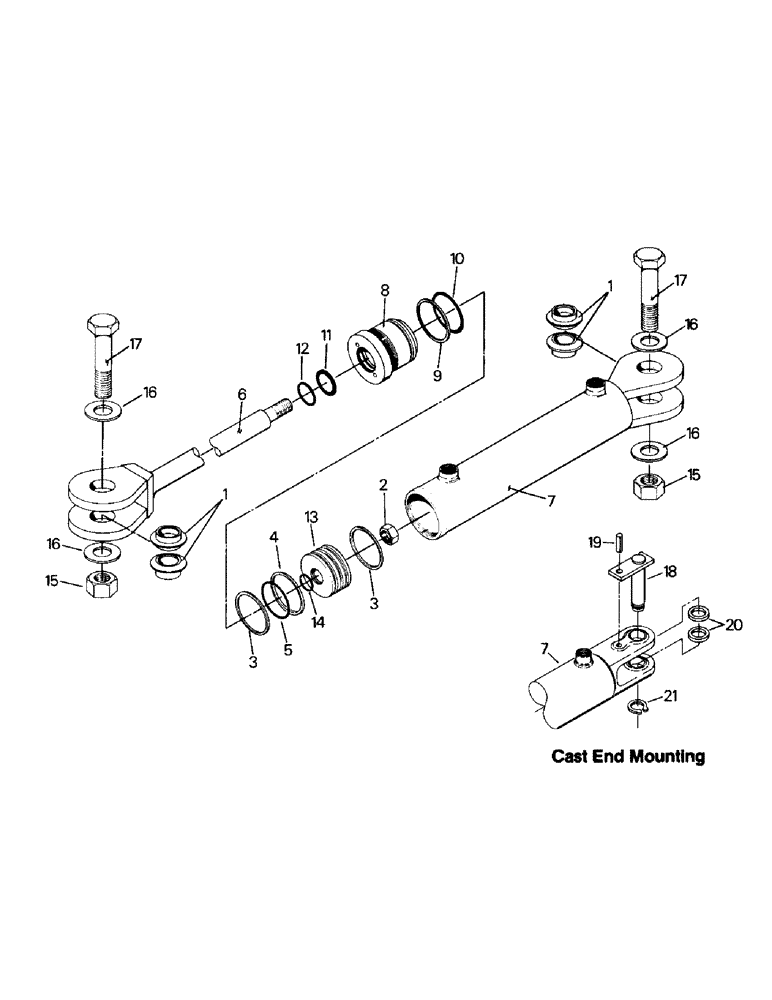

Запчасти Case IH KP-525 (08-11) - STEERING CYLINDERS AND MOUNTING (07) - HYDRAULICS

1-8404T91

STEERING CYLINDER

Assy

1шт.

Used on cylinders with welded clevis end

1шт.

50-2142T91

CYLINDER

Steering Cylinder Assy., P/N 50-2142T91will replace P/N 1-8404T91, however ref. 18 - 21 must also be purchased.

1шт.

Used on cylinders with welded clevis end

1шт.

35-1136T91

SEAL KIT

Seal Kit, Includes Refs. 3-5, 9-12 and 14

1шт.

1

52-130

BUSHING,38.2mm ID x 69.85mm OD x 26.42mm L

qty 2 with cast clevis end

4шт.

Used on cylinders with cast clevis end

1шт.

2

19-5578

LOCK NUT

1шт.

3

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

4

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

6

1-8408

ROD

1шт.

Used on cylinders with welded clevis end

1шт.

50-2147T1

ROD ASSY.

Rod

1шт.

Used on cylinders with welded clevis end

1шт.

7

1-8405T1

BARREL

Shell

1шт.

Used on cylinders with welded clevis end

1шт.

50-2053T1

SLEEVE CYLINDER

Shell

1шт.

Used on cylinders with welded clevis end

1шт.

8

1-7772

CYLINDER END CAP

Rod Guide

1шт.

9

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

12

NSS

NOT SOLD SEPARAT

Canned Wiper

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

13

1-7031

PISTON

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

15

19-916

NUT

Jam Nut, qty. 1 for cyl with cast clevis end

2шт.

16

19-938

WASHER

qty. 2 for cyl with cast clevis end

4шт.

17

19-915

BOLT,1 1/2" - 12 x 5 1/4", Gr 8

Capscrew, qty. 1 for cyl with cast clevis end

2шт.

18

50-1086T1

PIN

1шт.

Used on cylinders with cast clevis end

1шт.

19

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

Used on cylinders with cast clevis end

1шт.

20

2-3223T1

SPACER

2шт.

Used on cylinders with cast clevis end

1шт.

21

19-5619

RING, SNAP

Retaining Ring

1шт.

Used on cylinders with cast clevis end

1шт.
