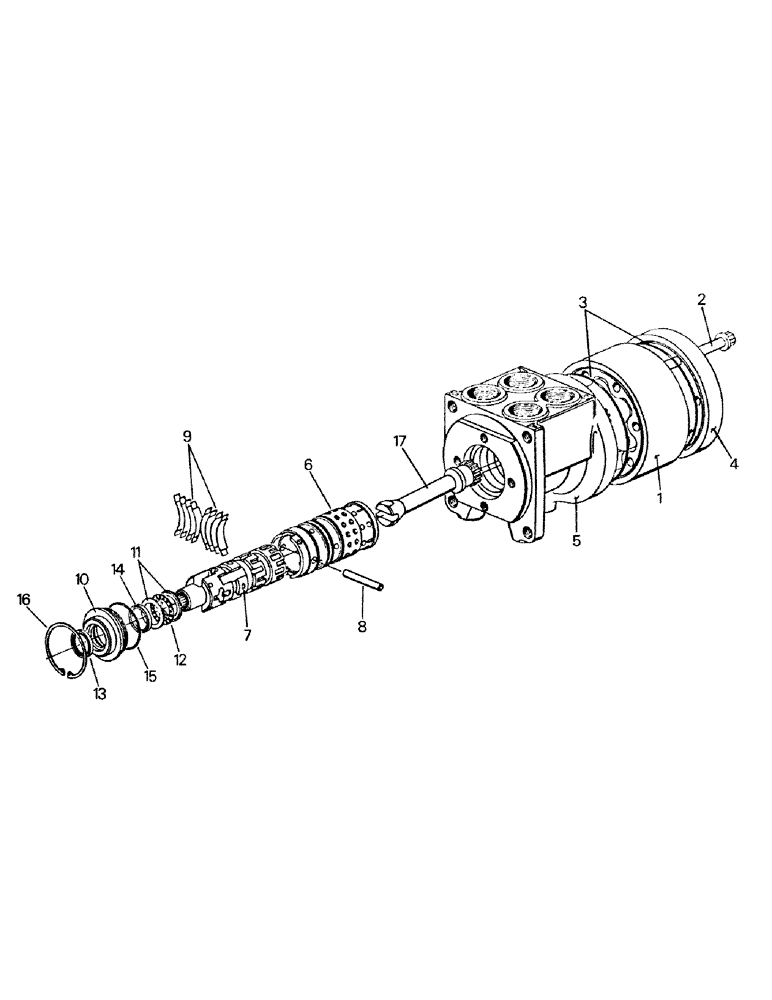

Запчасти Case IH KP-525 (08-10) - STEERING CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

47-3001

VALVE BLOCK

Steering Control Valve Assy, consists of ref. nos. 1-17

1шт.

1

2-1346

Gerotor Set

1шт.

2

2-1347

CAPSCREW,M12 x 30mm

Socket head Capscrew

7шт.

3

2-1348

SEAL

O-Ring

3шт.

4

2-1349

End Cap

1шт.

2-1350

PACKAGE

Control Parts Assy, consists of ref. nos. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

NSS

NOT SOLD SEPARAT

Control Sleeve

1шт.

7

NSS

NOT SOLD SEPARAT

Control Spool

1шт.

8

NSS

NOT SOLD SEPARAT

Pin

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

2-1351

RETAINER

Front Retainer

1шт.

11

2-352

Bearing Race

2шт.

12

18-1693

NEEDLE BEARING

Needle Thrust Bearing

1шт.

13

18-137

OIL SEAL

1шт.

14

18-144

SEAL

Quad Ring Seal

1шт.

15

2-1353

SEAL

O-Ring

1шт.

16

2-1354

RING, SNAP

Snap Ring

1шт.

17

2-1355

DRIVE

1шт.
