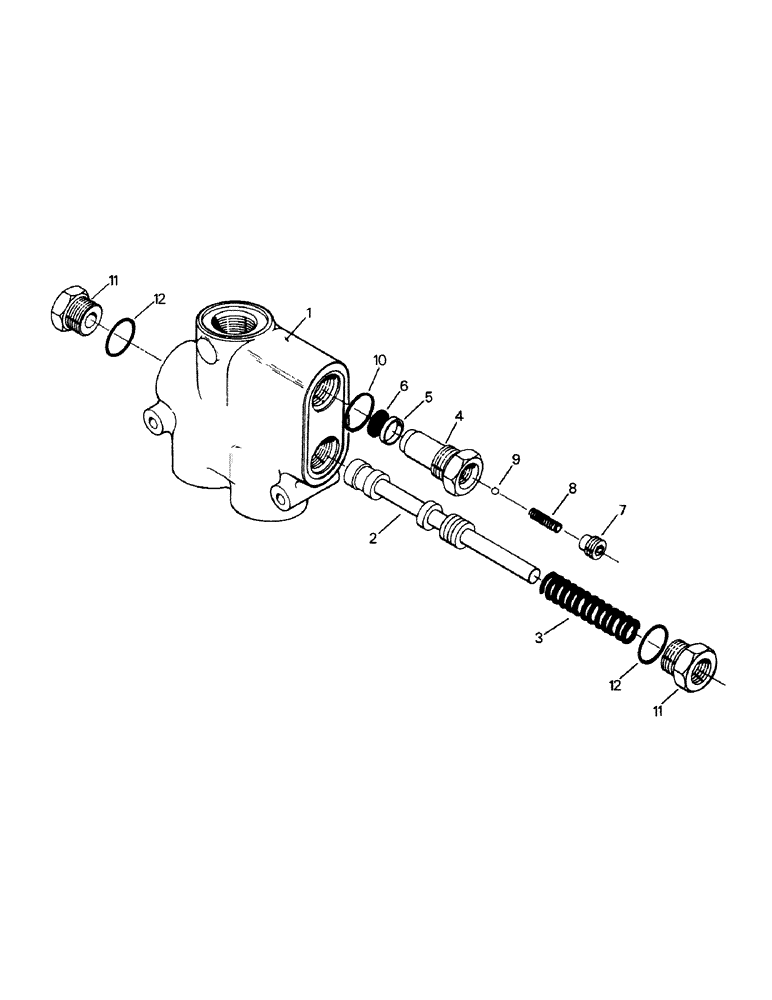

Запчасти Case IH KP-525 (08-09) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS

47-3002T91

VALVE

Priority Valve Assy, consists of ref. nos. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

2-1360

SPRING

1шт.

50-1289T91

FILTER CARTRIDGE

Relief Cartridge Assy, consists of ref. nos. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Screen

1шт.

7

NSS

NOT SOLD SEPARAT

Adjusting Screw

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

2-1361

PLUG

2шт.

12

31-664

FITTING

O-Ring

2шт.
