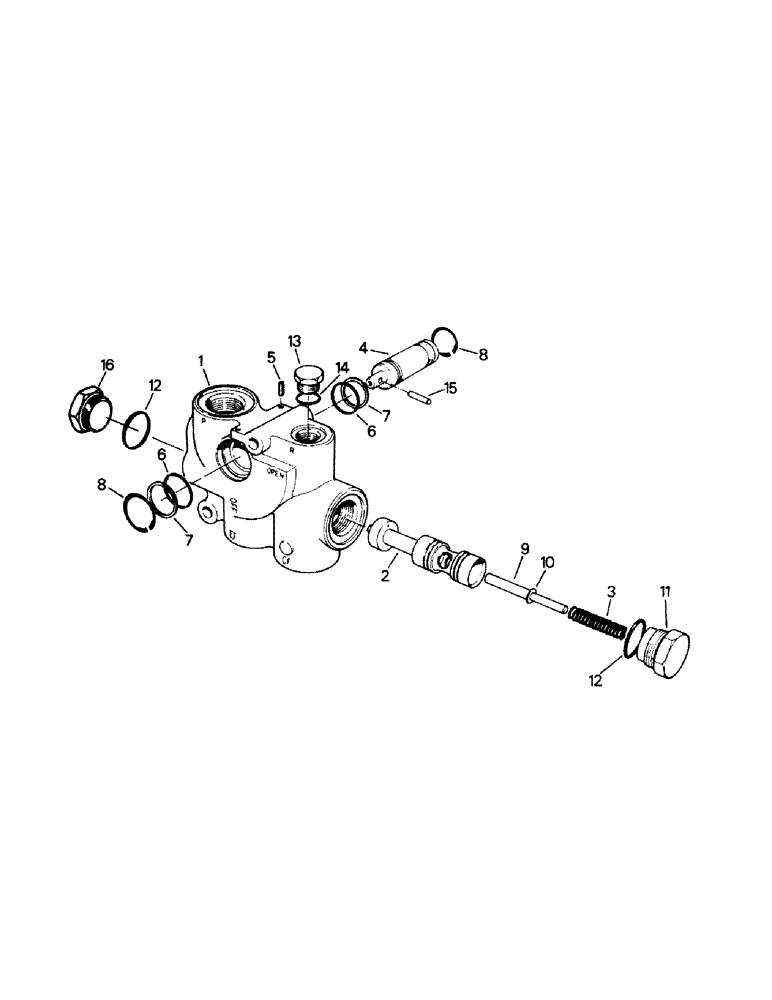

Запчасти Case IH KP-525 (08-08) - FLOW DIVIDER ASSEMBLY (07) - HYDRAULICS

47-3505T91

DIVIDER

Flow Divider Assy, Includes: Ref. 1 - 16

1шт.

35-1218T91

SEAL KIT

Seal Kit (incl Refs. 6, 7, 12 & 14)

1шт.

1

NSS

NOT SOLD SEPARAT

Valve Body

1шт.

2

18-1615

PISTON

1шт.

3

18-1616

SPRING

1шт.

4

1-8181

VALVE

Control

1шт.

5

18-1618

SCREW

Set Screw

1шт.

6

31-1457

O-RING

2шт.

7

1-8180

RING

Backup Ring

2шт.

8

18-1621

RING, SNAP

Snap Ring

2шт.

9

18-1622

ROD

Retaining Rod

1шт.

10

18-1623

WASHER

1шт.

11

18-1624

PLUG

Assy (with O-Ring)

1шт.

12

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

2шт.

13

31-336

PLUG

Assy (with O-Ring)

1шт.

14

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

456836

PIN,1/4" x 2 1/2", Coiled

1шт.

16

2-4661T91

PLUG

Assy (with O-Ring)

1шт.
