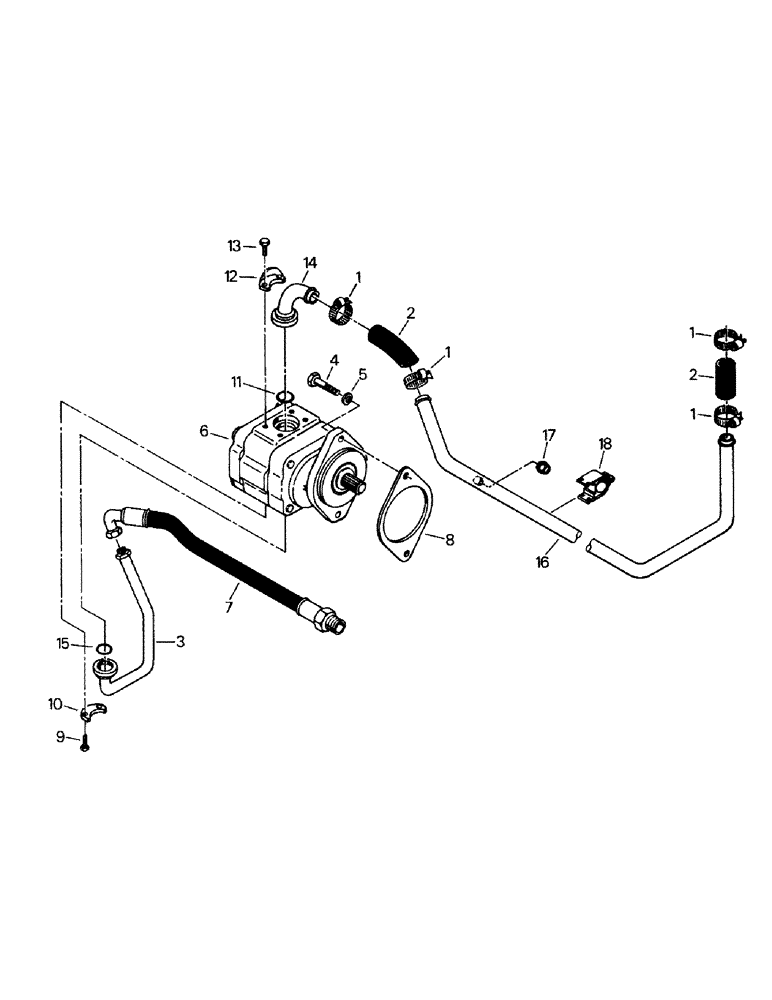

Запчасти Case IH KP-525 (08-05) - HYDRAULIC PUMP & ATTACHING PARTS (07) - HYDRAULICS

1

31-1283

MOUNTING CLIP

Clamp

4шт.

2

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

2шт.

3

50-2149T1

TUBE ASSY.

Tube

1шт.

4

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

Capscrew

2шт.

5

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

6

Hydraulic Pump Assy (see fig. 8-6)

1шт.

7

31-2309

HOSE

1шт.

8

18-1176

GASKET

1шт.

9

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

4шт.

10

1-3526

COUPLING FLANGE

Split Flange

2шт.

11

31-1328

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

12

31-1911

FLANGE

Split Flange

2шт.

13

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew

4шт.

14

31-2034

ADAPTER

Elbow

1шт.

15

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

16

50-2151T1

TUBE

1шт.

17

31-1240

CAP,37 Degree, 1 1/16"-12

Nut

1шт.

18

31-1151

CLAMP

Assy

1шт.
