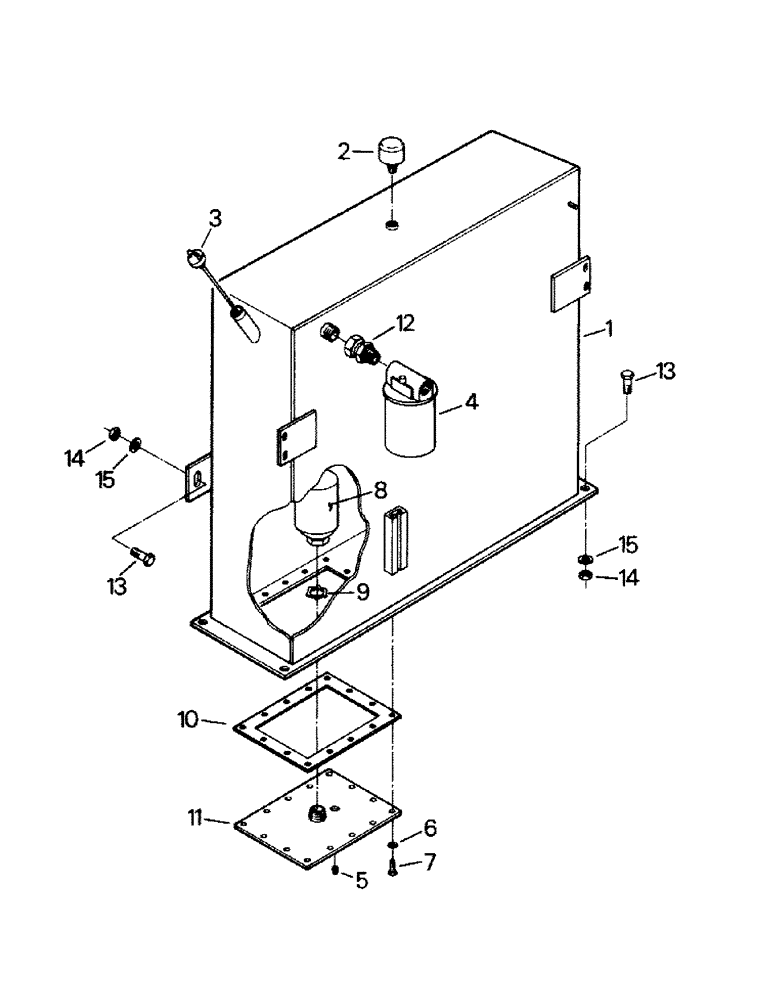

Запчасти Case IH KP-525 (08-04) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1

50-1967T1

Hydraulic Reservoir

1шт.

2

50-1154T1

BREATHER

Filter

1шт.

3

47-3580

DIPSTICK

1шт.

4

18-497

FILTER

Assy

1шт.

18-498

FILTER, ENGINE OIL

Filter Element

1шт.

18-669

O-RING

(for above)

1шт.

5

31-35

PLUG

Pipe Plug

1шт.

6

19-5566

SEALING WASHER

Washer

14шт.

7

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

14шт.

8

50-1509T1

FILTER

Suction Screen

1шт.

50-2029T1

FILTER SCREEN

Suction Screen (interchangeable with P/N 50-1509T1)

1шт.

9

19-953

LOCK NUT

Lock Nut

1шт.

10

50-1976T1

GASKET

1шт.

11

50-1983T1

Cover Plate

1шт.

12

31-1869

ADAPTER

1шт.

13

19-394

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Capscrew

6шт.

14

19-84

NUT,3/4"-10, G5

6шт.

15

19-112

WASHER,3/4"

6шт.
