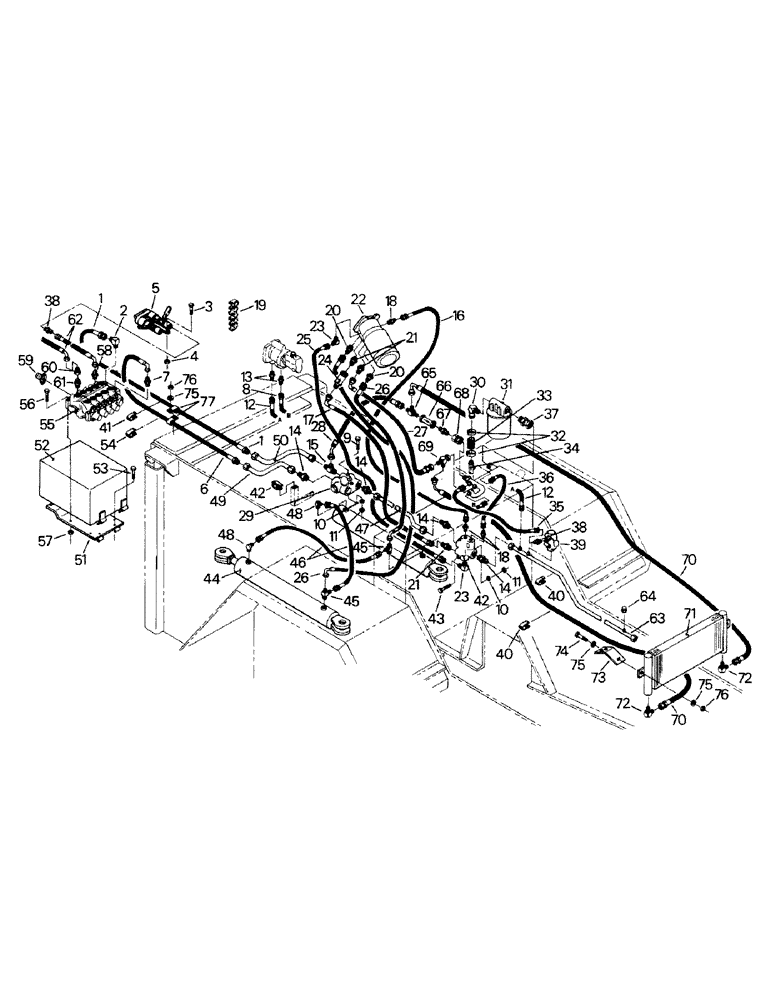

Запчасти Case IH KP-525 (08-02) - HYDRAULIC SYSTEM, LESS PUMP & ATTACHING PARTS (07) - HYDRAULICS

1

31-1361

HOSE

1шт.

2

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12)

1шт.

3

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

Capscrew

3шт.

4

19-82

LOCK NUT

Lock Nut

3шт.

5

Hydraulic Coupler Assy (see fig. 8-14)

5шт.

6

31-1362

HOSE

1шт.

7

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12)

1шт.

8

31-1039

HOSE ASSY.

Hose

1шт.

9

19-1007

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Capscrew

2шт.

10

19-700

WASHER,5/16"

4шт.

11

19-508

LOCK NUT

Lock Nut

4шт.

12

31-1228

HYDRAULIC HOSE

Hose

1шт.

13

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Fitting (8)

2шт.

14

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

4шт.

15

31-1236

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

(16)

1шт.

16

18-1536

HOSE

1шт.

17

31-1233

HOSE

1шт.

18

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

Fitting (4)

3шт.

19

31-1244

CLAMP

Assy

5шт.

20

31-397

COUPLING, BREAK AWAY,3/4"-16, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

2шт.

21

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

3шт.

22

Steering Control Valve Assy (see fig. 8-10)

1шт.

23

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4)

2шт.

24

31-1363

VALVE

Check Valve

1шт.

25

31-1232

HOSE

1шт.

26

31-1276

HOSE

2шт.

27

31-1077

HOSE

1шт.

28

31-1702

HOSE

1шт.

29

Flow Divider Assy (see fig. 8-8)

1шт.

30

31-1230

ADAPTER

Elbow

1шт.

31

18-497

FILTER

Assy

1шт.

18-498

FILTER, ENGINE OIL

Element

1шт.

18-669

O-RING

(for above)

1шт.

32

31-1283

MOUNTING CLIP

Clamp

2шт.

33

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

1шт.

34

47-3507

HYD TUBE

Tube

1шт.

35

31-1147

HOSE

1шт.

36

31-1231

HOSE ASSY.,152.4 mm ID, 762 mm Length

Hose

1шт.

37

31-1869

ADAPTER

1шт.

38

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Fitting (10)

11шт.

39

Relief Valve Assy (see fig. 8-6)

1шт.

40

31-1187

CLAMP

Assy

8шт.

41

31-1151

CLAMP

Assy

1шт.

42

Priority Valve Assy (see fig. 8-8)

1шт.

43

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

Capscrew

2шт.

44

Steering Cylinder Assy (see fig. 8-10)

2шт.

45

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8)

2шт.

46

32-177

HOSE

2шт.

47

47-4473

HOSE ASSY.

Tube

1шт.

48

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

2шт.

49

47-3510

TUBE ASSY.

Tube

1шт.

50

47-3504

TUBE ASSY.

Tube

1шт.

51

47-4395

MOUNTING PARTS

Control Valve Mount

1шт.

52

47-4392T1

Control Valve Cover

1шт.

53

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

3шт.

54

31-1150

CLAMP

Assy

1шт.

55

Control Valve Assy (see fig. 8-12)

1шт.

56

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

Capscrew

3шт.

57

19-77

NUT,5/16"-18, G5

3шт.

58

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

Fitting (8)

5шт.

59

47-4584

KIT

Boot

5шт.

60

60-66

REDUCER

5шт.

61

31-1415

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Fitting (8)

5шт.

62

32-244

HOSE

10шт.

63

50-2150T1

TUBE

1шт.

64

9403369

CAP,37 Degree, 7/16"-20

Nut

1шт.

65

31-1693

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

1шт.

66

50-1023T1

VALVE

Check Valve

1шт.

67

31-1701

COUPLING,1"-11 1/2 NPTF x 3/4"-14 NPTF

Fitting

1шт.

68

31-1700

HYD CONNECTOR,37 Degree, Sw, 1 5/16"-12" x 1"-11 1/2 NPTF

Adapter

1шт.

69

31-1301

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

70

31-1699

HOSE

2шт.

71

10-39

COOLER

Oil Cooler

1шт.

72

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

73

50-1231T1

BRACKET

(Left)

1шт.

50-1230T1

BRACKET

(Right)

1шт.

74

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

2шт.

75

19-107

WASHER

5шт.

76

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

77

32-343

MOUNTING CLIP

Clamp

2шт.

78

19-135

CABLE TIE

Ty Rap (not shown)

6шт.
