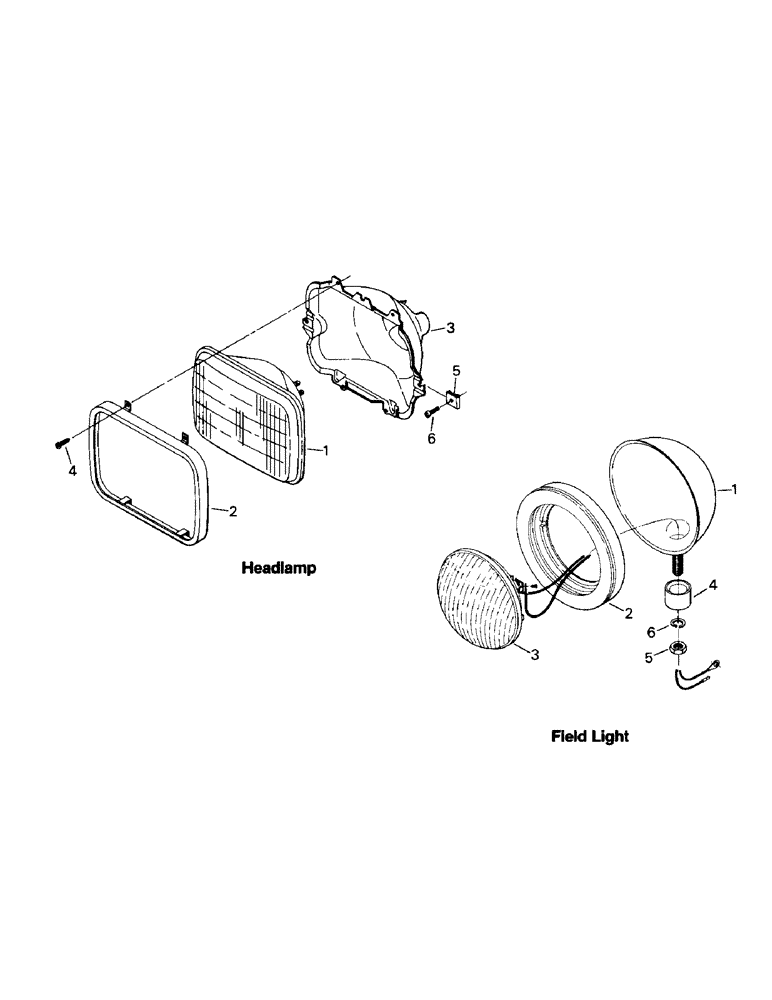

Запчасти Case IH KP-525 (02-14) - LIGHTS (06) - ELECTRICAL

20-1309T91

LAMP

Headlamp Assy, Includes: Ref. 1 - 4

2шт.

1

20-1658T1

LIGHT

Sealed Beam

1шт.

2

20-1659T1

OIL SEAL

Retaining Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Mounting Ring

1шт.

PART 20-1374T1 IS 6000 CANDLE (HALOGEN) AND 20-1375T1 IS 2200 CANDLE (HALOGEN).

1шт.

4

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

Tapping Screw

4шт.

5

19-5621

LOCK NUT,#8-32, GB

6шт.

6

19-1000

SCREW,Rnd Hd, #8 - 32 x 3/4"

Machine Screw

6шт.

20-1141T91

LAMP

Field Light Assy (H7619) (front & outside rear), Includes: Ref. 1 - 6

8шт.

20-1072T91

LIGHT

Field Light Assy (H7609) (inside rear)

2шт.

1

NSS

NOT SOLD SEPARAT

Shell

1шт.

2

20-1655T1

RETAINER

Mounting Ring

1шт.

3

20-1374T1

BEAM

Sealed Beam (H7619)

1шт.

20-1375T1

BEAM

Sealed Beam (H7609)

1шт.

4

22-366

BUSHING

1шт.

5

19-237

NUT,Jam, 1/2" - 20, Gr 5

Jam Nut

1шт.

6

19-119

LOCK WASHER,1/2"

1/2"

1шт.
