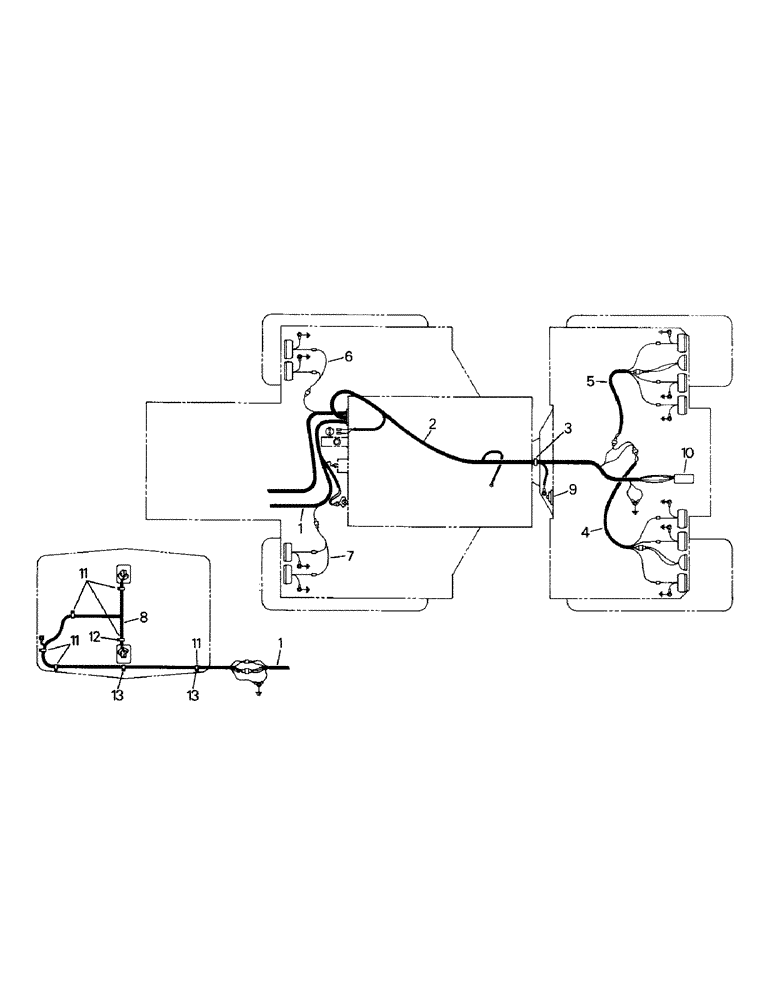

Запчасти Case IH KP-525 (02-12) - FRAME ELECTRICAL (06) - ELECTRICAL

1

1-8628T1

HARNESS

Front Frame Wire Harness

1шт.

2

20-1759T2

HARNESS

Rear Frame Wire Harness

1шт.

3

31-1244

CLAMP

1шт.

4

47-4536

HARNESS

Rear Lights Wire Harness (Left)

1шт.

5

47-4535

HARNESS

Rear Lights Wire Harness (Right)

1шт.

6

47-4694

ELECTRICAL WIRE

Field Lights Wire Harness (Right)

1шт.

7

47-4695

HARNESS

Field Lights Wire Harness (Left)

1шт.

8

20-1897T1

HARNESS

Headlamp Wire Harness

1шт.

9

47-4340T1

SENDER UNIT

Fuel Level Sender

1шт.

10

22-789

SOCKET

Implement Socket (mounting items listed below)

1шт.

1-4819

BRACKET

1шт.

22-790

COVER

Boot

1шт.

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

2шт.

19-106

WASHER,5/16", SAE

2шт.

19-116

LOCK WASHER,5/16"

5/16"

2шт.

19-77

NUT,5/16"-18, G5

2шт.

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

Capscrew

1шт.

19-120

LOCK WASHER,5/8"

5/8"

1шт.

19-605

LOCK WASHER,Ext Tooth, 5/16"

1шт.

19-83

NUT,5/8"-11, G5

1шт.

22-1143

PLUG

Mating Plug for Implement Socket (optional)

1шт.

11

22-635

MOUNTING CLIP

Clip

7шт.

12

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

3шт.

13

19-76

NUT,1/4"-20, G5

4шт.
