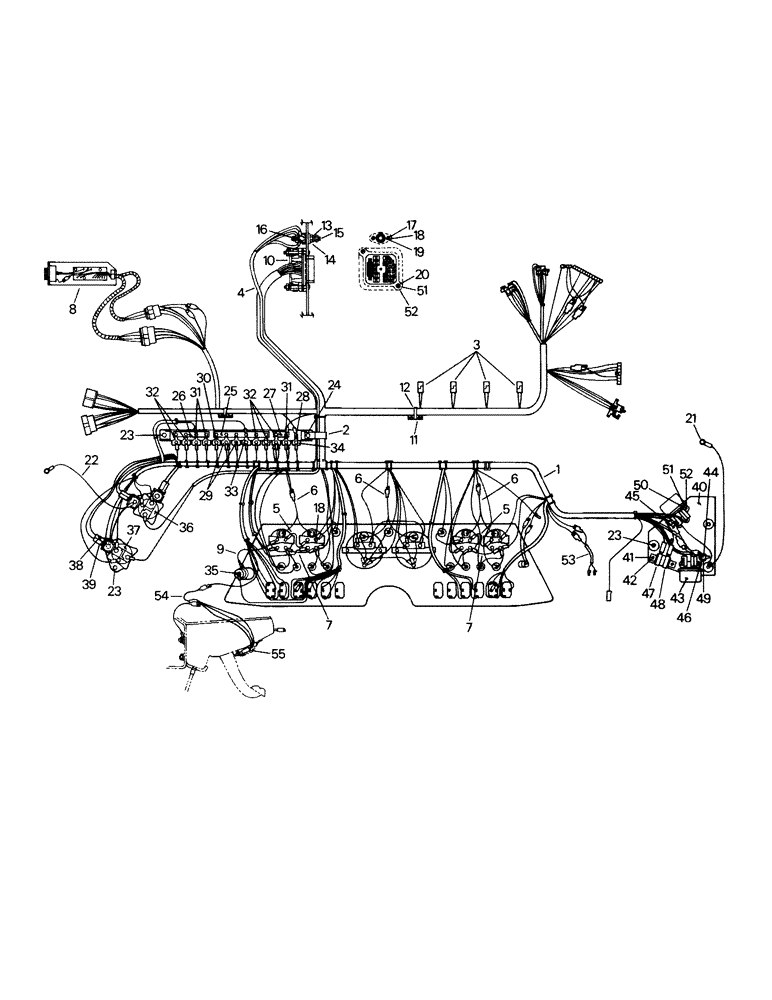

Запчасти Case IH KP-525 (02-09) - DASH ELECTRICAL (06) - ELECTRICAL

1

20-1227T1

HARNESS

Main Cab Wire Harness

1шт.

2

31-2160

CLAMP

1шт.

3

22-738

DIODE

4шт.

4

1-7093

HARNESS

Cab Power Wire Harness

1шт.

5

1-3934

HARNESS

Wire - Gauge Ground to Gauge Ground

2шт.

6

1-3925

SOCKET

Wire & Socket Assy

3шт.

7

1-3933

HARNESS

Wire-Gauge to Gauge Ignition

2шт.

8

Audio Alarm (see fig. 2-10)

1шт.

9

22-802

CABLE

Wire-Gauge Ground

1шт.

10

1-8578

COVER

Harness Connector Cover

1шт.

11

22-823

MOUNT

Cable Tie Mount

3шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

13

20-1150T1

BLOCK

Junction Block

1шт.

14

19-5577

LOCK WASHER

Lock Washer (Brass)

2шт.

15

115722

Nut (Brass)

2шт.

16

1-7096

GASKET

Junction Block Gasket

1шт.

17

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

Machine Screw

2шт.

18

19-308

NUT,#10 - 32

10шт.

19

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

20

19-720

BOLT,1/4" - 20 x 3/4"

Capscrew

2шт.

21

20-1250T1

ELECTRICAL WIRE

Wire-Dash Ground

1шт.

22

1-3927

HARNESS

Wire-Solenoid Ground

1шт.

23

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

9шт.

47-4177

BREAKER

Circuit Breaker Assy, Includes: Ref. 24 - 34

1шт.

24

22-674

BRACKET

1шт.

25

22-675

BAR

Buss Bar (6 Hole)

1шт.

26

47-4176

BAR

Buss Bar (4 Hole)

1шт.

27

22-677

BAR

Buss Bar (2 Hole)

1шт.

28

22-809

BREAKER

Circuit Breaker (5 Amp)

1шт.

29

22-669

BREAKER

Circuit Breaker (6 Amp)

2шт.

30

22-670

BREAKER

Circuit Breaker (10 Amp)

1шт.

31

22-671

BREAKER

Circuit Breaker (15 Amp)

3шт.

32

22-672

BREAKER

Circuit Breaker (20 Amp)

5шт.

33

22-673

BREAKER

Circuit Breaker (30 Amp)

1шт.

34

19-481

SERRATED NUT

Kep Nut

1шт.

35

19-282

LOCK NUT

1шт.

36

22-792

SWITCH

Solenoid

1шт.

37

20-1411T1

CONNECTION,ELECTRIC

Solenoid

1шт.

38

22-108

FLASHER UNIT

Flasher

3шт.

39

22-112

BRACKET

Flasher Bracket

3шт.

2-3721T91

PLATE

Component Assy, Includes: Ref. 40 - 52

1шт.

40

1-3864T1

LARGE PLATE

Bracket

1шт.

41

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

Capscrew

2шт.

42

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

43

1-3861

RELAY

2шт.

44

1-3859

INSULATOR

Rectifier Insulator

1шт.

45

1-3860

ELECTRICAL WIRE

Wire-Rectifier

1шт.

46

19-5379

NUT

1шт.

47

1-3858

RESISTOR

(5 Ohm)

1шт.

48

1-3857

RESISTOR

(2 Ohm)

1шт.

49

1-3862

RECTIFIER

Assy

1шт.

50

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

Machine Screw

4шт.

51

19-76

NUT,1/4"-20, G5

6шт.

52

19-115

LOCK WASHER,1/4"

1/4"

6шт.

53

20-1749T1

ELECTRICAL WIRE

Adapter Wire Harness

1шт.

54

20-1628T1

HARNESS

Wire - Park Brake Switch

1шт.

55

20-1463T1

SWITCH

Assy (Brake Warning)

1шт.
