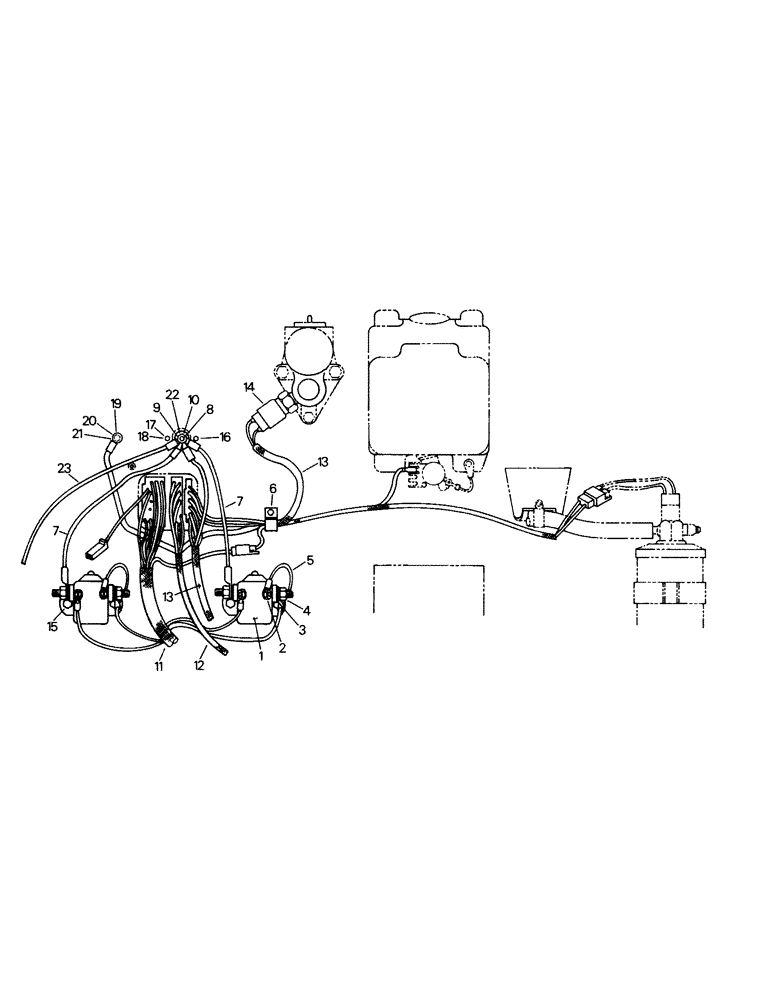

Запчасти Case IH KP-525 (02-08) - CAB FRONT ELECTRICAL (06) - ELECTRICAL

1

20-1608T1

SOLENOID

Magnetic Switch

2шт.

2

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

4шт.

3

19-116

LOCK WASHER,5/16"

5/16"

4шт.

4

19-88

NUT,5/16"-24, G5

4шт.

5

20-1198T1

ELECTRICAL WIRE

Wire

2шт.

6

22-632

CLIP

used only on later models

1шт.

7

20-1197T1

ELECTRICAL WIRE

Wire, used only on later models

2шт.

8

20-1150T1

BLOCK

Junction Block

1шт.

9

19-5577

LOCK WASHER

Lock Washer

1шт.

10

115772

NUT

1шт.

11

Engine Wire Harness (see fig. 2-1)

1шт.

12

Rear Frame Wire Harness (see fig. 2-12)

1шт.

13

Front Frame Wire Harness (see fig. 2-12)

1шт.

14

22-729

SWITCH

Hydraulic Switch

1шт.

15

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

16

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

2шт.

17

19-308

NUT,#10 - 32

2шт.

18

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

19

19-115

LOCK WASHER,1/4"

used only on later models 1/4"

1шт.

20

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew, used only on later models

1шт.

21

19-76

NUT,1/4"-20, G5

used only on later models

1шт.

22

1-7096

GASKET

Junction Block Gasket

1шт.

23

1-8773

CABLE

Junction Block Cable

1шт.
