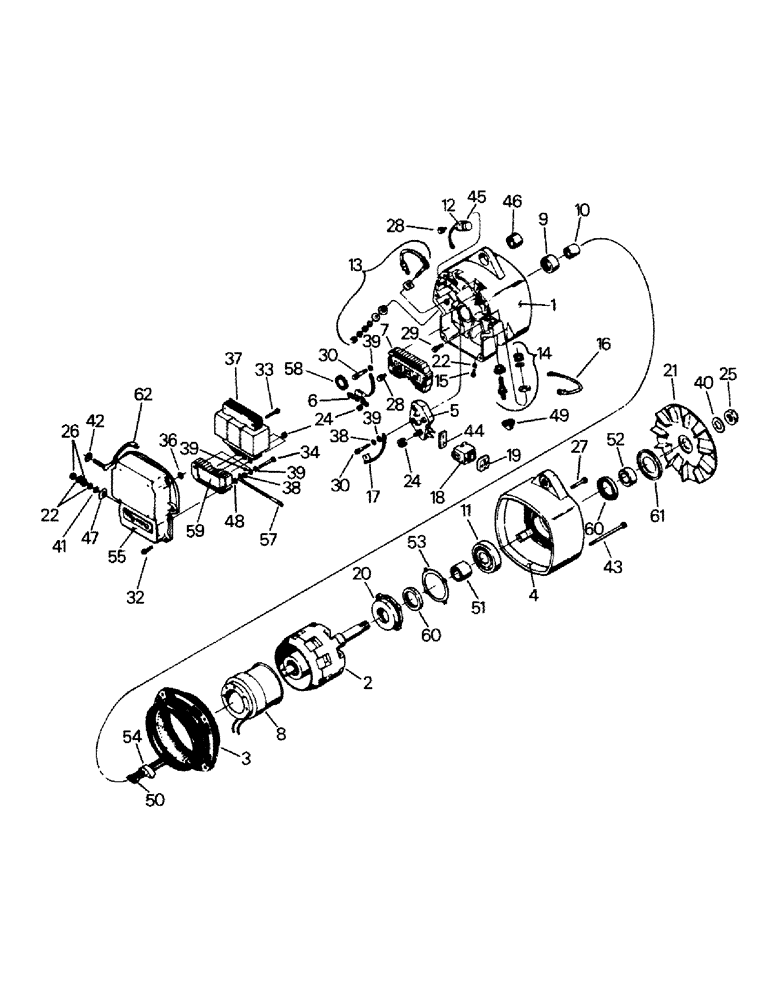

Запчасти Case IH KP-525 (02-06) - ALTERNATOR ASSEMBLY (06) - ELECTRICAL

47-4089

ALTERNATOR

SPARE PART Alt Assy (Delco #1117481), Includes: Ref. 1 - 62

1шт.

104258A1R

REMAN-ALTERNATOR

The Transformer From The Core Alternator Must Be Transferred To The Remanufactured Alternator

1шт.

104258A1C

CORE-ALTERNATOR

Return Number

1шт.

1

2-1316

HOUSING

Rectifier Housing (incl Refs. 9, 46 & 58)

1шт.

2

22-1053

ROTOR

Rotor Assy

1шт.

3

22-1054

STATOR

SPARE PART Stator Assy (incl Refs. 50 & 54)

1шт.

4

22-1061

FRAME

SPARE PART Frame (incl Ref. 60)

1шт.

5

22-1064

REGULATOR

Regulator

1шт.

6

22-1065

DIODE

Diode

1шт.

7

2-1317

RECTIFIER

Rectifier Bridge

1шт.

8

22-1094

COIL ASSY.

Field Coil

1шт.

9

22-1095

BEARING ASSY,0.875" ID x 1.1875" OD x 0.812"

Outer Bearing

1шт.

10

22-1096

RACE

Inner Bearing

1шт.

11

22-1097

BALL

Bearing

1шт.

12

22-1098

CAPACITOR

Capacitor

1шт.

13

22-1099

PACKAGE

Output Terminal Package

1шт.

14

22-1100

PACKAGE

Relay Terminal Package

1шт.

15

22-1101

SCREW

Terminal Screw

1шт.

16

22-1103

ASSEMBLY

Lead

1шт.

17

22-1104

ASSEMBLY

Lead

1шт.

18

22-1106

ROD, CONNECTING

Connector Body

1шт.

19

22-1105

CAP

Capacitor

1шт.

20

22-1107

RETAINER

Retainer (incl Ref. 60)

1шт.

21

22-1108

FAN

Fan

1шт.

22

22-1007

WASHER

Lock Washer

3шт.

23

2-1318

Bridge Terminal Stud Nut (not used)

1шт.

24

22-1022

NUT

Nut & Washer

3шт.

25

22-1024

NUT

Rotor Shaft Nut

1шт.

26

19-89

NUT,1/4"-28, G5

Transformer Terminal Nut

2шт.

27

22-1034

SCREW

Bearing Retainer Screw

1шт.

28

22-1038

SELF-TAP SCREW

Screw

3шт.

29

22-1039

SCREW

Field Coil Screw

1шт.

30

22-1049

SCREW

Ground Regulator Attachment Screw

2шт.

31

22-1050

SCREW

Insulated Regulator Attachment Screw (not shown)

1шт.

32

2-1319

SCREW

Transformer Housing Screw

4шт.

33

2-1320

SCREW

Transformer Screw

4шт.

34

2-1321

SCREW

Transformer Bridge Screw

1шт.

35

22-1101

SCREW

Transformer Bridge Ground Screw (not shown)

1шт.

36

2-1322

WASHER

Washer

2шт.

37

2-1332

TRANSFORMER

Transformer

1шт.

38

22-1008

WASHER

Washer

4шт.

39

2-1323

WASHER

Washer

6шт.

40

22-1144

WASHER

Rotor Shaft Nut Washer

1шт.

41

2-1324

WASHER

Washer

1шт.

42

2-1325

WASHER

Washer

1шт.

43

22-1009

BOLT

Bolt

1шт.

44

22-1010

BOOT

Boot

1шт.

45

22-1011

BRACKET

Capacitor Bracket

1шт.

46

22-1012

BUSHING

Bushing

1шт.

47

2-1326

BUSHING

Bushing

1шт.

48

2-1327

BUSHING

Bushing

1шт.

49

22-1013

CAP

Cap

1шт.

50

22-1014

CLIP

Clip

1шт.

51

22-1015

COLLAR

SPARE PART Inside Collar

1шт.

52

22-1016

COLLAR

SPARE PART Outside Collar

1шт.

53

22-1017

GASKET

Gasket

1шт.

54

22-1018

GROMMET

Grommet

1шт.

55

2-1328

HOUSING

SPARE PART Transformer Housing

1шт.

56

22-1019

INSULATOR

Rectifier Bridge Insulator (not shown)

1шт.

57

2-1329

ASSEMBLY

Lead Assy

1шт.

58

22-1020

PLUG

Plug

1шт.

59

2-1330

RECTIFIER

Rectifier

1шт.

60

22-1021

OIL SEAL

Seal

2шт.

61

22-1023

SLINGER

Slinger

1шт.

62

2-1331

TERMINAL CONNECTOR

Terminal Stud & Lead

1шт.
