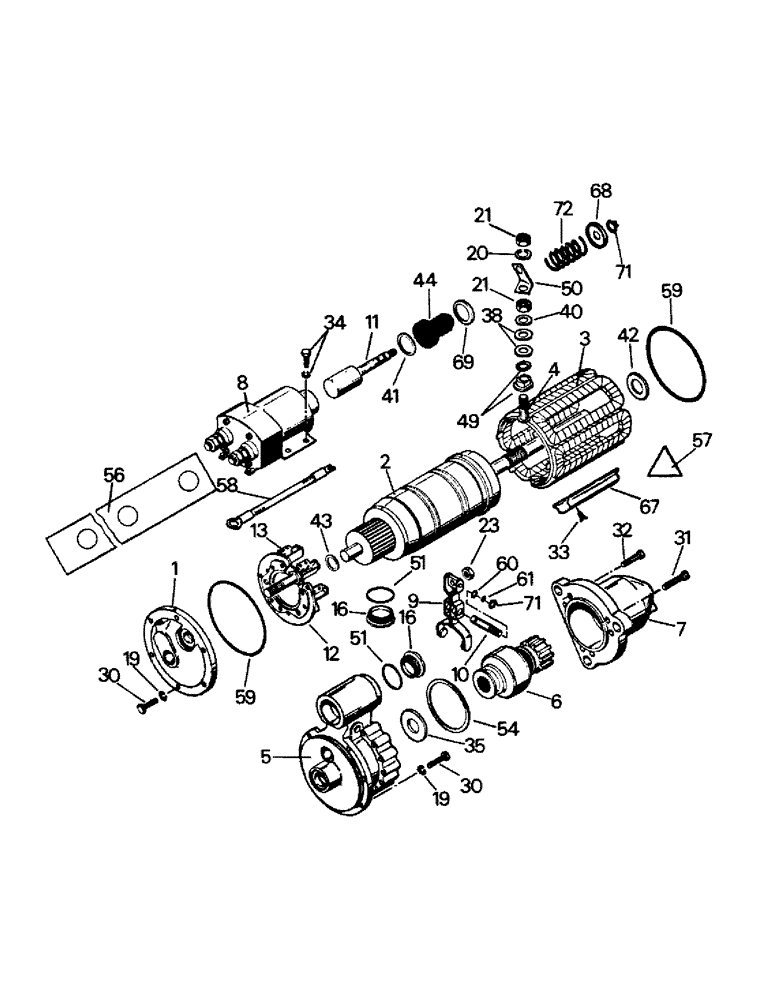

Запчасти Case IH KP-525 (02-04) - STARTER ASSEMBLY (06) - ELECTRICAL

20-1297T91

STARTING MOTOR

Starter Assy (Delco #1109841), Includes: Ref. 1 - 73

1шт.

1

20-1347T91

FUNNEL

Frame (incl Refs. 45, 64 & 73)

1шт.

2

2-1278

ARMATURE

1шт.

3

20-1348T91

COIL

Field Coil (incl Ref. 4)

1шт.

4

22-1117

STUD

Terminal Stud

1шт.

5

20-1349T91

LEVER

Housing (incl Refs. 35, 47, 62, 64, 66 & 70)

1шт.

6

20-1343T91

Drive Assy

1шт.

7

20-1325T91

HOUSING

Drive Housing (incl Refs. 46, 62 & 64)

1шт.

8

20-1350T1

SWITCH

Solenoid Switch

1шт.

9

22-1042

LEVER

Shift Lever

1шт.

10

22-1059

STUD

Shift Lever Shaft

1шт.

11

22-1124

PLUNGER

Assy

1шт.

12

2-1283

PLATE ASSY.

Plate Assy (less Brushes) (incl. Refs. 14,15,17,18, 24-27, 36, 39, 52, 53, 63, & 65)

1шт.

13

2-1284

BRUSH, COMMUTATOR

Brush

12шт.

14

2-1285

SPRING

Brush Spring (not shown)

12шт.

15

2-1286

HOLDER

Brush Holder (not shown)

6шт.

16

22-1045

PLUG

Inspection Plug

3шт.

17

19-297

LOCK WASHER,#10

Washer, Lock, , Not shown #10

12шт.

18

20-1356T1

Plate & Stud (not shown)

1шт.

19

19-115

LOCK WASHER,1/4"

1/4"

6шт.

20

19-119

LOCK WASHER,1/2"

1/2"

1шт.

21

19-289

JAM NUT,1/2" - 13, Gr 5

Jam Nut

2шт.

22

20-1329T1

NUT

Terminal Stud Nut (not shown)

1шт.

23

22-1129

JAM NUT

1шт.

24

20-1351T1

Ground Brush Holder Screw (long) (not shown)

3шт.

25

20-1352T1

Insulation Brush Holder Screw (long) (not shown)

3шт.

26

2-1296

SCREW

Ground Brush Holder Screw (short) (not shown)

3шт.

27

2-1297

SCREW

Insulation Brush Holder Screw (short) (not shown)

3шт.

28

22-1130

SCREW

Brush Lead Screw (not shown)

12шт.

29

22-1131

SCREW

Brush Plate Screw (not shown)

3шт.

30

22-1132

SELF-TAP SCREW

6шт.

31

22-1133

SCREW,Hex Soc Hd, 5/16"-18 x 1 1/2"

5шт.

32

22-1134

HEX SOC SCREW

Screw

1шт.

33

22-1135

SCREW

12шт.

34

22-1136

CLAMP

Screw & Lock Washer

4шт.

35

22-1137

WASHER

Brake Washer

1шт.

36

2-1298

WASHER

Brush Holder Screw Washer (not shown)

6шт.

37

22-1025

WASHER

Terminal Stud Washer (not shown)

2шт.

38

22-1026

WASHER

2шт.

39

20-1357T1

PLATE

Brush Insulator Plate (not shown)

1шт.

40

22-1139

WASHER

1шт.

41

22-1140

WASHER

1шт.

42

22-1142

WASHER

1шт.

43

2-1301

WASHER

Thrust Washer

1шт.

44

22-1027

BOOT

Plunger Boot

1шт.

45

20-1353T1

BUSHING

(not shown)

1шт.

46

20-1334T1

BUSHING

(not shown)

1шт.

47

20-1335T1

BUSHING

Lever Housing Bushing (not shown)

1шт.

48

22-1030

BUSHING

Terminal Insulator Package (not shown)

1шт.

49

22-1031

BUSHING

Package

1шт.

50

2-1303

CONNECTOR, ELEC

Connector

1шт.

51

22-1037

GASKET

3шт.

52

20-1361T1

Brush Holder Insulator (not shown)

3шт.

53

20-1362T1

Space Insulator Holder Plate (not shown)

3шт.

54

22-1036

GASKET

1шт.

55

2-1304

INSULATOR

Brush Plate Insulator (not shown)

1шт.

56

20-1354T1

INSULATOR

1шт.

57

2-1306

ISOLATOR

Insulator

3шт.

58

20-1355T1

Lead

1шт.

59

2-1307

O-RING

2шт.

60

20-1337T1

O-RING

1шт.

61

20-1338T1

O-RING

1шт.

62

20-1331T1

WICK

Felt Wick (not shown)

2шт.

63

20-1363T1

Spacer Ground Holder Plate (not shown)

3шт.

64

20-1339T1

CUP

Oil Reservoir Plug (not shown)

3шт.

65

20-1364T1

LARGE PLATE

Support Plate (not shown)

1шт.

66

20-1340T1

PLUG

Pipe Plug (not shown)

1шт.

67

2-1309

SHOE

Pole Shoe

6шт.

68

22-1056

RETAINER

1шт.

69

22-1057

RETAINER

1шт.

70

22-1058

OIL SEAL

(not shown)

1шт.

71

22-1060

RING, SNAP

Snap Ring

2шт.

72

22-1062

SPRING

2шт.

73

20-1366T1

WICK

Felt Wick (not shown)

1шт.
