(02-03) - TRANSMISSION ELECTRICAL

Запчасти Case IH KP-525 (02-03) - TRANSMISSION ELECTRICAL (06) - ELECTRICAL

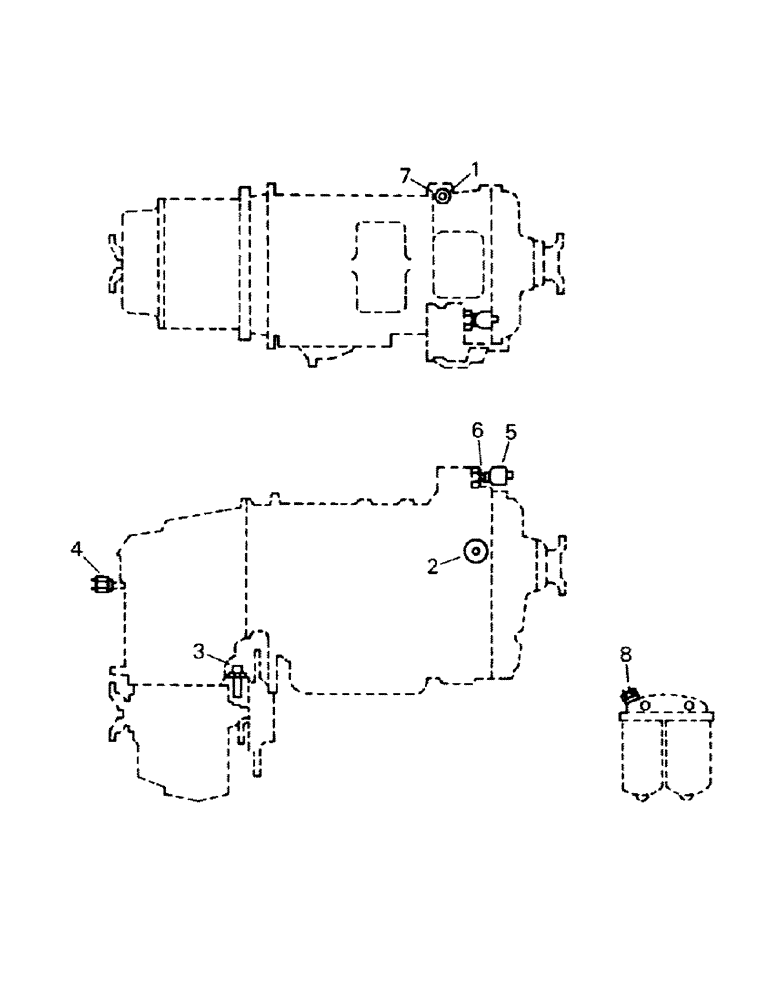

Схема запчастей Case IH KP-525 - (02-03) - TRANSMISSION ELECTRICAL (06) - ELECTRICAL
5
3
2
4
7
1
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47-4181

IGNITION SWITCH

Trans Temp Switch

1шт.

2

47-3219

SWITCH

Trans Converter Press. Switch

1шт.

3

20-1854T1

SENSOR

Magnetic Pickup

1шт.

4

20-1642T1

SWITCH

Trans Lube Oil Press. Switch

1шт.

5

47-3481

IGNITION SWITCH

Trans Oil Press. Switch

1шт.

6

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

1шт.

7

31-178

BUSHING

Reducer

1шт.

8

47-4495

SWITCH

Filter By-Pass Switch

1шт.

Выбрано товаров: 8
