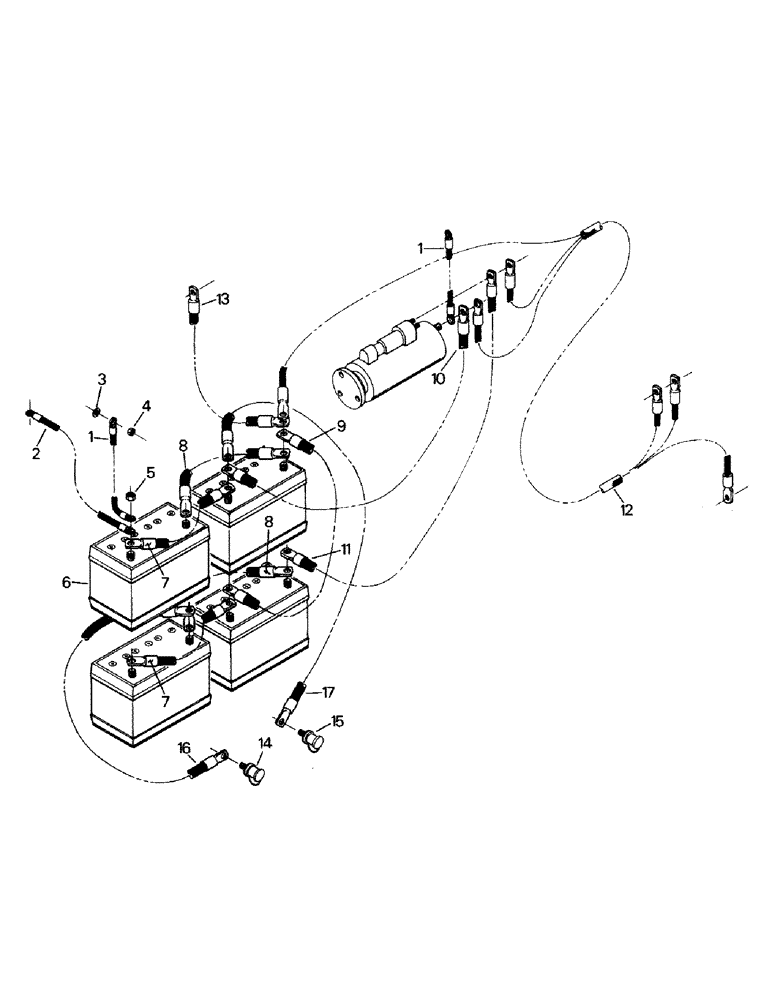

Запчасти Case IH KP-525 (02-02) - STARTER & BATTERY ELECTRICAL (06) - ELECTRICAL

1

47-4591

HARNESS

Ground Wire

2шт.

2

47-4592

HARNESS

Cab Ground Wire

1шт.

3

19-105

WASHER,1/4", SAE

2шт.

4

19-76

NUT,1/4"-20, G5

1шт.

5

19-341

LOCK NUT,3/8" - 16, GB

(01-4210)

8шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

6

2-7000

WET BATTERY

4шт.

7

47-4774

CABLE

Battery Cable

2шт.

8

47-4775

Battery Cable

2шт.

9

47-4596

CABLE

Battery Cable

1шт.

10

47-4598

CABLE

Battery Cable

1шт.

11

47-4597

CABLE

Battery Cable

1шт.

12

47-4685T1

HARNESS

Battery Cable Harness

1шт.

13

1-8773

CABLE

Junction Block Cable

1шт.

14

20-2051T1

STUD

Battery Jumper Terminal (Pos)

1шт.

15

20-2052T1

TERMINAL CONNECTOR

Battery Jumper Terminal (Neg)

1шт.

16

20-2074T1

CABLE

Battery Cable

1шт.

BATTERY CABLE MEASURES 35",LENGTH

1шт.

17

20-2075T1

CABLE

Battery Cable

1шт.

18

31-1243

Cable Protection Hose (not shown) (inserted in frame to protect battery cables)

1шт.
