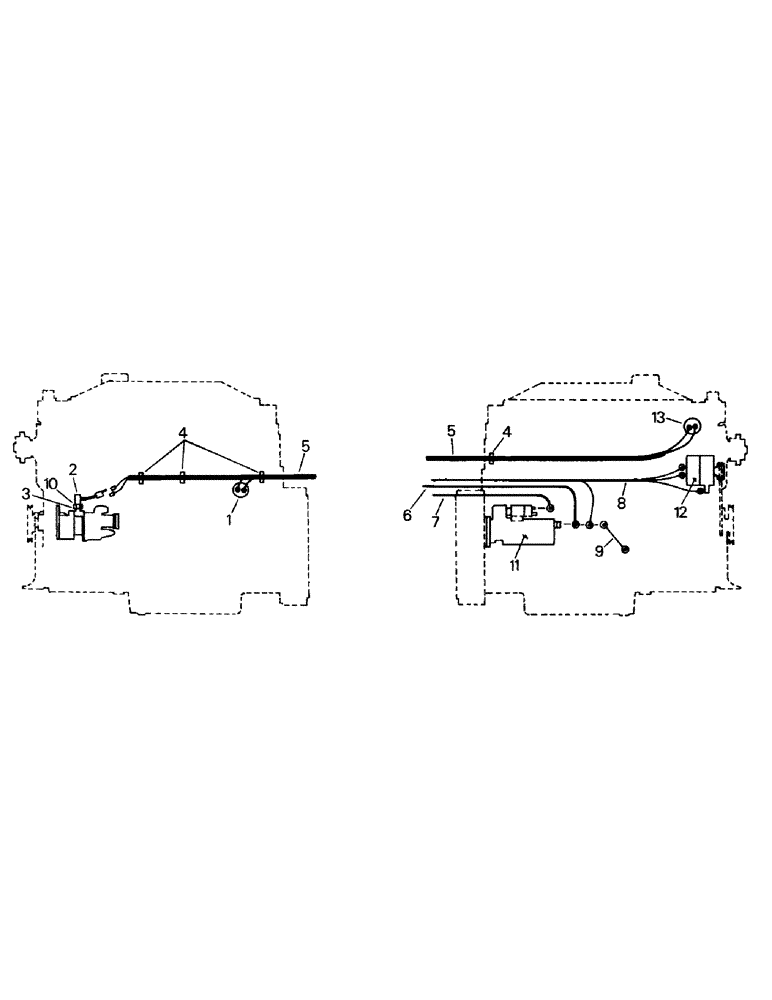

Запчасти Case IH KP-525 (02-01) - ENGINE ELECTRICAL (06) - ELECTRICAL

1

20-1643T1

SWITCH

Oil Press, Switch & Sender

1шт.

2

20-1369T1

SENDER UNIT

Tach Sending Unit

1шт.

3

90-3748T1

PIN

Tach Drive Tip

1шт.

4

22-632

CLIP

Clamp

4шт.

5

20-1760T3

HARNESS

Engine/Trans Wire Harness

1шт.

6

47-4598

CABLE

Battery Cable

1шт.

7

47-4597

CABLE

Battery Cable

1шт.

8

47-4685

HARNESS

Battery Cable Harness

1шт.

9

47-4591

HARNESS

Ground Wire

1шт.

10

90-3747T1

ADAPTER

Tach Drive Adapter

1шт.

11

Starter (see fig. 2-4)

1шт.

12

Alt (see fig. 2-6)

1шт.

13

20-1676T1

SWITCH

Water Temp Switch & Sender

1шт.
