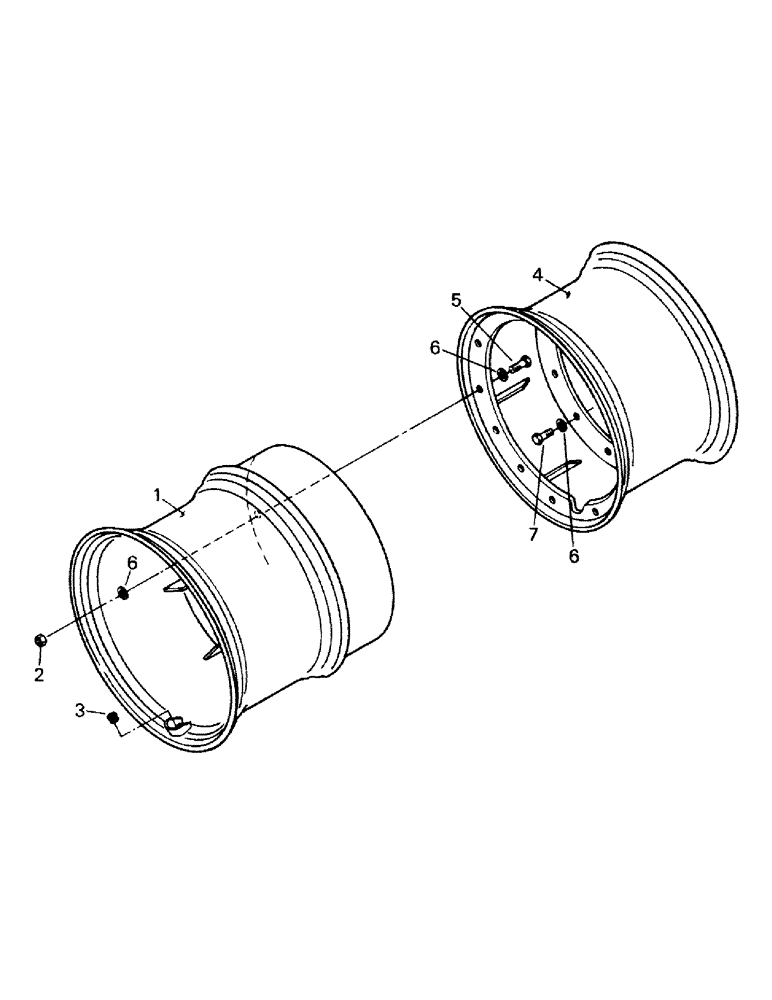

Запчасти Case IH KP-525 (04-23) - WHEELS (04) - Drive Train

1

47-4529

RIM

30.5 x 32 Dual, 27"

4шт.

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width shown is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.

1шт.

30-1212

30.5 x 32 dual, 30"

1шт.

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width shown is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.

1шт.

2

19-457

NUT,7/8"-9, G5

24шт.

3

22-521

PLUG

qty. 8 with Duals

4шт.

4

30-1226T2

RIM

30.5 x 32 Main, 27"

4шт.

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width shown is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.

1шт.

30-1239T1

WHEEL

30.5 x 32 Main, 30"

1шт.

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width shown is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.

1шт.

5

19-420

BOLT,7/8" - 9 x 3", Gr 8

Capscrew

24шт.

6

19-2975

WASHER

qty. 84 with Duals

36шт.

7

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

Capscrew

36шт.
