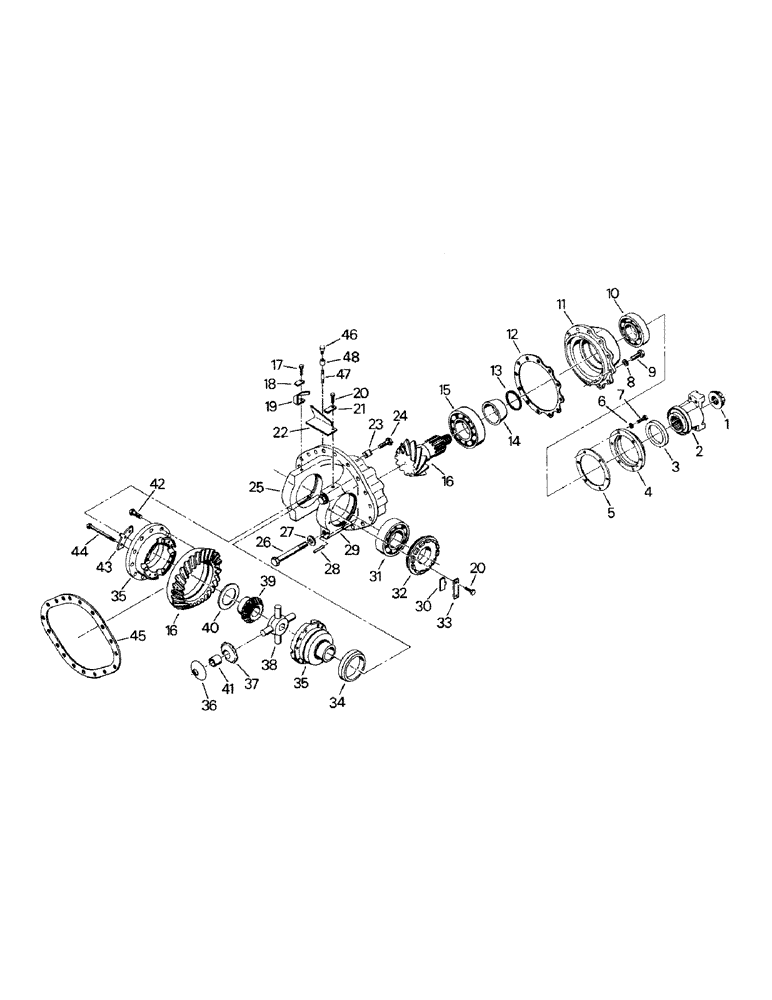

Запчасти Case IH KP-525 (04-20) - DIFFERENTIAL ASSEMBLY (04) - Drive Train

90-2569T91

DIFFERENTIAL ASSY

Diff Assy., front, consists of Ref. 1 - 44

1шт.

90-2568T91

DIFFERENTIAL ASSY

Diff Assy., rear

1шт.

1

1-6764

NUT

1шт.

Part of P/N 90-2481T91 Ring Gear and Pinion

1шт.

2

90-2508T1

YOKE

1шт.

3

90-2509T1

SEALING RING

1шт.

4

90-2510T1

COVER

1шт.

5

90-2506T1

GASKET

1шт.

6

16-1634

SPECIAL BOLT,Hex, M10 x 22mm, Cl 10.9

Lock Washer

8шт.

7

40-1170

CAPSCREW,Hex, M8 x 1.25 x 18mm, Gr 10.9

6шт.

8

16-1620

WASHER

Lock Washer

12шт.

9

40-1169

CAPSCREW,Hex, M14 x 1.5 x 40mm, Gr 10.9

12шт.

10

90-2505T1

BEARING

1шт.

11

90-2504T1

HOUSING, BEARING

Bearing Housing

1шт.

12

90-2499T1

SHIM

(1.00 mm)

1шт.

90-2500T1

SHIM

(0.50 mm)

1шт.

90-2501T1

SHIM

(0.30 mm)

1шт.

90-2502T1

SHIM

(0.20 mm)

1шт.

90-2503T1

SHIM

(0.25 mm)

1шт.

13

90-2485T1

SPACER

(6.90 mm)

1шт.

90-2486T1

SPACER

(7.00 mm)

1шт.

90-2487T1

SPACER

(7.02 mm)

1шт.

90-2488T1

SPACER

(7.04 mm)

1шт.

90-2489T1

SPACER

(7.06 mm)

1шт.

90-2490T1

SPACER

(7.08 mm)

1шт.

90-2491T1

SPACER

(7.10 mm)

1шт.

90-2492T1

SPACER

(7.20 mm)

1шт.

90-2493T1

SPACER

(7.32 mm)

1шт.

90-2494T1

SPACER

(7.44 mm)

1шт.

90-2495T1

SPACER

(7.56 mm)

1шт.

90-2496T1

RING

Spacer (7.68 mm)

1шт.

90-2497T1

SPACER

(7.80 mm)

1шт.

90-2498T1

SPACER

(7.92 mm)

1шт.

14

90-2484T1

SPACER

Bearing Spacer

1шт.

15

90-2483T1

BEARING

1шт.

16

90-2480T91

GEAR, BEVEL

Ring gear & Pinion (Front)

1шт.

90-2481T91

GEAR, BEVEL

Ring Gear & Pinion, rear, Includus Refs. 1, 42, and 43

1шт.

17

16-1581

CAPSCREW,Hex, M6 x 18mm, Gr 10.9, Full Thd

2шт.

Will only be found on some early models. They are not needed and will not be present on later models.

1шт.

18

90-2512T1

Tab Washer

1шт.

Will only be found on some early models. They are not needed and will not be present on later models.

1шт.

19

90-2514T1

BAFFLE

1шт.

Will only be found on some early models. They are not needed and will not be present on later models.

1шт.

20

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

Capscrew, Replaces 16-1517

6шт.

21

90-2517T1

Tab Washer

1шт.

Will only be found on some early models. They are not needed and will not be present on later models.

1шт.

22

90-3695T1

BAFFLE

Plate

1шт.

23

16-1520

WASHER

Tab Washer

12шт.

16-1521

WASHER

Tab Washer

6шт.

24

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

Capscrew

18шт.

90-2520T91

HOUSING

Diff Housing Assy., consists of Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

Diff Housing

1шт.

Part of P/N 90-2520T91 Diff Housing Assy.

1шт.

26

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

Capscrew

2шт.

Part of P/N 90-2520T91 Diff Housing Assy.

1шт.

27

16-1529

WASHER

Lock Washer

2шт.

Part of P/N 90-2520T91 Diff Housing Assy.

1шт.

28

16-1514

DOWEL

Pin

2шт.

Part of P/N 90-2520T91 Diff Housing Assy.

1шт.

29

NSS

NOT SOLD SEPARAT

Bearing Cap

1шт.

Part of P/N 90-2520T91 Diff Housing Assy.

1шт.

30

16-1525

LARGE PLATE

Locking Tab Washer

2шт.

16-1526

LARGE PLATE

Locking Tab Washer

1шт.

16-1527

LARGE PLATE

Locking Tab Washer

1шт.

31

90-2518T1

TAPERED BEARING

(Left)

1шт.

90-2519T1

BEARING

(Right)

1шт.

32

16-1522

SLOTTED NUT

Retaining Ring

2шт.

33

16-1524

LARGE PLATE

Tab Washer

2шт.

34

16-1564

BAFFLE

Oil, Plate, part of P/N 90-2482T91 Diff Case Halves

1шт.

90-2570T91

DIFFERENTIAL

Diff Assy., consists of Ref. 35 - 40

1шт.

35

90-2482T91

CASE ASSY.

Diff Case Halves, Includes Refs. 34 and 44

1шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

36

90-2511T1

SPACER

4шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

37

16-1561

PINION

Gear (incl Ref. 41)

4шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

38

16-1560

DIFF. SPIDER

Spider

1шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

39

16-1559

PINION

Gear

2шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

40

16-1551

SPACER

4.6 mm, .181

2шт.

Part of P/N 90-2570T91 Diff Assy.

1шт.

16-1552

SPACER

4.7 mm, .185

1шт.

16-1553

SPACER

4.8 mm, .188

1шт.

16-1554

SPACER

(4.9 mm)

1шт.

16-1555

SPACER

(5.0 mm)

1шт.

16-1556

SPACER

(5.1 mm)

1шт.

16-1557

SPACER

(5.2 mm)

1шт.

16-1558

SPACER

(5.3 mm)

1шт.

41

16-1562

BUSHING

4шт.

42

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

Capscrew

12шт.

Part of P/N 90-2481T91 Ring Gear and Pinion

1шт.

43

16-1546

LARGE PLATE

Locking Plate

6шт.

Part of P/N 90-2481T91 Ring Gear and Pinion

1шт.

44

40-1168

CAPSCREW,Hex, M12 x 1.5 x 100mm, Gr 10.9

part of P/N 90-2482T91 Diff Case halves

12шт.

45

16-1531

GASKET

1шт.

46

1-1359

BREATHER

Vent

1шт.

47

31-1841

CONDUIT

Nipple

1шт.

48

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

Coupling

1шт.
