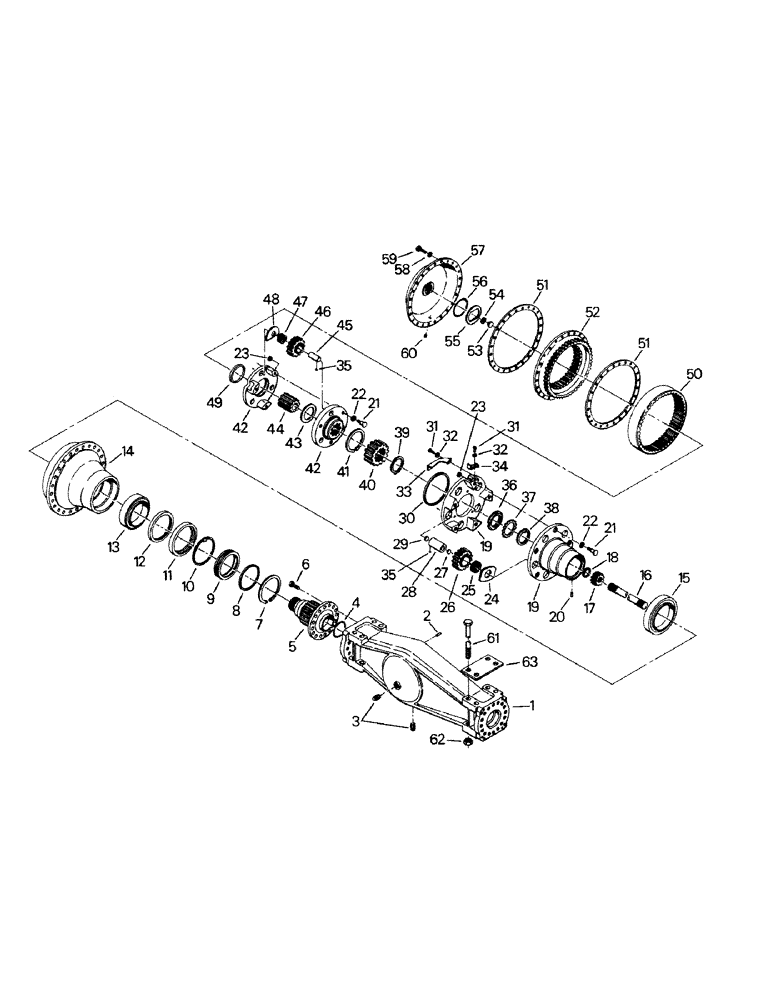

Запчасти Case IH KP-525 (04-18) - AXLE ASSEMBLY (04) - Drive Train

90-2781T91

AXLE

Assy (Front)

1шт.

90-2782T91

AXLE

Assy (Rear)

1шт.

90-2571T91

HOUSING

Axle Housing Assy (incl Refs. 1-8 & 36-38)

1шт.

1

90-2522T1

AXLE HOUSING

1шт.

2

16-1530

DOWEL

Pin

1шт.

3

90-2523T1

PLUG

2шт.

4

16-1505

O-RING,136mm ID x 15mm Width

2шт.

5

90-2524T1

AXLE

Stub

2шт.

6

90-2525T1

CAPSCREW,M14 x 80mm

32шт.

7

90-2528T1

OIL SEAL

Snap Ring

2шт.

8

90-2529T1

SEALING RING

Seal

2шт.

9

90-2530T91

OIL SEAL

Shoulder Ring (incl Refs. 7 & 8)

2шт.

10

90-2531T1

DISC

2шт.

11

90-2532T1

SEAL

Retainer

2шт.

12

90-2533T1

SEALING RING

2шт.

13

1-7162

BEARING

2шт.

14

90-2534T1

HUB

Wheel Hub

2шт.

15

16-1535

TAPERED BEARING,220 mm ID x 340 mm OD x 76 mm

Bearing

2шт.

90-2575T91

SHAFT

Axle Shaft Assy (1105.6 mm), Includes: Ref. 16 - 18

1шт.

90-2576T91

SHAFT

Axle Shaft Assy (1236.5 mm)

1шт.

16

90-2535T1

SHAFT

Axle Shaft (1105.6 mm)

1шт.

90-2536T1

SHAFT

Axle Shaft (1236.5 mm)

1шт.

17

90-2537T1

SUN GEAR

2шт.

18

16-1596

RING, SNAP

Snap Ring

2шт.

90-2573T91

CARRIER

Planet Carrier Assy, consists of ref. nos. 19-34

2шт.

19

90-2539T91

CARRIER

Planet Carrier Sub-Assy (incl Refs. 21-23)

2шт.

20

90-2538T1

PLUG

2шт.

21

16-1608

SCREW,Hex Shldr

Capscrew

16шт.

22

16-1599

WASHER

16шт.

23

16-1598

NUT

16шт.

24

90-2540T1

LARGE PLATE

Thrust Plate

20шт.

25

90-2541T1

NEEDLE BEARING

20шт.

26

90-2542T1

GEAR

Planet Gear

10шт.

90-2574T91

PIN ASSY.

Planet Pin Assy, consists of ref. nos. 27-29

1шт.

27

90-2545T1

PLUG

4шт.

28

90-2543T1

PIN

Planet Pin

10шт.

29

90-2546T1

PLUG

4шт.

30

90-2544T1

RING, SNAP

Snap Ring

2шт.

31

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

Capscrew (Replaces 16-1517)

10шт.

32

01-8332

Lock Washer (Replaces 16-1634)

10шт.

33

90-2547T1

PLATE

Baffle Plate

2шт.

34

90-2549T1

PLATE

Baffle Plate

2шт.

35

16-1607

BALL

16шт.

36

90-2527T1

NUT

Shaft End Nut

2шт.

37

1-6701

WASHER

Lock Washer

2шт.

38

90-2526T1

DISC

2шт.

90-2572T91

CARRIER

Planet Carrier Assy (also incl Refs. 21-23 & 35), Includes: Ref. 39 - 49

2шт.

39

1-6726

CIRCLIP

Snap Ring

2шт.

40

90-2563T1

SUN GEAR

2шт.

41

90-2562T1

RING, SNAP

Snap Ring

2шт.

42

90-2559T91

CARRIER

Planet Carrier Sub-Assy (incl Refs. 21-23)

2шт.

43

90-2561T1

RING, SNAP

Retainer Ring

2шт.

44

90-2560T1

GEAR

2шт.

45

90-2567T1

PIN

Planet Pin

6шт.

46

90-2566T1

GEAR

Planet Gear

6шт.

47

90-2565T1

NEEDLE BEARING

12шт.

48

90-2564T1

LARGE PLATE

Thrust Plate

12шт.

49

90-2558T1

RING

2шт.

50

90-2557T1

RING

Gear

2шт.

51

90-2551T1

GASKET

4шт.

52

90-2556T1

RING

Double Ring Gear

2шт.

53

90-2555T1

LARGE PIN

Thrust Disc

2шт.

54

90-2554T1

SHIM

1шт.

55

90-2553T1

DISC

2шт.

56

90-2552T1

SHIM

1шт.

57

90-2550T1

REAR COVER

Cover

2шт.

58

16-1620

WASHER

Lock Washer

48шт.

59

40-1171

BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9

Capscrew

48шт.

60

90-2548T1

PLUG

2шт.

61

19-5465

BOLT,1 1/4" x 7", Gr 8

Capscrew

8шт.

62

19-459

NUT,1 1/4"-7, G5

8шт.

63

90-2722T1

Spacer (Rear Axle only)

2шт.
