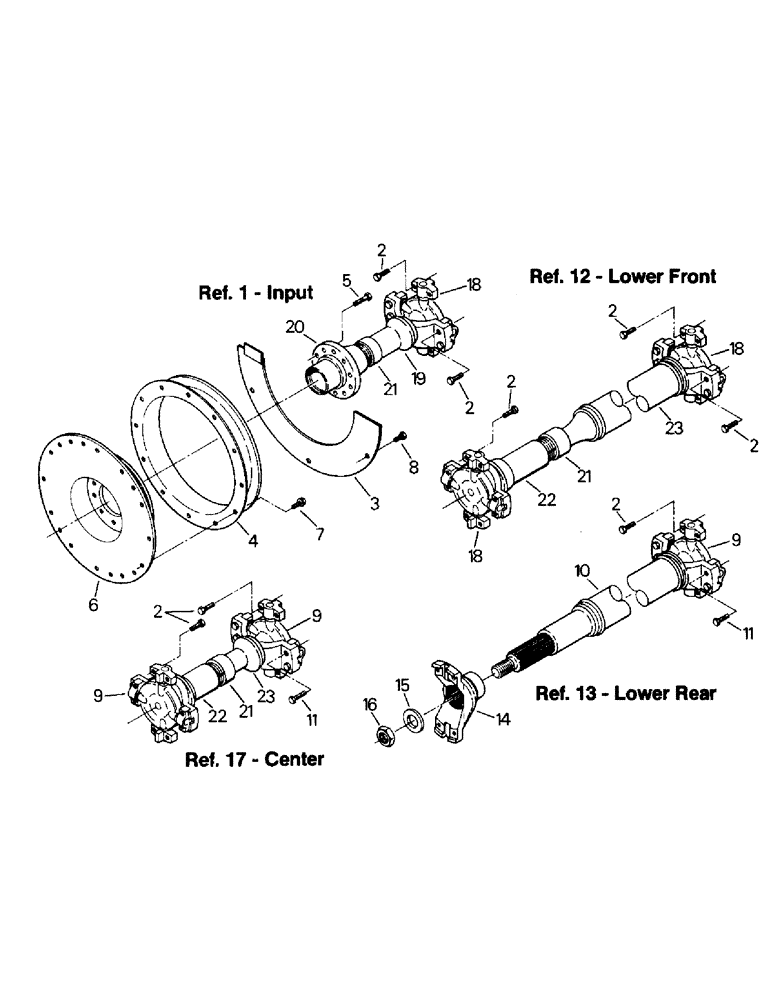

Запчасти Case IH KP-525 (04-17) - DRIVESHAFTS (04) - Drive Train

1

90-3707T91

DRIVE SHAFT

Driveshaft Assy (Input)

1шт.

2

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Capscrew

1шт.

3

90-4390T1

COVER

1шт.

4

90-4358T2

SLINGER

Flywheel Slinger

1шт.

5

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

10шт.

6

90-3708T2

DAMPER

Vibration Damper

1шт.

7

19-5851

BOLT,Hex, 1/2" - 13 x 1", Gr 8

Capscrew

12шт.

8

9423155

BOLT,7/16" - 14 x 3/4", Gr 8

Capscrew

6шт.

9

90-1538T1

BEARING CUP

Spider & Bearing Kit

1шт.

10

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

May not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy must be purchased.

1шт.

11

17-163

BOLT,Hex, 7/16" - 20 x 1.25", Gr 8

Capscrew

1шт.

12

90-1905T91

DRIVE SHAFT

Driveshaft Assy (Lower Front)

1шт.

13

90-2780T91

DRIVE SHAFT

Driveshaft Assy (Lower Rear)

1шт.

14

47-3065

YOKE

1шт.

15

19-701

WASHER,1 1/4"

1шт.

16

14-59T1

NUT

(Replaces 14-59)

1шт.

17

47-4250T91

DRIVE SHAFT

Driveshaft Assy (Center)

1шт.

18

1-9994T1

U-JOINT SPIDER

Spider & Bearing Kit

1шт.

19

NSS

NOT SOLD SEPARAT

Shaft Assy

1шт.

May not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy must be purchased.

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve Assy

1шт.

May not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy must be purchased.

1шт.

21

2-3842T1

SEAL RETAINER

Stuffing Cap Assy (incl P/N's 17-170, 17-172 & 17-171 which may no longer be purchased separately)

1шт.

22

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

May not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy must be purchased.

1шт.

23

NSS

NOT SOLD SEPARAT

Slip Yoke

1шт.

May not be purchased separately; therefore, if any of these items are needed, a complete driveshaft assy must be purchased.

1шт.
