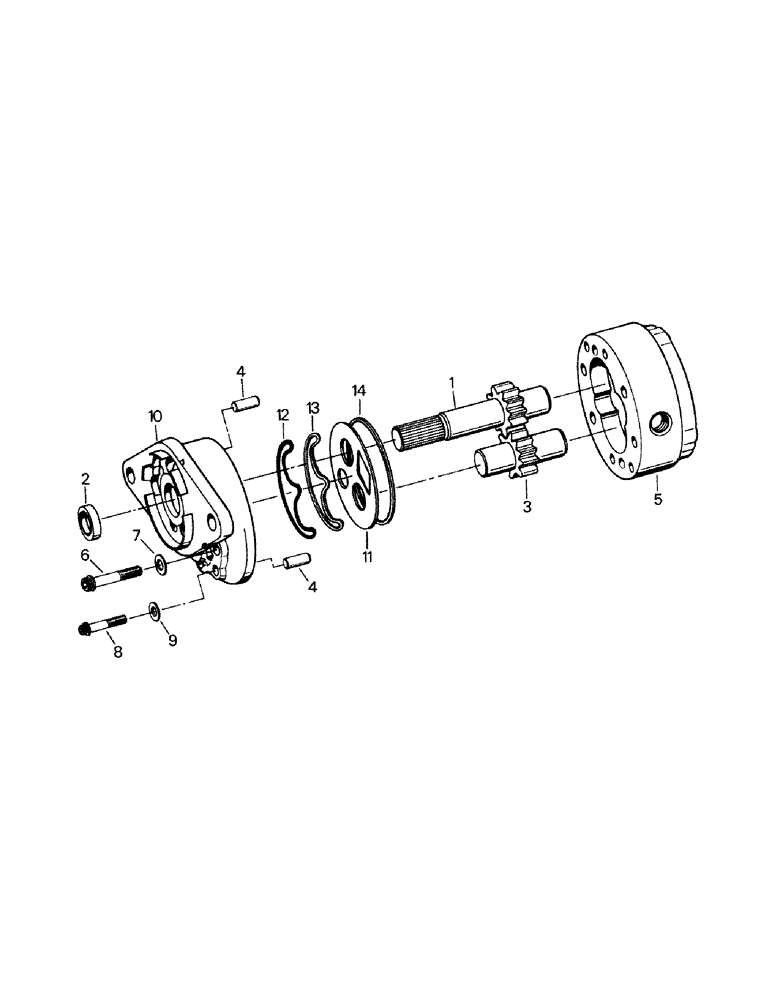

Запчасти Case IH KP-525 (04-16) - TRANSMISSION LUBE PUMP (04) - Drive Train

90-3911T91

PUMP

Lube Pump Assy, Includes: Ref. 1 - 11

1шт.

50-1254T1

PUMP

Seal Kit (incl Refs. 11-14)

1шт.

1

50-1246T1

SHAFT

Drive Gear

1шт.

2

50-1253T1

OIL SEAL

Seal (incl in Kit P/N 50-1254t1 or sold separately)

1шт.

3

50-1245T1

SHAFT

Idler Gear

1шт.

4

50-1251T1

DOWEL

Pin

2шт.

5

50-1248T91

COVER

Body Assy

1шт.

6

19-178

CAPSCREW,3/8" - 16 x 1 1/2", Gr 8

Socket Head Capscrew

4шт.

7

18-1260

SPACER

Washer

4шт.

8

9421625

SCREW,5/16" - 18 x 1.25", Gr 8

Socket Head Capscrew

4шт.

9

50-1252T1

WASHER

4шт.

10

90-3912T91

VALVE BODY

Body Assy (incl Ref. 2)

1шт.

11

NSS

NOT SOLD SEPARAT

Wear Plate

1шт.

12

NSS

NOT SOLD SEPARAT

Pre-Load Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Load Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Ring Seal

1шт.
