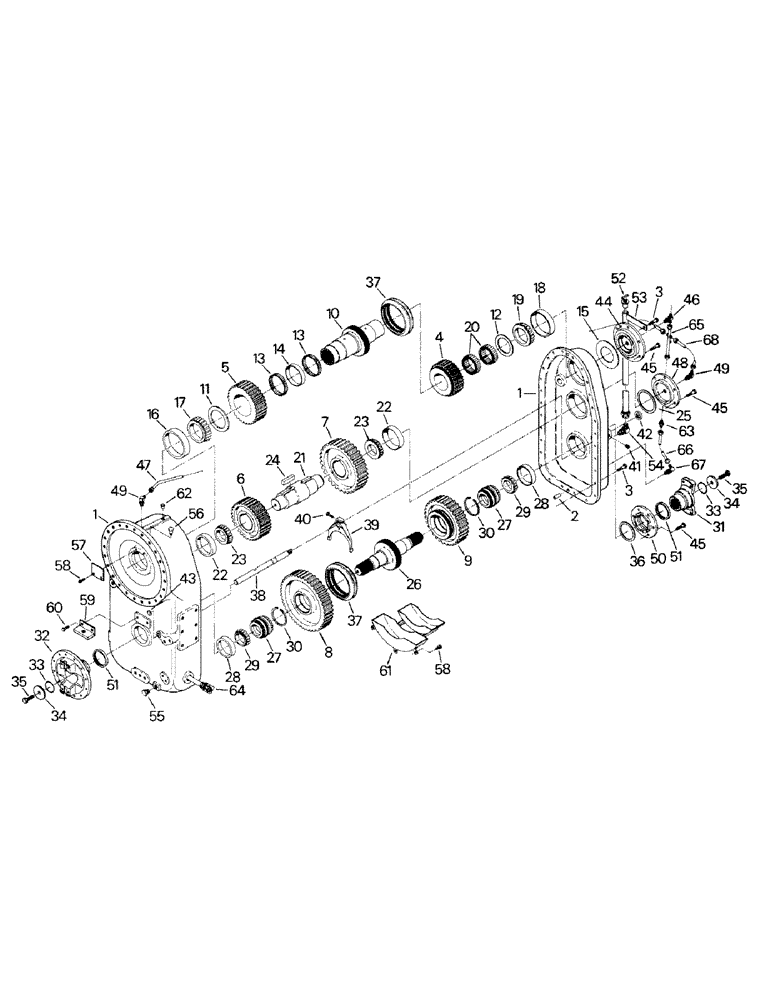

Запчасти Case IH KP-525 (04-13) - TRANSFER CASE ASSEMBLY (04) - Drive Train

90-3761T91

GEARBOX ASSY

Transfer Case Assy, Includes: Ref. 1 - 69

1шт.

1

90-3746T1

HOUSING

Transfer Case Housing

1шт.

2

19-5484

PIN,5/8" x 1 1/2"

Dowel Pin

2шт.

3

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew

29шт.

4

90-3607T1

GEAR

1шт.

5

90-3608T2

GEAR

1шт.

6

90-3609T1

GEAR

1шт.

7

90-3610T1

GEAR

1шт.

8

90-3611T1

GEAR

1шт.

9

90-3612T1

GEAR

1шт.

10

90-3689T2

SHAFT

Input Shaft

1шт.

11

90-3685T1

SPACER

Bearing Spacer

1шт.

12

90-3684T1

SPACER

Bearing Spacer

1шт.

13

90-4398T1

NEEDLE BEARING,1" OD x 0.25"

Needle Bearing

130шт.

14

90-4399T1

SPACER

Needle Spacer

1шт.

15

90-3768T1

SHIM

(.005)

1шт.

90-3769T1

SHIM

(.007)

1шт.

90-3770T1

SHIM

(.020)

1шт.

16

90-3678T1

BEARING, CUP

Bearing Cup

1шт.

17

90-3677T1

BEARING

Cone

1шт.

18

90-3675T1

BEARING, CUP,168.3mm OD x 30.21mm W

Bearing Cup

1шт.

19

90-3676T1

ROLLER BEARING,95.25mm ID x 41.35mm W

Bearing Cone

1шт.

20

90-3680T1

ROLLER BEARING,4" ID x 4.5" OD x 1.5"

Roller Bearing

2шт.

21

90-3682T1

SHAFT

Middle Shaft

1шт.

22

90-3673T1

CUP

Bearing Cup

2шт.

23

90-3674T1

CONE

Bearing Cone

2шт.

24

90-3671T1

KEY

2шт.

25

90-3771T1

SHIM

(.005)

1шт.

90-3772T1

SHIM

(.007)

1шт.

90-3773T1

SHIM

(.020)

1шт.

26

90-3683T1

SHAFT

Output Shaft

1шт.

27

90-3679T1

BEARING

Two-Row Bearing Assy

2шт.

28

1-2255

BEARING, CUP,4.8125" OD x 1.5"

Bearing Cup

2шт.

29

90-3672T1

BEARING

Cone

2шт.

30

90-3681T1

OIL SEAL

Internal Retaining Ring

2шт.

31

90-3750T1

LINKAGE YOKE

Yoke

1шт.

32

90-3751T1

FORK

Yoke

1шт.

33

31-2223

O-RING

2шт.

34

19-5733

WASHER

2шт.

35

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

2шт.

36

90-3774T1

SHIM

(.005)

1шт.

90-3775T1

SHIM

(.007)

1шт.

90-3776T1

SHIM

(.020)

1шт.

37

90-3618T1

COLLAR

Clutch Collar

2шт.

38

90-3617T1

ROD

Shifter Rod

2шт.

39

90-3620T1

FORK

Shifter Fork

2шт.

40

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Capscrew

2шт.

41

1-1852

PLUNGER

Ball Plunger

2шт.

42

1-1850

SEAL

2шт.

43

90-1716T1

PLUG

1шт.

44

90-3766T1

CAP

End Cap

1шт.

45

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew

17шт.

46

31-2324

TEE

Orifice Tee

1шт.

47

90-4291T1

TUBE ASSY.,.375" OD

Tube

1шт.

48

90-3624T1

CAP

End Cap

1шт.

49

31-2400

ADAPTER

Orifice Elbow

2шт.

50

90-3622T1

CAP

End Cap

1шт.

51

90-3779T1

SEAL

2шт.

52

90-3939T1

DIPSTICK

1шт.

53

90-3938T1

TUBE,23.1, 5.25 mm L

Dipstick Tube

1шт.

54

31-2250

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

55

9410363

PLUG

1шт.

56

1-1359

BREATHER

Vent

1шт.

57

90-3762T1

PLATE

Deflector Plate

1шт.

58

19-5842

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Flanged Capscrew

5шт.

59

90-3763T1

BRACKET

Sensor Bracket

1шт.

60

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

2шт.

61

90-4243T1

BAFFLE

1шт.

62

31-2286

PLUG

1шт.

63

90-4669T1

VALVE

Check Valve

1шт.

64

90-4251T1

TUBE

1шт.

65

90-4670T1

TUBE ASSY.,0.5" OD x 6" L

Tube

1шт.

66

90-4671T1

TUBE,.5" OD x 17.35" L

1шт.

67

31-1434

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

68

90-4241T1

TUBE,.375" OD

1шт.

69

1-1055

SEALANT

RTV Sealant (not shown)

1шт.
