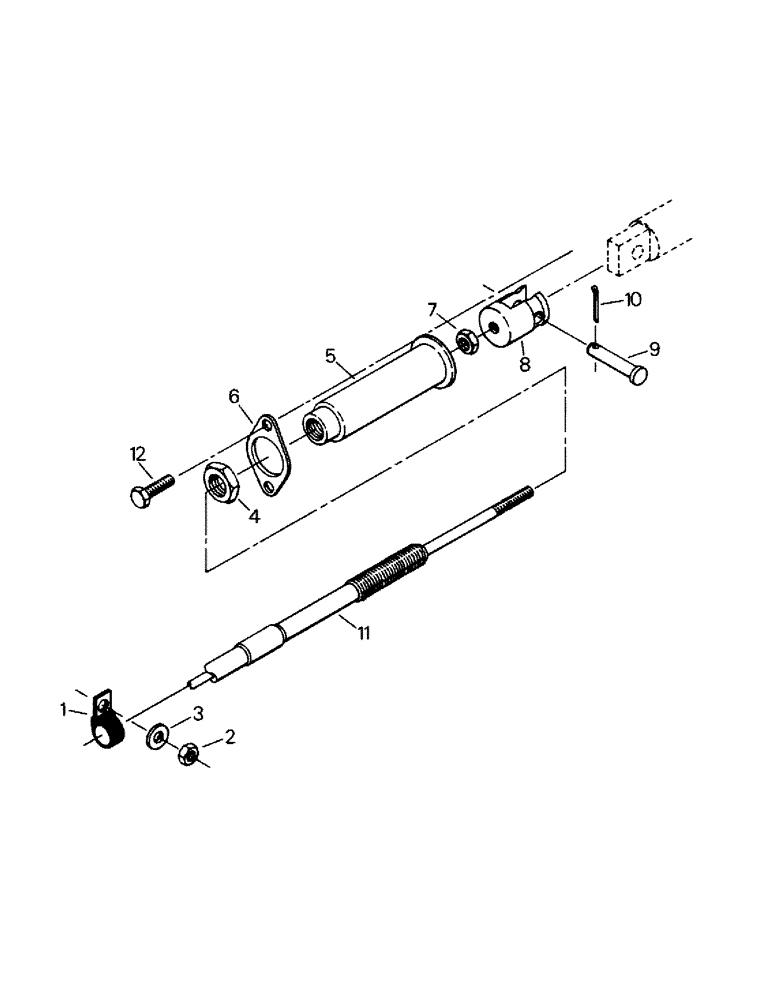

Запчасти Case IH KP-525 (04-12) - TRANSFER CASE SHIFTING (04) - Drive Train

1

31-1633

Clamp

2шт.

2

19-76

NUT,1/4"-20, G5

2шт.

3

19-223

WASHER,1/4"

2шт.

4

19-885

JAM NUT

Jam Nut

2шт.

5

2-4692T1

ROPE GUIDE

Enclosure

2шт.

6

2-4693T1

RETAINER

2шт.

7

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

2шт.

8

2-4752T1

FORK

Yoke

2шт.

9

19-145

CLEVIS PIN,3/8" x 1.06"

2шт.

10

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

2-5310T1

CABLE

Control Cable (125")

1шт.

2-6864T1

CABLE

Control Cable (98-1/2")

1шт.

12

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

4шт.
