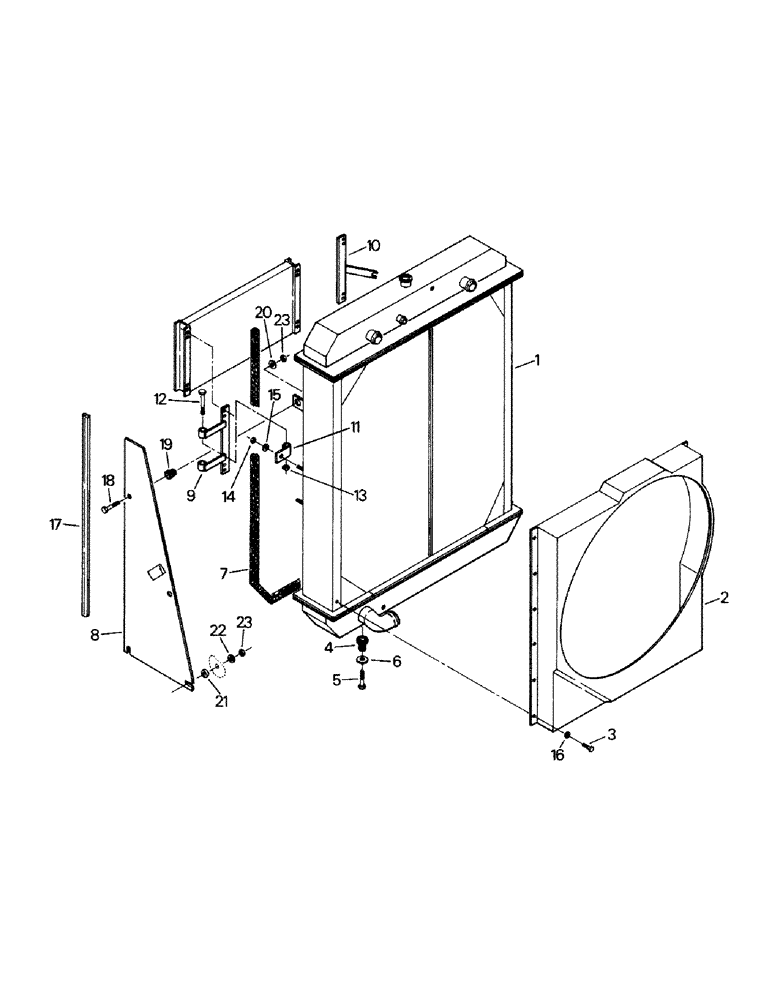

Запчасти Case IH KP-525 (04-08) - RADIATOR MOUNTING (04) - Drive Train

1

Radiator Assy (see fig 4-10)

1шт.

2

47-4765T1

SHROUD

1шт.

3

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

11шт.

4

47-4208

RUBBER BUSHING

Rubber Mount

2шт.

5

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

Capscrew

2шт.

6

19-806

WASHER

2шт.

7

70-2922T1

FOAM

1шт.

8

70-2909T1

Support (Left)

1шт.

70-2912T1

Support (Right)

1шт.

9

47-4526

HINGE

Cooler Hinge

1шт.

10

47-4527

LATCH

Cooler Latch

1шт.

11

51-440

HINGE

2шт.

12

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Capscrew

2шт.

13

232-4136

LOCK NUT,3/8"-16, GC

2шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

15

19-107

WASHER

3шт.

16

19-700

WASHER,5/16"

11шт.

17

70-2924T1

Seal

2шт.

18

19-46

BOLT,1/2" - 13 x 2", Gr 5

Capscrew

2шт.

19

18-511

MOUNTING PARTS

Rubber Mount

2шт.

20

19-500

WASHER

2шт.

21

70-2908T1

Bushing

2шт.

22

19-109

WASHER,1/2"

4шт.

23

19-81

NUT,1/2"-13, G5

6шт.
