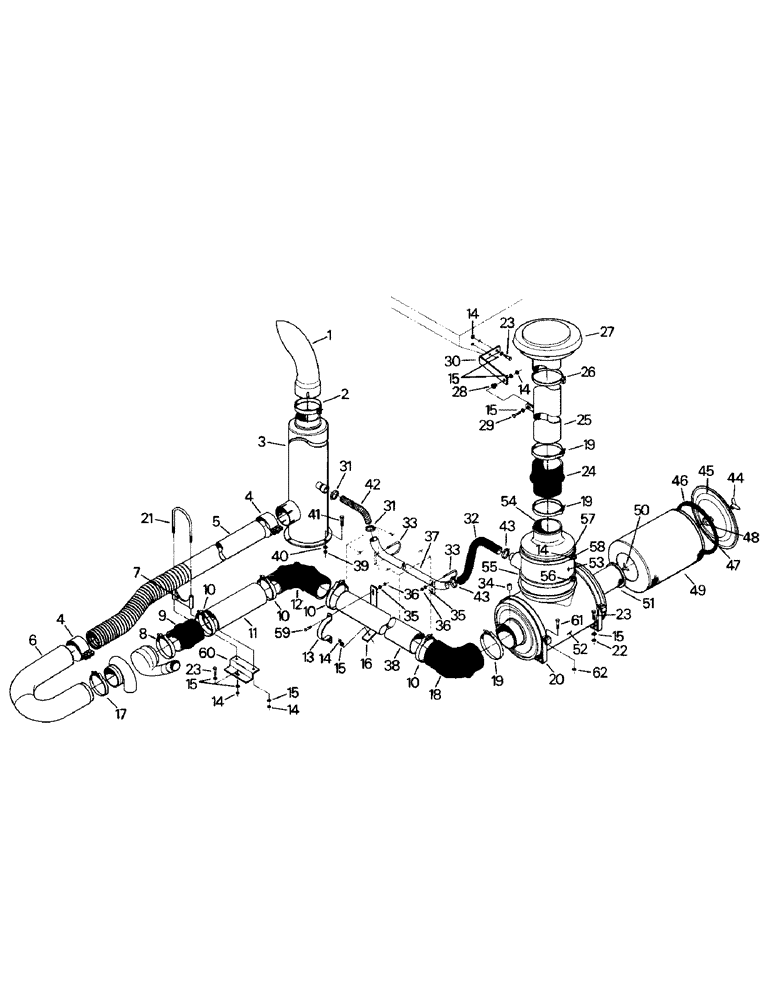

Запчасти Case IH KP-525 (04-06) - INTAKE & EXHAUST SYSTEM (04) - Drive Train

1

45-255

MUFFLER

Exhaust Stack

1шт.

2

32-341

CLAMP

1шт.

3

90-2239T1

MUFFLER

1шт.

4

31-1061

MOUNTING CLIP

Clamp

2шт.

5

47-4727

TUBE

1шт.

6

47-4357

ELBOW

1шт.

7

32-323

STIRRUP

Saddle

1шт.

8

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

1шт.

9

9-76

HOSE,6.00" ID x 6.00"

1шт.

10

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

4шт.

11

47-4522

PIPE, EXHAUST SYSTEM

Tube

1шт.

12

9-22

ELBOW

Rubber Elbow

1шт.

13

90-4146T1

Tube Strap

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

9шт.

15

19-107

WASHER

12шт.

16

47-4546

Bracket

1шт.

17

31-1324

CLAMP

1шт.

18

47-3309

ELBOW

Rubber Elbow

1шт.

19

32-287

CLAMP,#212, 7.50"-7.71", T-Bolt

3шт.

20

9-25

BAND

Mounting Band (incl Refs. 61 & 62)

2шт.

21

32-322

U-BOLT,3/8" - 16 x 6.62"

1шт.

22

232-4136

LOCK NUT,3/8"-16, GC

4шт.

23

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

7шт.

24

9-73

HOSE

Hump Hose

1шт.

25

47-4528

TUBE

Inlet Stack

1шт.

26

1-2634

CLAMP

1шт.

27

9-120

CAP ASSY.

Air Inlet Hood

1шт.

28

1-3528

MOUNTING PARTS

Rubber Mount

1шт.

29

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

1шт.

30

47-3855T1

BRACKET

1шт.

31

32-137

CLAMP,#38, 2.06"-2.37", T-Bolt

2шт.

32

31-2291

HOSE

(Order 32-1012T1 - bulk hose)

1шт.

33

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

U-Bolt

2шт.

34

29-111

DIPSTICK

Condition Indicator

1шт.

35

19-700

WASHER,5/16"

6шт.

36

19-77

NUT,5/16"-18, G5

6шт.

37

47-3817

AIR TUBE

Aspirator Tube

1шт.

38

47-4374

TUBE

1шт.

39

19-79

NUT,7/16"-14, G5

3шт.

40

19-108

WASHER,7/16"

3шт.

41

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

Capscrew

3шт.

42

90-4145T1

TUBE,2 mm ID x 2.25 mm OD x 17 mm L

Flex Tube

1шт.

43

31-1283

MOUNTING CLIP

Clamp

2шт.

1-3897

AIR CLEANER

Assy, consists of ref. nos. 44-58

1шт.

2-1195

AIR INTAKE TUBE

Body Assy, consists of ref. nos. 44-51

1шт.

44

45-219

NUT

Wing Nut

1шт.

7-1008

COVER

Assy, consists of ref. nos. 45-46

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

46

7-1012

CATALOG

Gasket

1шт.

47

45-216

CLIP,ELECTRICAL

Clip

1шт.

48

45-218

NUT

Wing Nut

1шт.

49

1-3898

FILTER

Primary Element

1шт.

50

7-1006

NUT

Wing Nut Assy

1шт.

51

1-3899

ELEMENT

Safety Element

1шт.

52

NSS

NOT SOLD SEPARAT

Body

1шт.

53

7-1009

PRECLEANER

Assy (incl Refs.14, 54 & 58)

1шт.

54

1-2623

ADAPTER

Assy

1шт.

55

1-2625

CLAMP

Assy (incl Ref. 56)

2шт.

56

19-1123

SCREW,Sl Pan Hd, 3/8" - 16 x 2 3/4"

Machine Screw

2шт.

57

1-2624

O-RING

1шт.

58

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Capscrew

1шт.

59

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Capscrew

2шт.

60

90-1446T1

BRACKET

1шт.

61

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

Capscrew

2шт.

62

19-508

LOCK NUT

Lock Nut

2шт.
