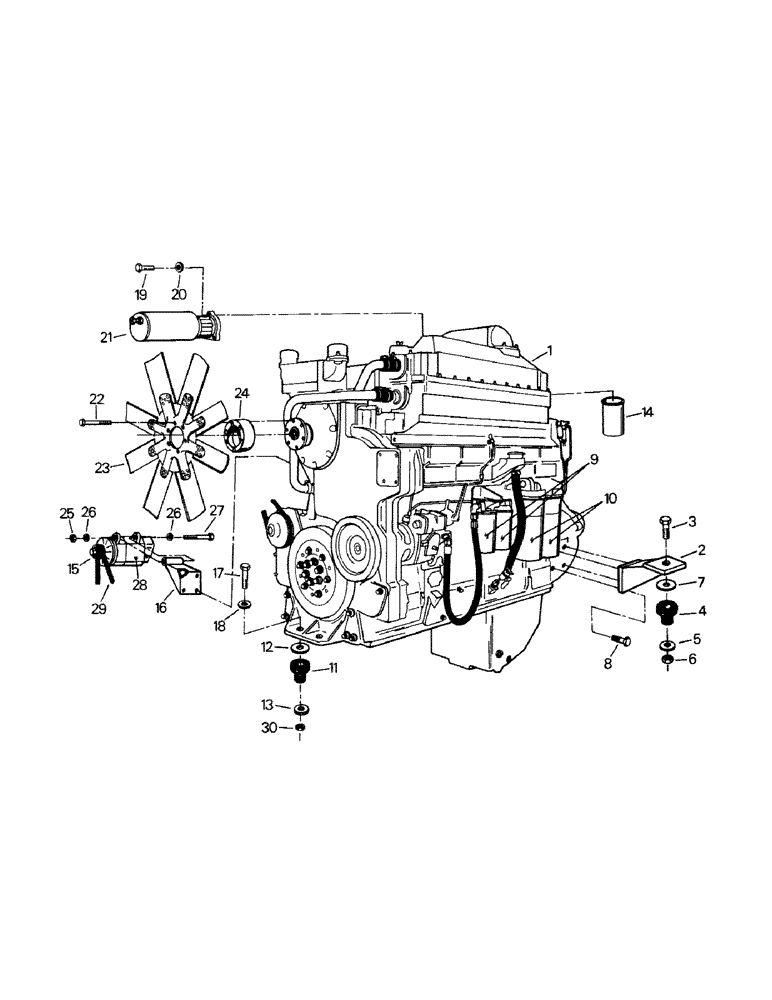

Запчасти Case IH KP-525 (04-01) - ENGINE & ATTACHING PARTS (04) - Drive Train

1

90-3691T1

ENGINE ASSEMBLY

Engine (KTA 1150 - 525 HP)

1шт.

2

47-3075

MOUNTING PARTS

Engine Mount

2шт.

3

19-566

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

Capscrew

2шт.

4

47-4172

SHOCK ABSORBER

Rubber Mount

2шт.

5

19-112

WASHER,3/4"

2шт.

6

19-84

NUT,3/4"-10, G5

2шт.

7

19-5518

WASHER

1шт.

8

19-1106

BOLT,Hex, 5/8" - 11 x 1.25, Gr 8, Full Thd

Capscrew

8шт.

9

28-35

FUEL FILTER

2шт.

10

1-2187

ENGINE OIL FILTER

Oil Filter

2шт.

11

24-231

RUBBER MOUNTING

Rubber Mount

2шт.

12

51-128

WASHER

2шт.

13

19-408

WASHER

2шт.

14

28-31

FILTER

Water Filter

1шт.

15

2-3785T1

PULLEY

Alt Pulley

1шт.

16

NAP

Alt Mount (Cummins part)

1шт.

17

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

Capscrew

2шт.

18

19-711

WASHER,5/8", SAE

2шт.

19

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

Capscrew

3шт.

20

19-912

WASHER

3шт.

21

Starter (see fig. 2-4)

1шт.

22

442734

CAPSCREW,1/2" - 13 x 4", Gr 8

6шт.

23

47-4115

FAN

1шт.

24

47-4330

SPACER

Fan Spacer

1шт.

25

19-81

NUT,1/2"-13, G5

1шт.

26

19-109

WASHER,1/2"

2шт.

27

19-942

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 8

Capscrew

1шт.

28

Alt (see fig. 2-6)

1шт.

29

1-3983

V-BELT,0.70" W x 36.00" L

Alternator 0.70" W x 36.00" L

1шт.

30

19-83

NUT,5/8"-11, G5

2шт.
