Запчасти Case IH KP-525 (03-09) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control

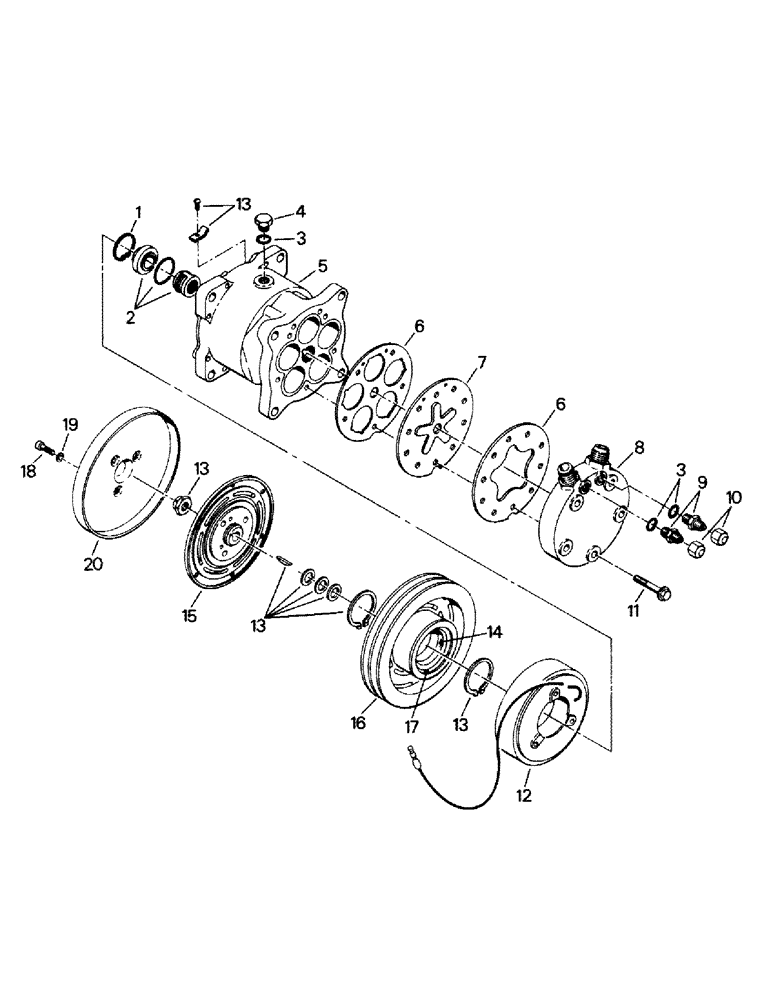

Схема запчастей Case IH KP-525 - (03-09) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control
15
3
6
9
20
19
14
6
10
13
8
16
13
3
13
4
5
18
12
2
7
13
1
11
17

Артикул

Название

Примечание

Количество

60-2921T91

COMPRESSOR

A/C Compressor Assy, consists of ref. nos. 1-17

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

KP-525 STEIGER SERIES IV TIGER TRACTOR (1/83-12/83), Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

A/C Compressor Body Assy (also incl Ref. 13), consists of ref. nos. 1-11

1шт.

1

1-2435

RING, SNAP

Snap Ring

1шт.

2

60-3091T1

SEAL KIT

Seal Kit

1шт.

3

1-2437

O-RING

3шт.

4

A49667

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

Compressor Body

1шт.

6

25-231

GASKET KIT

Kit

1шт.

7

60-3092T91

PLATE

Valve Plate Assy (incl Ref. 6)

1шт.

8

60-3093T1

HEAD (CYLINDER)

Cylinder Head (incl Ref. 6)

1шт.

9

1-2440

FITTING

Service Port

2шт.

10

1-2441

CAP

Service Port Cap

2шт.

11

1-2438

SCREW,Hex Flg Hd

Flanged Capscrew

5шт.

12

25-237

Coil

1шт.

13

60-3095T1

SET OF WASHERS

Accessory Kit

1шт.

1-3759

CLUTCH HOUSING

Pulley & Front Plate Assy, consists of ref. nos. 14-17

1шт.

14

35-1064

BEARING ASSY

Kit (incl Ref. 17)

1шт.

15

NSS

NOT SOLD SEPARAT

Clutch

1шт.

16

NSS

NOT SOLD SEPARAT

Pulley

1шт.

17

1-3760

BEARING

Dust Seal

1шт.

18

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Socket Head Capscrew

3шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

Washer

3шт.

20

25-194

Dust Shield 1/4"-28, G5, Thk

1шт.

Выбрано товаров: 25
