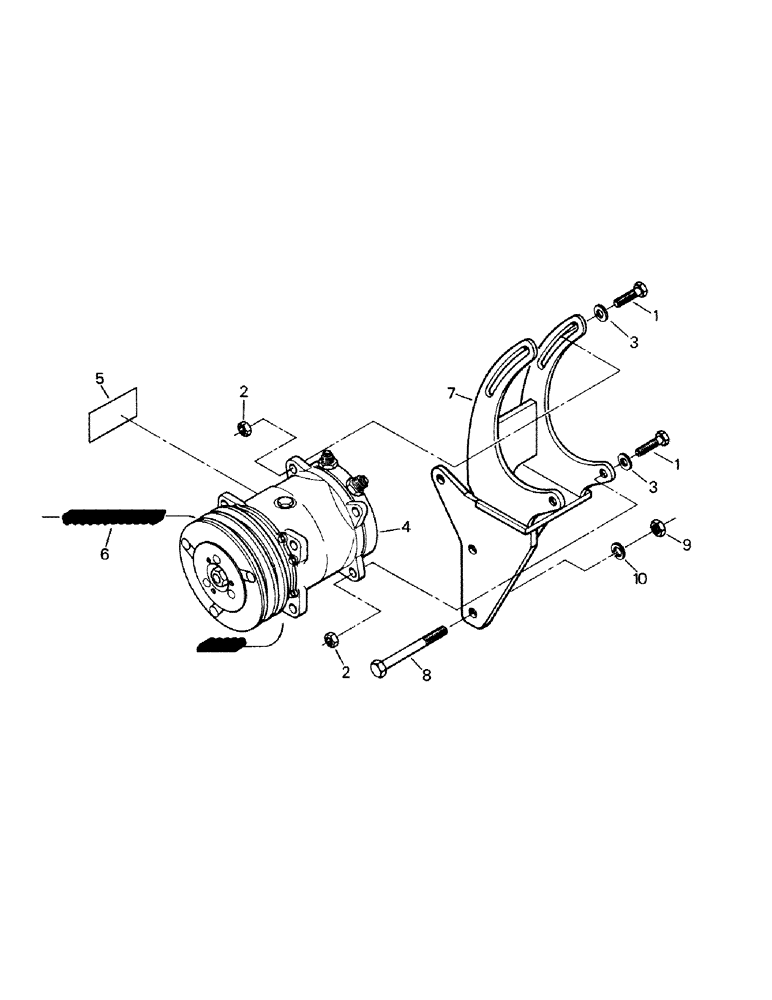

Запчасти Case IH KP-525 (03-08) - A/C COMPRESSOR ASSEMBLY, A/C COMPRESSOR & MOUNTING (03) - Climate Control

1

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew (metric)

4шт.

2

19-455

NUT

(metric)

4шт.

3

19-107

WASHER

4шт.

4

A/C Compressor Assy (see fig. 3-8)

1шт.

5

26-304

DECAL

1шт.

6

90-5774T1

V-BELT,0.53" W x 54.00" L

Compressor 0.53" W x 54.00" L

1шт.

7

1-9402T2

ANCHOR

Compressor Mount

1шт.

8

456958

BOLT

Capscrew

3шт.

9

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

10

19-117

LOCK WASHER,3/8"

3/8"

3шт.

11

19-135

CABLE TIE

Ty Rap (not shown)

3шт.
