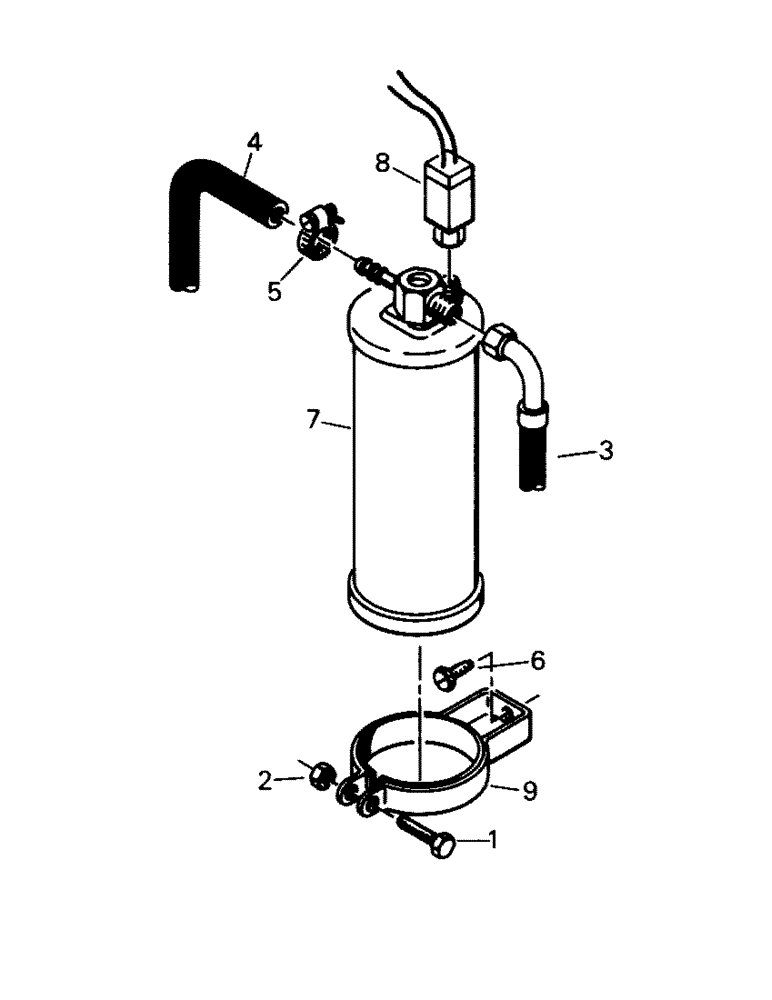

Запчасти Case IH KP-525 (03-07) - RECEIVER DRIER & MOUNTING (03) - Climate Control

1

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

2шт.

2

19-5381

NUT

2шт.

3

31-1356

HOSE ASSY.

Hose

1шт.

4

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A

1шт.

5

25-48

HOSE CLAMP

Clamp

1шт.

6

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

2шт.

7

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

8

25-1002

SWITCH

(Low Press.)

1шт.

9

1-8563

CLAMP BRACKET

Bracket

2шт.
