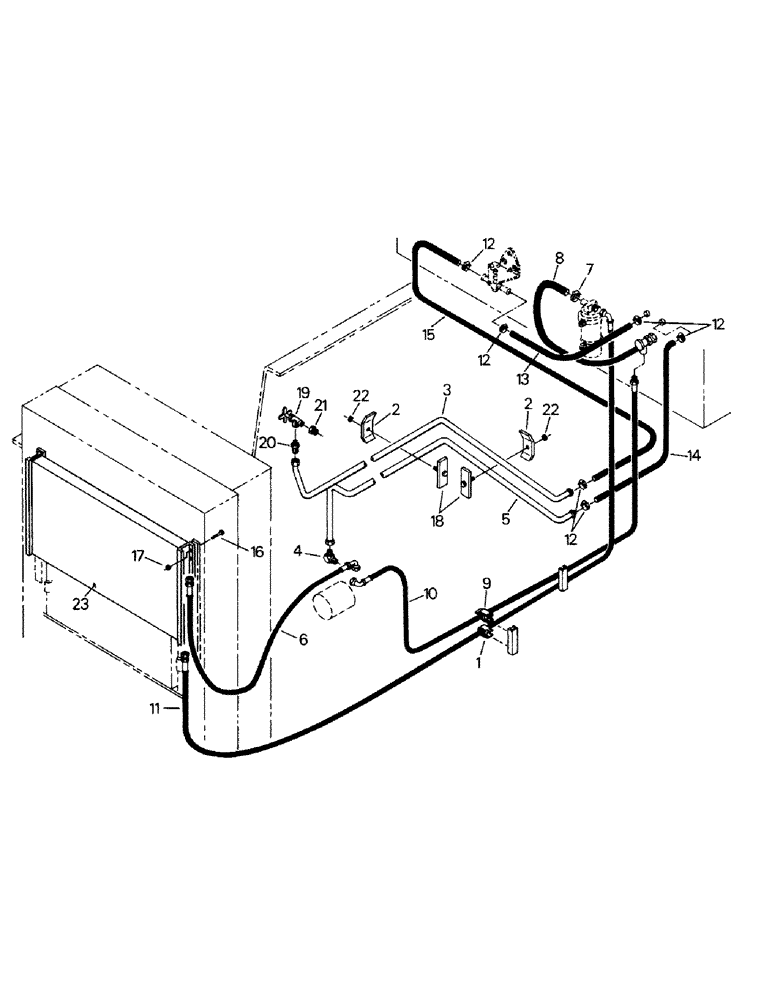

Запчасти Case IH KP-525 (03-06) - A/C & HEATER PLUMBING (03) - Climate Control

1

31-1212

CLAMP

Assy

2шт.

2

32-1000

CLAMP

2шт.

3

90-3945T1

TUBE,.625" OD

Heater Tube

1шт.

4

18-587

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

1шт.

5

90-3946T1

TUBE,.625" OD

Heater Tube

1шт.

6

25-380

HOSE

1шт.

7

25-48

HOSE CLAMP

Clamp

1шт.

8

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A

1шт.

9

31-1187

CLAMP

Assy

2шт.

10

31-1571

HOSE

1шт.

11

31-1356

HOSE ASSY.

Hose

1шт.

12

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

6шт.

13

25-332

HEATER HOSE

1шт.

14

31-1295

HOSE,0.63" ID x 46.00"

1шт.

15

31-1293

HOSE,0.63" ID x 55.00"

1шт.

16

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

Machine Screw

8шт.

17

19-481

SERRATED NUT

Kep Nut

8шт.

18

90-3948T1

Hanger Clamp

2шт.

19

31-1275

SHUT-OFF VALVE

Truck Valve

1шт.

20

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

Fitting

1шт.

21

31-13

BUSHING

Reducer

1шт.

22

280129

NUT,1/4"-20

2шт.

23

25-196

Condenser 3/8"-24, G5, Thk

1шт.

2-3370T1

CONDENSER

(interchangeable with P/N 25-196)

1шт.
