Запчасти Case IH KP-525 (03-01) - CAB A/C & HEATER PLUMBING (03) - Climate Control

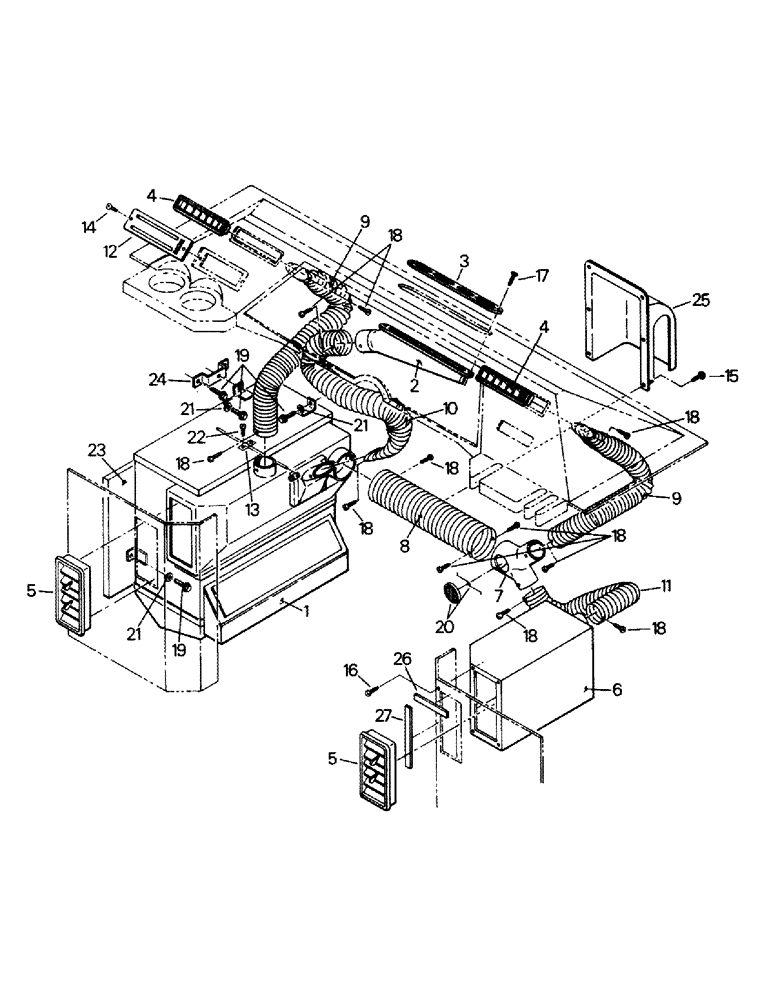

Схема запчастей Case IH KP-525 - (03-01) - CAB A/C & HEATER PLUMBING (03) - Climate Control
21
23
18
17
9
26
21
18
20
18
4
5
3
10
18
8
18
22
5
19
27
25
9
15
7
21
18
12
6
16
14
2
24
1
18
11
13
4
19
18

Артикул

Название

Примечание

Количество

1

Module Assy (see fig. 3-4 & 3-5)

1шт.

2

25-1012T1

DEFROSTER

Defrost Duct

1шт.

3

25-1013

GRILLE

Defrost Grille

1шт.

4

25-1010

NUT,5/8"-11, G5

Louver 5/8"-11, G5

2шт.

5

25-1011

VENT

Louver

2шт.

6

1-4626

TRANSMISSION

Transition Assy

1шт.

7

1-4625

ROD, CONNECTING

Hose Connector (incl Ref. 20)

1шт.

8

25-1015

HOSE

Air Hose

1шт.

9

25-1016T1

HOSE

Air Hose

2шт.

10

1-5398

HOSE,17.50"

1шт.

11

1-6660

HOSE,8.00"

Air 8.00"

1шт.

12

Control Panel (see fig. 3-2 & 3-3)

1шт.

13

31-1291

Clamp

1шт.

14

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Tapping Screw

2шт.

15

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

6шт.

16

19-1019

SCREW,Flg, #10 - 32 x 3/4"

Machine Screw

4шт.

17

9424881

SCREW,8" - 18 x 1"

Machine Screw

2шт.

18

19-5822

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

Tapping Screw

11шт.

19

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

5шт.

20

25-1071

GUARD

Louver

1шт.

21

19-467

LOCK WASHER,Ext Tooth, 1/4"

3шт.

22

9419328

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Tapping Screw

2шт.

23

1-8653

INSULATOR

Insulation

1шт.

24

1-5335

Bracket

1шт.

25

1-9433

COVER

Hose Cover

1шт.

26

60-3964T1

Seal

4шт.

27

60-3965T1

Seal

4шт.

Выбрано товаров: 27
