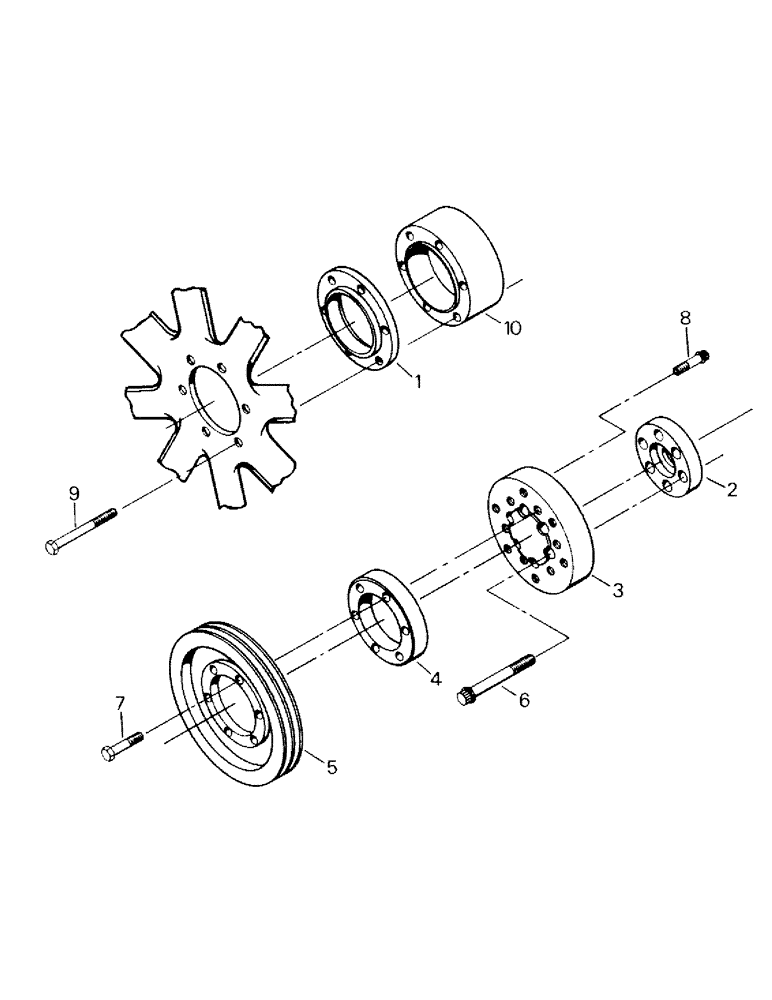

Запчасти Case IH KP-525 (10-03) - ACCESSORY DRIVE PULLEYS Options & Miscellaneous

35-1165

PULLEY

Accessory Drive Pulley Kit, Includes: Ref. 3 - 9

1шт.

1-9779

FAN

Spacer

1шт.

1-9780

ADAPTER

Pulley Adapter

1шт.

3

1-9781

ADAPTER

Front PTO Adapter

1шт.

4

1-2819

SPACER

Pulley Adapter

1шт.

5

1-2817

PULLEY

Crankshaft Pulley

1шт.

6

19-5579

SCREW,12 Pt Flg, 3/4" - 10 x 4", Gr 8

12 Pt Capscrew

6шт.

7

19-792

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Capscrew

6шт.

8

19-5580

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

12 Pt Capscrew

6шт.

9

442734

CAPSCREW,1/2" - 13 x 4", Gr 8

6шт.

10

47-4330

SPACER

1шт.
