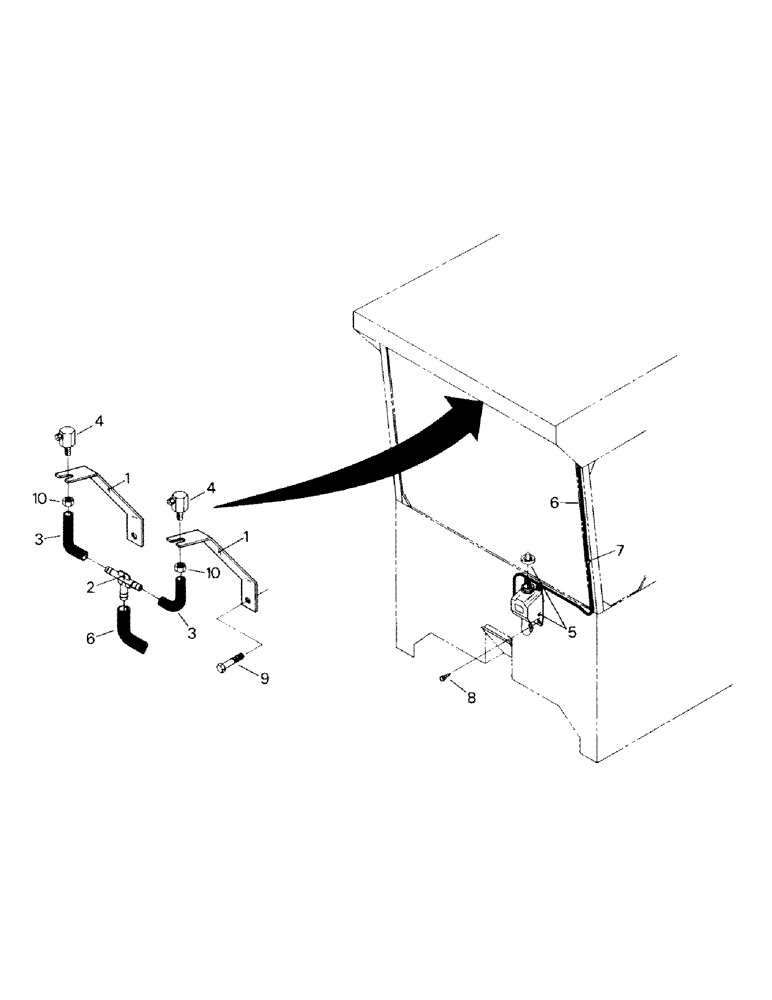

Запчасти Case IH KP-525 (10-01) - WINDOW WASHER Options & Miscellaneous

1

4-1002

BRACKET

Nozzle Bracket

2шт.

2

1-1344

KIT

Tee

1шт.

3

31-1194

WASHER

Hose

2шт.

4

1-1345

KIT

Nozzle Kit (incl Refs. 2 & 10)

1шт.

5

1-1346

RESERVOIR ASSY.

Container

1шт.

6

31-1195

TUBE,94" Length

Hose

1шт.

7

1-2135

CLIP

11шт.

8

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

9

19-1048

Capscrew Hex, 1/4"-28 x 1 1/2", G5

2шт.

10

19-236

JAM NUT,5/16" - 24, Gr 5

Jam Nut

2шт.

11

1-2172

FLUID

Window Washer Fluid (1qt) (not shown)

1шт.
