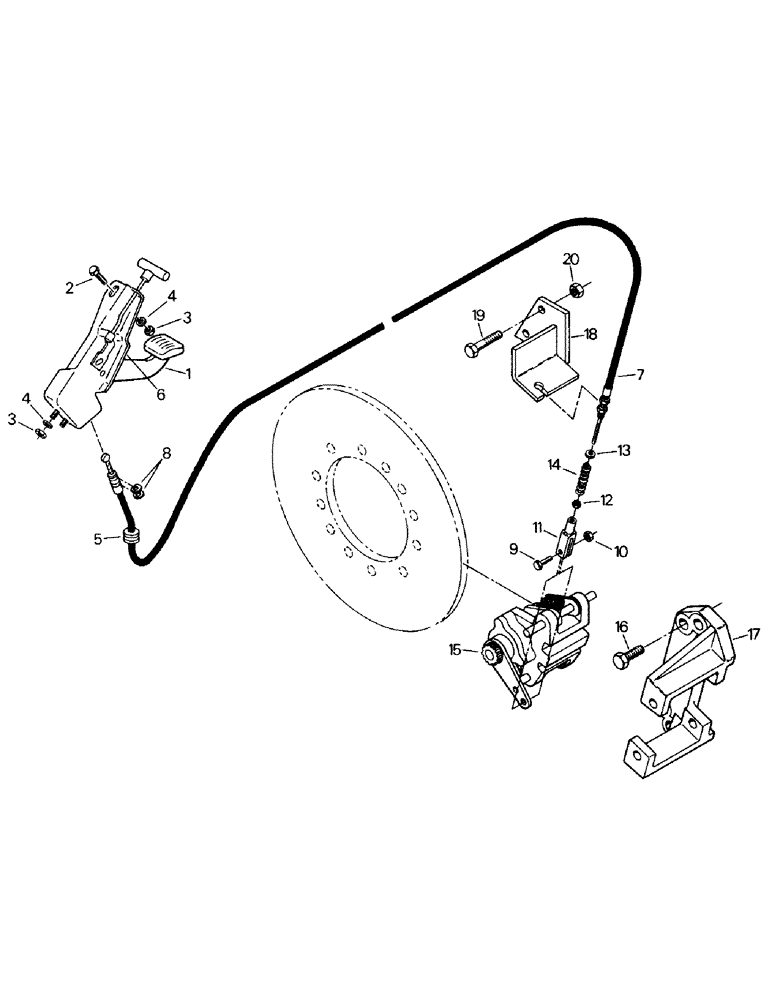

Запчасти Case IH KP-525 (05-03) - PARK BRAKE & MOUNTING (5.1) - BRAKES

1

60-2225T2

BRAKE

Park Brake Pedal

1шт.

2

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

1шт.

3

19-508

LOCK NUT

Lock Nut

3шт.

4

19-700

WASHER,5/16"

3шт.

5

1-1051

GROMMET

1шт.

6

20-1463T1

SWITCH

Assy

1шт.

7

60-3295T2

CABLE

Brake Cable

1шт.

8

19-5867

RING, SNAP

Retaining Ring

2шт.

9

19-652

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Capscrew

1шт.

10

19-341

LOCK NUT,3/8" - 16, GB

1шт.

11

19-139

YOKE

Clevis

1шт.

12

19-295

NUT,Jam, 3/8" - 16, Gr 5

Jam Nut

1шт.

13

19-224

WASHER,3/8", SAE

1шт.

14

33-169

SPRING

1шт.

15

Park Brake Caliper Assy (see fig. 5-4)

1шт.

16

223449

BOLT (SPREADER),Hex, 3/4" - 10 x 1 3/4", Gr 8

Capscrew

4шт.

17

90-4068T1

MOUNTING PARTS

Brake Mount

1шт.

18

90-2935T2

Cable Mount

1шт.

19

19-6151

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

Capscrew

2шт.

20

19-83

NUT,5/8"-11, G5

2шт.

21

1-1055

SEALANT

RTV Sealant (not shown)

1шт.
